Fiamma F45 Eagle Motorhome Automatic Electric Awning

£1536.37 - £1870.89 (inc VAT)

BRAND : Fiamma

View delivery options

View description

Loading shipping details...

Add to Wishlist

Product Description

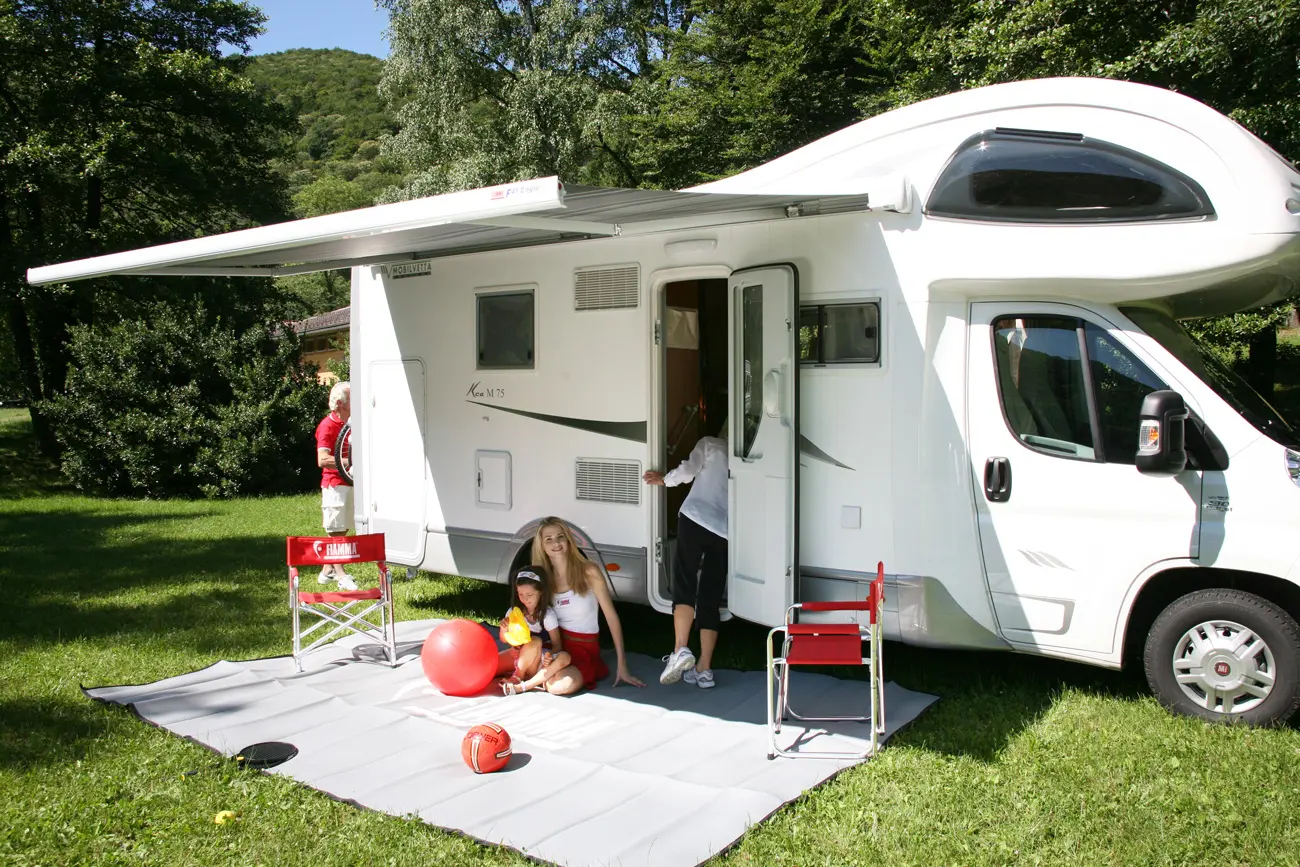

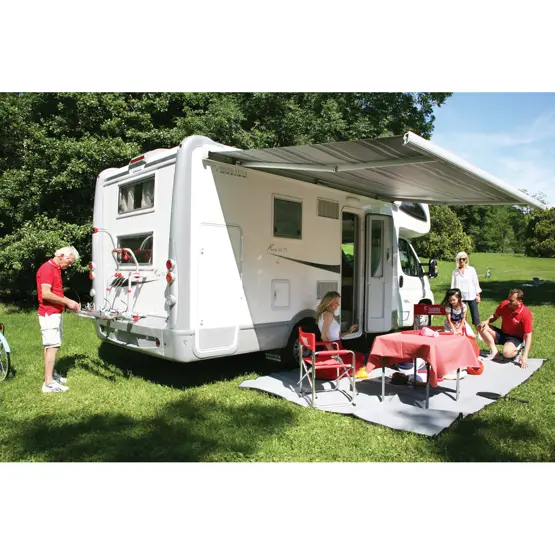

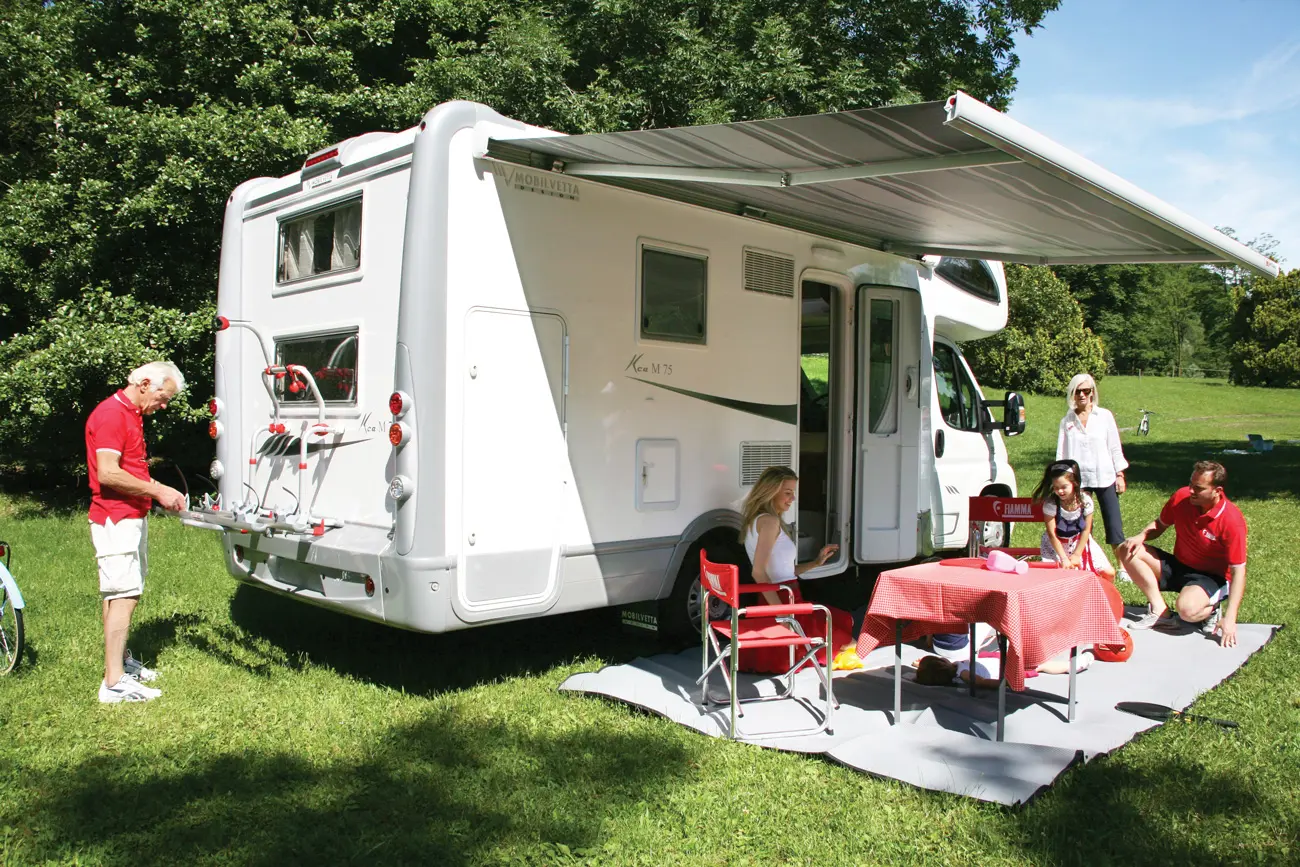

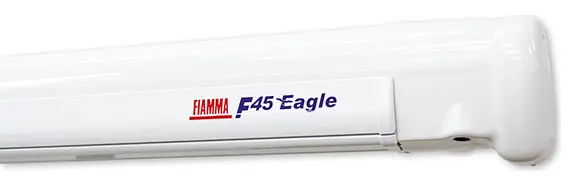

The Fiamma F45eagle is a 12V automatic, legless wall mounted awning designed for caravans and motorhomes that need quick shade without support legs in the way. Housed in a Polar White aluminium case with Royal Grey fabric, it projects 250 cm out from the vehicle to create a clean, open living space along the side of your van. It is ideal for tourers who want push button operation, a sleek look and strong self supporting arms that keep the ground clear for furniture and easy access.

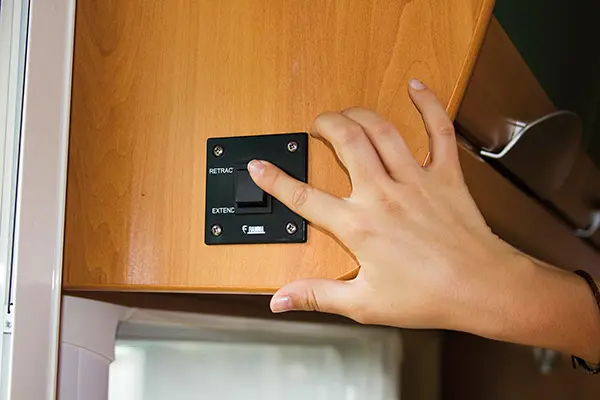

A wall mounted switch controls the F45eagle’s 12V motor so you can open, close or stop the awning at any point with a simple press instead of using a manual winder. The integrated Wind Detective wind sensor monitors gusts and automatically retracts the canopy if strong wind is detected, helping to reduce the risk of damage when the weather turns while you are busy elsewhere. The telescopic arms are reinforced with Fiamma’s duralumin Double Block system, which provides the extra strength needed for a leg free design and keeps the setup feeling solid on the wall.

The F45eagle comes in lengths from around 366 to 466 cm with a 250 cm extension, giving shade areas from roughly 8.3 m² up to about 11 m² depending on size. The pitch is set at 10 degrees from the factory but is adjustable between 5 and 17 degrees to suit your vehicle height and help water run off correctly. Arms are pre routed for optional LED kits and each awning is supplied with full length aluminium brackets, spacers and internal counter brackets for a secure through wall installation, although the correct vehicle specific brackets must still be selected.

Selecting your Awning

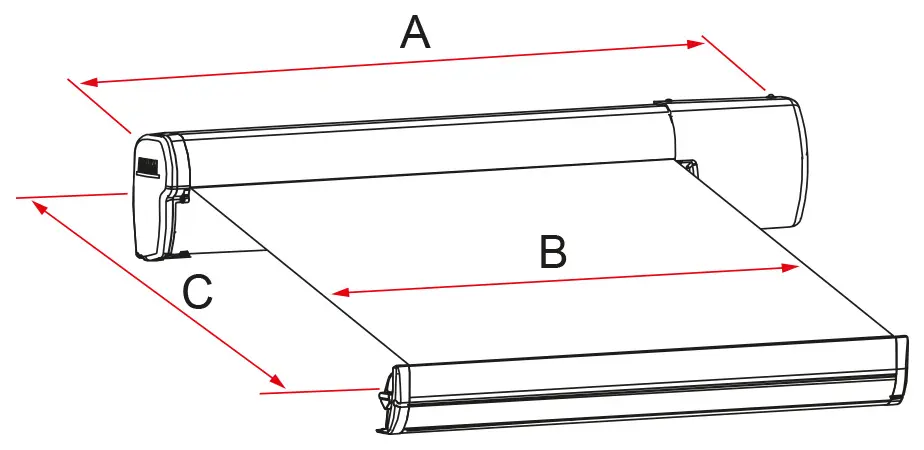

Description	F45 Eagle 350 Polar White	F45 Eagle 400 Polar White	F45 Eagle 450 Polar White
Awning length A	366 cm	416 cm	466 cm
Canopy length B	335 cm	385 cm	435 cm
Extension C	250 cm	250 cm	250 cm
Shade surface	8.3 m²	9.6 m²	11 m²
Weight	33.5 kg	36.5 kg	39.5 kg

Fiamma F45 Eagle Motorhome Automatic Electric Awning Features

12V wall switch operation for fast electric opening and closing.
Wind Detective sensor auto retracts awning in strong winds.
Legless self supporting arms with duralumin Double Block.
Adjustable 5–17° pitch to match vehicle height and rain run off.
Pre wired arms ready for optional LED lighting accessories.

Specifications

Case and fabric : Polar White case with Royal Grey vinyl canopy.
Lengths available : Approx 366–466 cm wall length options.
Projection & shade : 250 cm extension, up to about 11 m² cover.
Weight range : Around 33.5–39.5 kg depending on model size.
Power and control : 12V motor with wall switch and manual backup.

Frequently Asked Questions

What type of vehicles suit the Fiamma F45eagle awning?

The F45eagle is designed for caravans and motorhomes with a strong, flat side wall where a full length bracket can be through bolted. The vehicle structure needs to support a legless, self supporting awning, so most owners check with a specialist or installer to confirm that the shell and roof line are suitable before ordering.

How does the 12V automatic operation work on the F45eagle?

A compact 12V motor sits inside the awning case and is controlled by a supplied wall mounted switch inside the vehicle. Pressing the switch extends or retracts the awning and you can stop it at any position, which makes it quick to set up shade at a service area or campsite without using a manual crank handle.

What does the Wind Detective sensor do on the F45eagle?

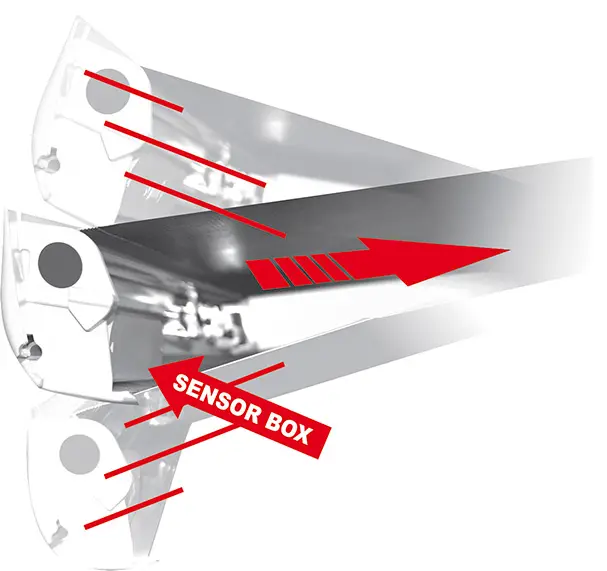

The Wind Detective system uses a sensor to monitor wind levels at the awning and sends a signal to the motor when gusts reach a preset level. The awning then retracts automatically to help prevent damage to the fabric, arms or vehicle wall, which is especially useful if wind builds while you are away from the pitch.

What sizes and coverage are available in the F45eagle range?

F45eagle models are typically offered around 366, 416 and 466 cm case lengths, all with a 250 cm projection. Shade surface starts at about 8.3 m² and increases to roughly 11 m² on the longest versions, giving enough cover for the habitation door and an outdoor seating or cooking area alongside the vehicle.

Is there a manual override if the motor or power fails?

Yes, the F45eagle includes a motor kit that allows manual closing if the 12V supply is interrupted or the motor stops working. This backup function lets you retract the awning before driving away or during changing weather even if the onboard electrical system is not available.
