Outwell Hillcrest Tarp

Name: Outwell Hillcrest Tarp
Brand: Outwell
SKU: 295839
Price: 119.99 GBP
Availability: InStock
Rating: 5 (1 reviews)

Product Ref: 295839
Outwell Code : 111572

£119.99(inc VAT) £150.00Product Ref: 295839
Outwell Code : 111572

(5/5) Read Review - Click Here (1 review)

View delivery optionsView product description

Delivery from £8.99
Loading stock details...

Only £237.48
Save £12.50

Add Bundle

Free Shipping

Seen this product cheaper? We will do our best to match it!

Click Here

Discount Bundles Available

Product Description

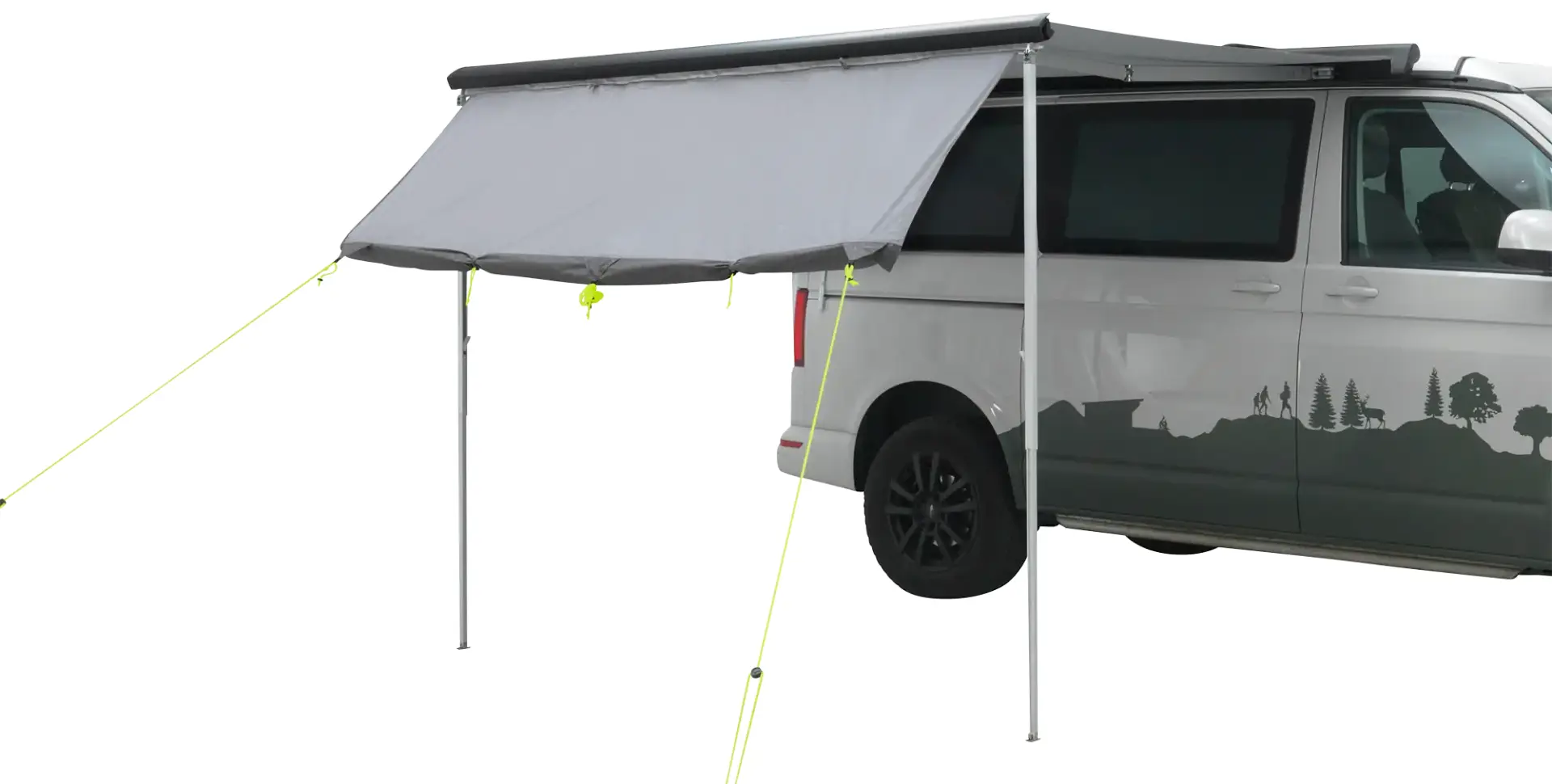

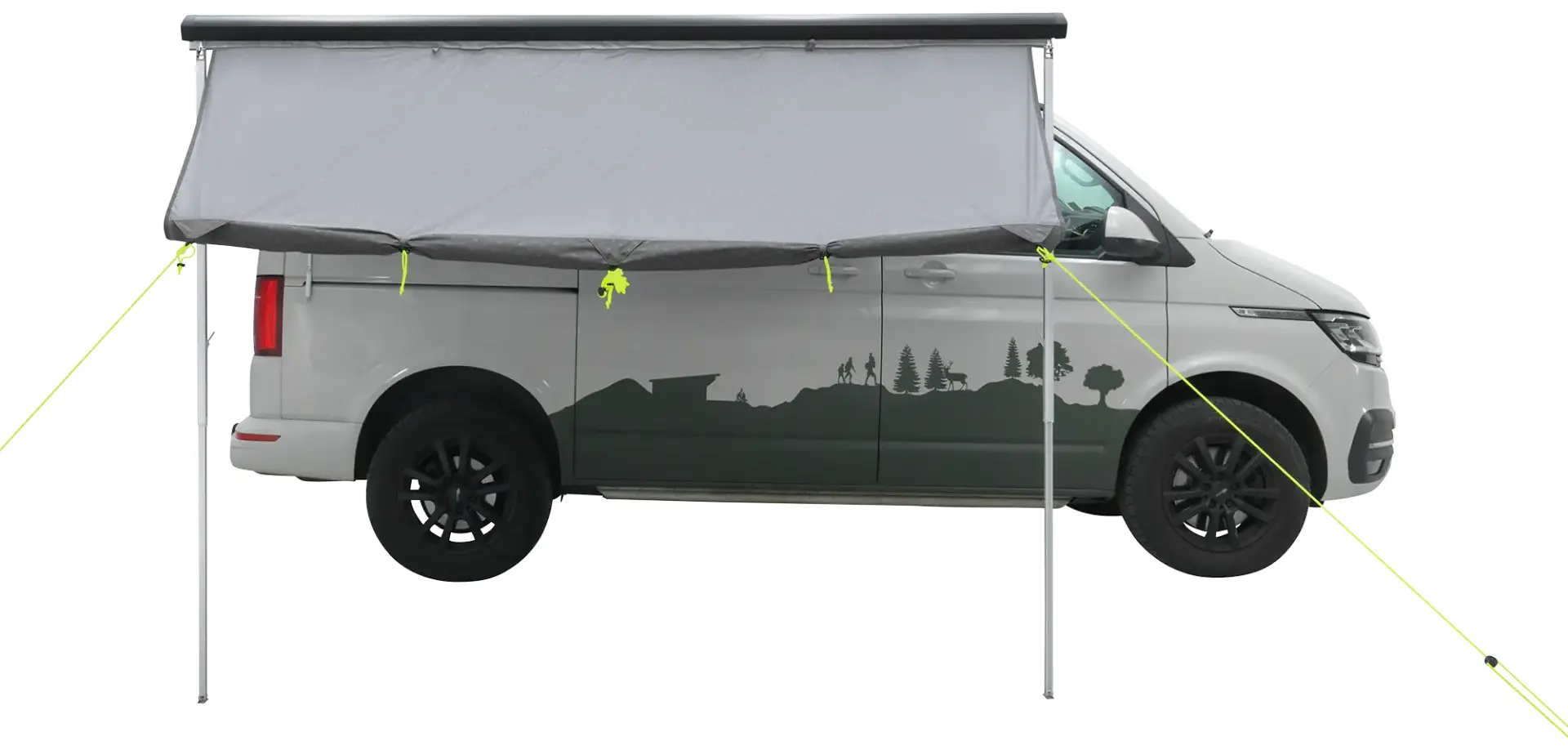

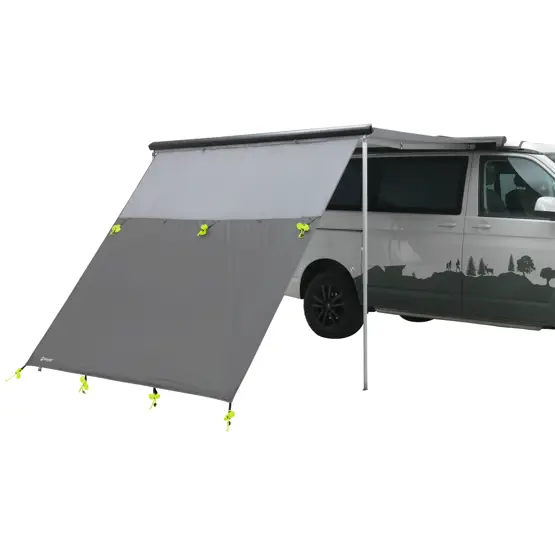

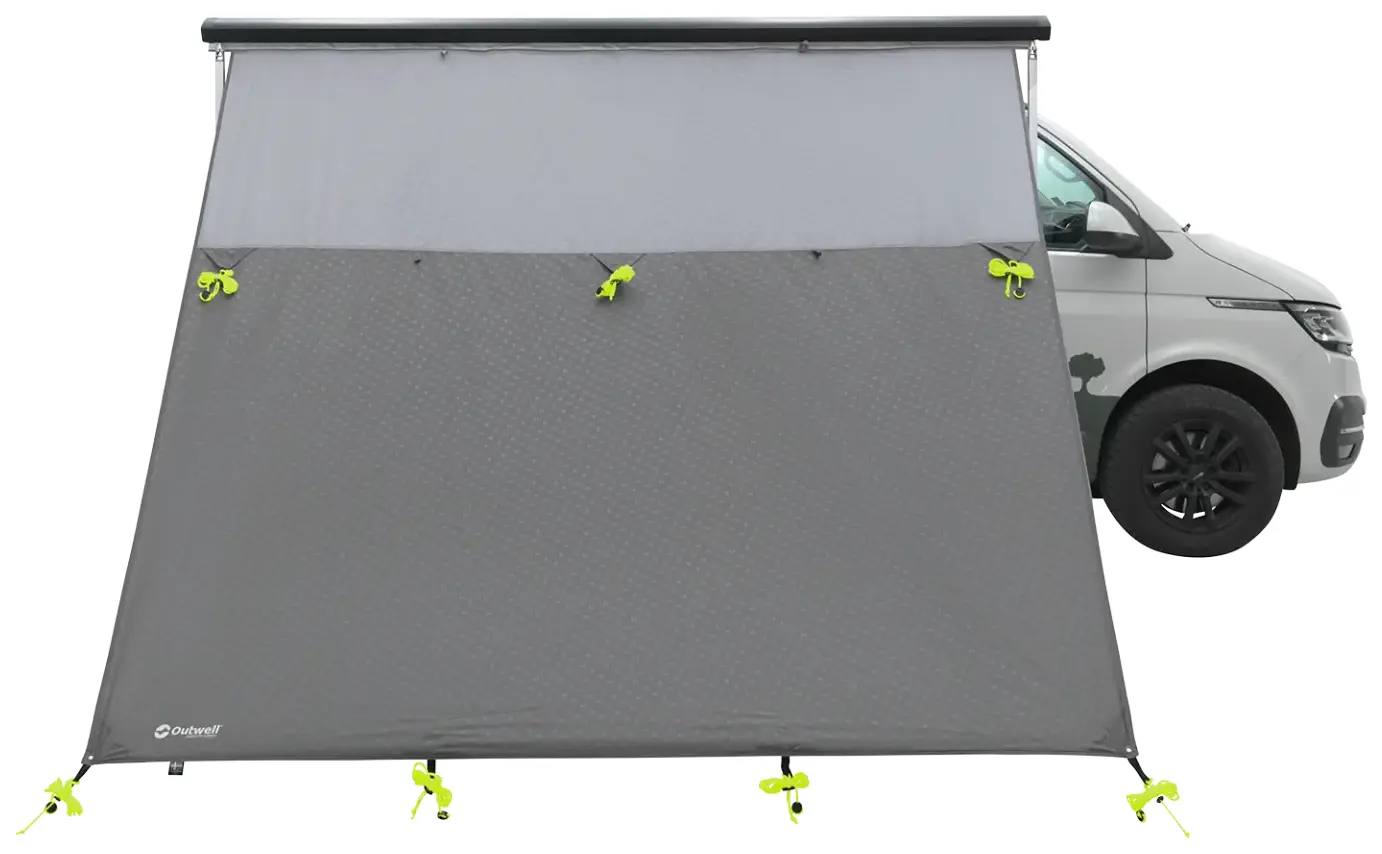

The Outwell Hillcrest Tarp fixes directly to your wind-out awning beading channel or vehicle rails, giving you an extra panel of weather protection that takes minutes to set up. You get 235cm of coverage along its attachment length, and the height adjusts from 155cm to 300cm depending on how you pitch it. The tarp works with both 7mm and 5mm beading sizes, which covers most standard wind-out awnings and rail systems on campervans and motorhomes. Two steel upright poles come included, so you can angle the tarp out as a canopy for shade or privacy. When you don't need full coverage, roll it partially up and secure it with the built-in toggles.

Outwell's used their Outtex 4000 Select polyester for this, which means 4000mm hydrostatic head protection and UPF 30+ sun blocking. It's PFAS-free waterproofing too, if that matters to you. The material handles typical British weather without issue, though in really heavy downpours you'll want to angle it properly so water runs off rather than pooling. At 2.1kg with a pack size of 44 x 33 x 6cm, it fits in the tailgate of a VW California or most storage compartments. The tarp works particularly well on the fridge side of your van because that extra shade stops your compressor working overtime in the sun, which saves battery power on off-grid trips.

Most people use this on the door side for privacy when camping in busy sites, but it's genuinely useful on either side of your setup. The steel poles (16mm diameter, 180cm length) feel solid enough for normal conditions, though you'll want decent pegging in wind. It comes with pegs and a repair kit in the carry bag. If you need more coverage, Outwell's Fallcrest Side Panel Set connects to this tarp to create a more enclosed space. The one-piece pitching method means you're not wrestling with multiple sections, and the guylines give you control over the angle and tension. It's a straightforward bit of kit that does what it's meant to without fuss.

Outwell Hillcrest Tarp Features

Attaches to wind-out and roll-out awnings or direct to vehicle
2 pcs upright poles included
Light weight and small pack size, fits perfectly in California tailgate
Provides shade, shelter and privacy
Angle from awning or vehicle can be adjusted
Can be partially or completely rolled up
Fast and easy to attach and detach

Specifications

Art. No. : 111572
Barcode - Product : 5709388159618
Type of tent : Canopy
Roof connection length : 235 cm
Attachment height : 155 - 300 cm

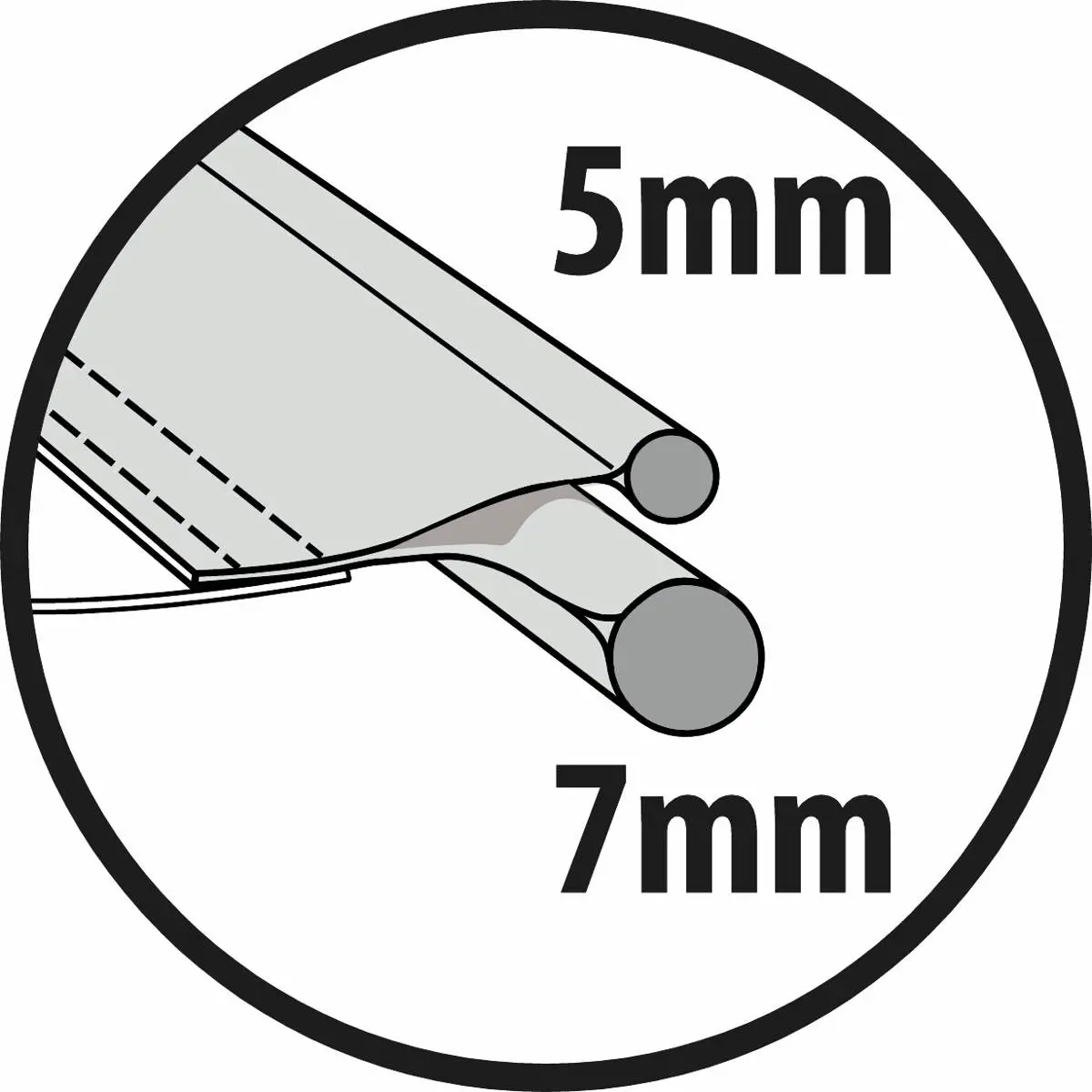

Bead thickness : 7 mm / 5 mm
Flysheet : Outtex® 4000 Select polyester
Caring Choice : PFAS Free water repellency
UV protection : UPF 30+
Hydrostatic Head : 4000 mm
Pitching method : In one
Weight : 2.1 kg
Textile fiber composition : Fly: 100% Polyester
Carrybag: 100% Polyester
Content : Pegs, repair kit, 2 pcs upright poles
Pack size : 44 x 33 x 6 cm
Poles : Steel, 16 mm, 180 cm, 2 pcs

Frequently Asked Questions

How do I attach the Outwell Hillcrest Tarp to my motorhome or campervan?

The Hillcrest Tarp features dual beading with 7mm and 5mm kador strips that slide into either the beading channel of wind-out awnings like Fiamma and Thule Omnistor, or directly into vehicle awning rails. The dual beading system makes it compatible with most motorhome and campervan awning rails without requiring adapters. Once inserted into the channel, secure the tarp using the supplied guylines and ground pegs. The attachment height is adjustable from 155cm to 300cm, accommodating different vehicle heights. Setup takes approximately 5 minutes once you understand the system. The kador strip slides in from one end of the channel, and you can adjust the angle of the tarp relative to your vehicle to optimise shade and rain protection based on sun position and wind direction.

What are the dimensions and will it fit my vehicle?

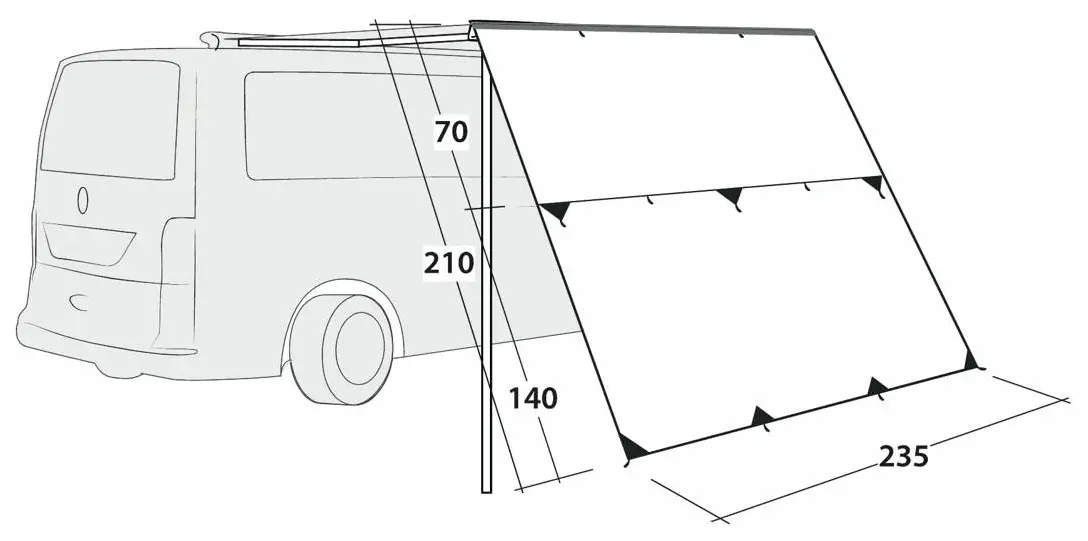

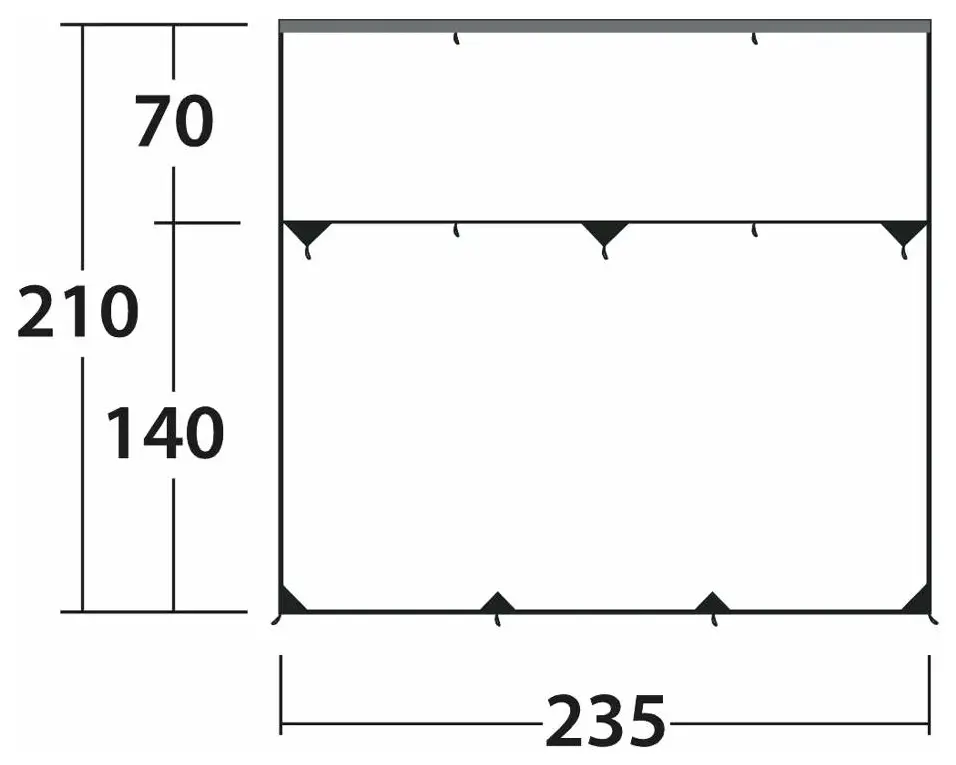

The tarp measures 235cm wide by 210cm deep when pitched, with a 235cm roof connection length. It works with campervans and motorhomes between 175cm and 200cm in height, though the adjustable attachment system extends from 155cm to 300cm to accommodate various vehicle sizes. The packed dimensions are 44cm x 33cm x 6cm with a weight of 2.1kg, making it compact enough to fit in a VW California tailgate or similar storage space. The dual bead thickness of 7mm and 5mm ensures compatibility with standard awning rails and wind-out awning channels. Before purchasing, measure your vehicle's awning rail or wind-out cassette channel to confirm compatibility, though the dual beading system covers most standard configurations found on European campervans and motorhomes.

What does the 4000mm hydrostatic head mean for waterproofing?

The 4000mm hydrostatic head rating indicates the Outtex 4000 Select polyester fabric can withstand water pressure equivalent to a 4-metre tall column of water before leaking. This rating provides good waterproofing for moderate to heavy rain and exceeds the standard requirement for tent and awning materials, which is typically 3000mm. The higher 4000mm rating offers better protection compared to the previous 3000mm version, particularly useful during prolonged exposure to wet conditions. The fabric includes UPF 30+ UV protection and uses PFAS-free water repellency, which is better for the environment than older chemical treatments. While 4000mm is suitable for typical camping conditions, the rating measures fabric performance in laboratory settings. Wind-driven rain and seam integrity affect real-world performance, though the tarp's taped seams help prevent water ingress at stitch points.

Can I use the Hillcrest Tarp without a wind-out awning?

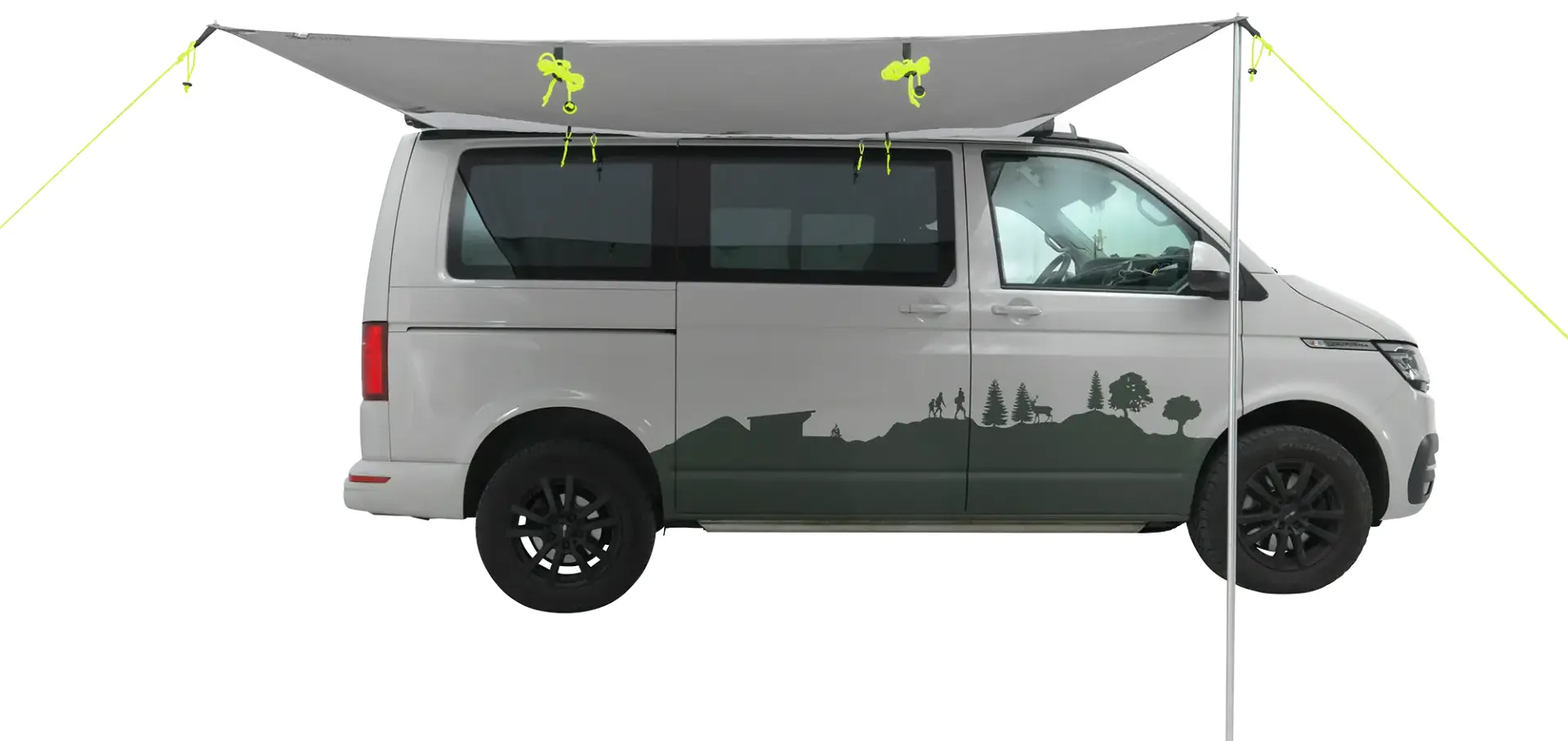

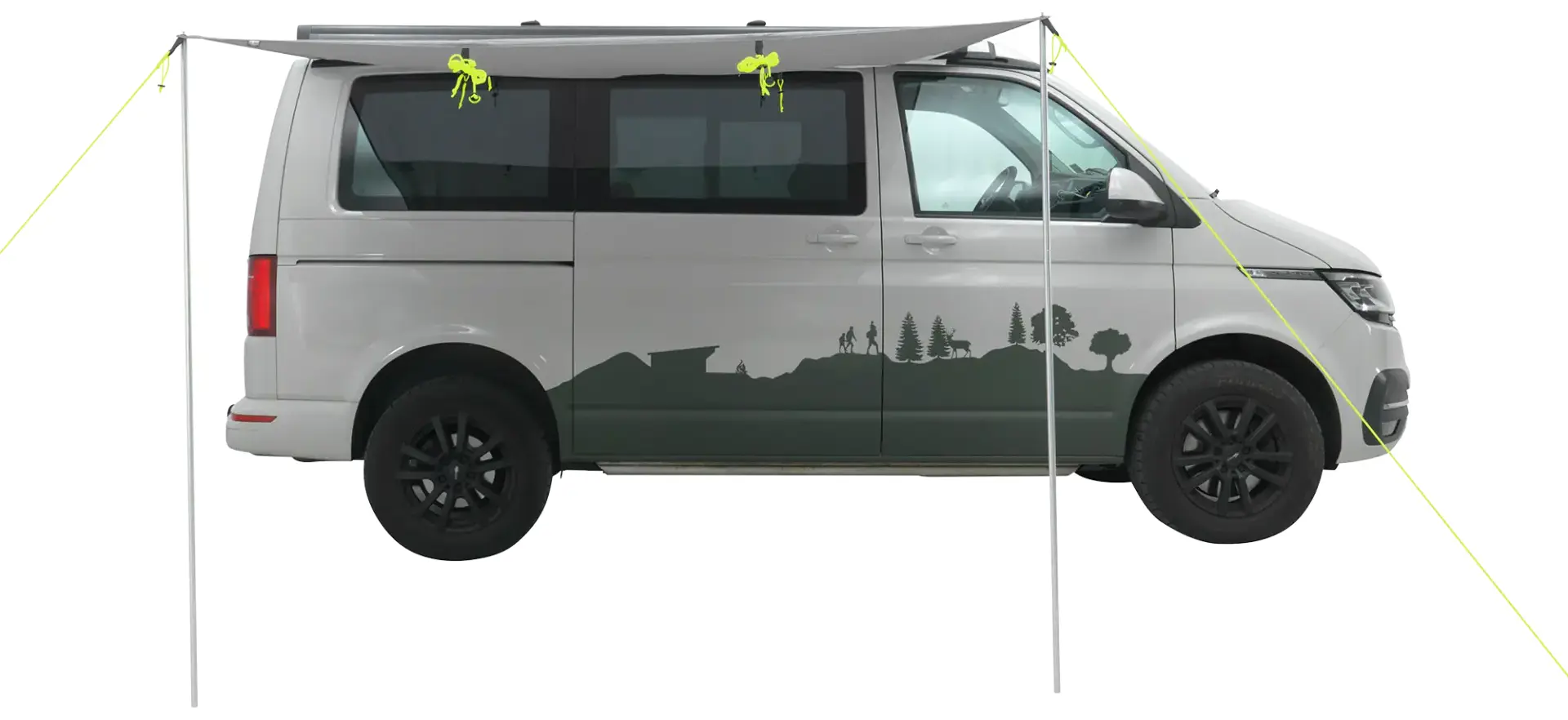

Yes, the Hillcrest Tarp attaches directly to vehicle awning rails fitted on the side of motorhomes and campervans, so you don't need a wind-out awning to use it. The dual beading slides into the C-channel awning rail that many vehicles have pre-installed. The tarp includes two steel upright poles measuring 180cm length and 16mm diameter which allow you to pitch it as a freestanding canopy using the sturdy eyelets positioned along the edge. When used with the poles, the tarp creates a sheltered area for cooking or sitting outside your vehicle door. Some users attach the tarp using figure-of-8 strips to the top of their awning rail rather than feeding it through the channel, which provides additional clearance above sliding doors and helps with rainwater runoff.

What is the Outwell Fallcrest Side Panel Set and do I need it?

The Fallcrest Side Panel Set is a separate accessory that zips onto the side stays of wind-out awnings to create enclosed sides for the Hillcrest Tarp or can be used independently. The side panels provide additional privacy, wind protection, and rain shelter by closing off the open sides of your awning space. They attach using heavy-duty Outwell zips and secure with guylines and ground pegs. The rear panel is cut shorter than the front panel to allow easy access to sliding doors. Both panels can be partially rolled up and secured with toggles to adjust ventilation and coverage based on weather conditions. The side panels are not essential if you only need basic overhead shade or rain protection, but they transform the setup into a more enclosed living space. The Fallcrest Side Panel Set weighs 1.1kg with pack dimensions of 45cm x 32cm x 5cm.

How do I use the tarp to shade my fridge and save battery?

Attach the tarp to the opposite side of your vehicle from the main living door, positioning it over the exterior wall where your fridge vents are located. Motorhome and campervan fridges typically vent through the side wall and work harder when exposed to direct sunlight, consuming more battery power to maintain temperature. The tarp creates shade over the fridge vent area, reducing the heat load and allowing the fridge to operate more efficiently. This is particularly effective during hot weather when the fridge would otherwise cycle frequently to counteract heat gain from sun exposure. The adjustable angle means you can position the tarp to block sun throughout the day as the angle changes. This simple shading technique can extend your off-grid camping time by conserving 12V battery power, especially important for wild camping where you're not connected to mains electricity.

Can I partially roll up the tarp and how does this work?

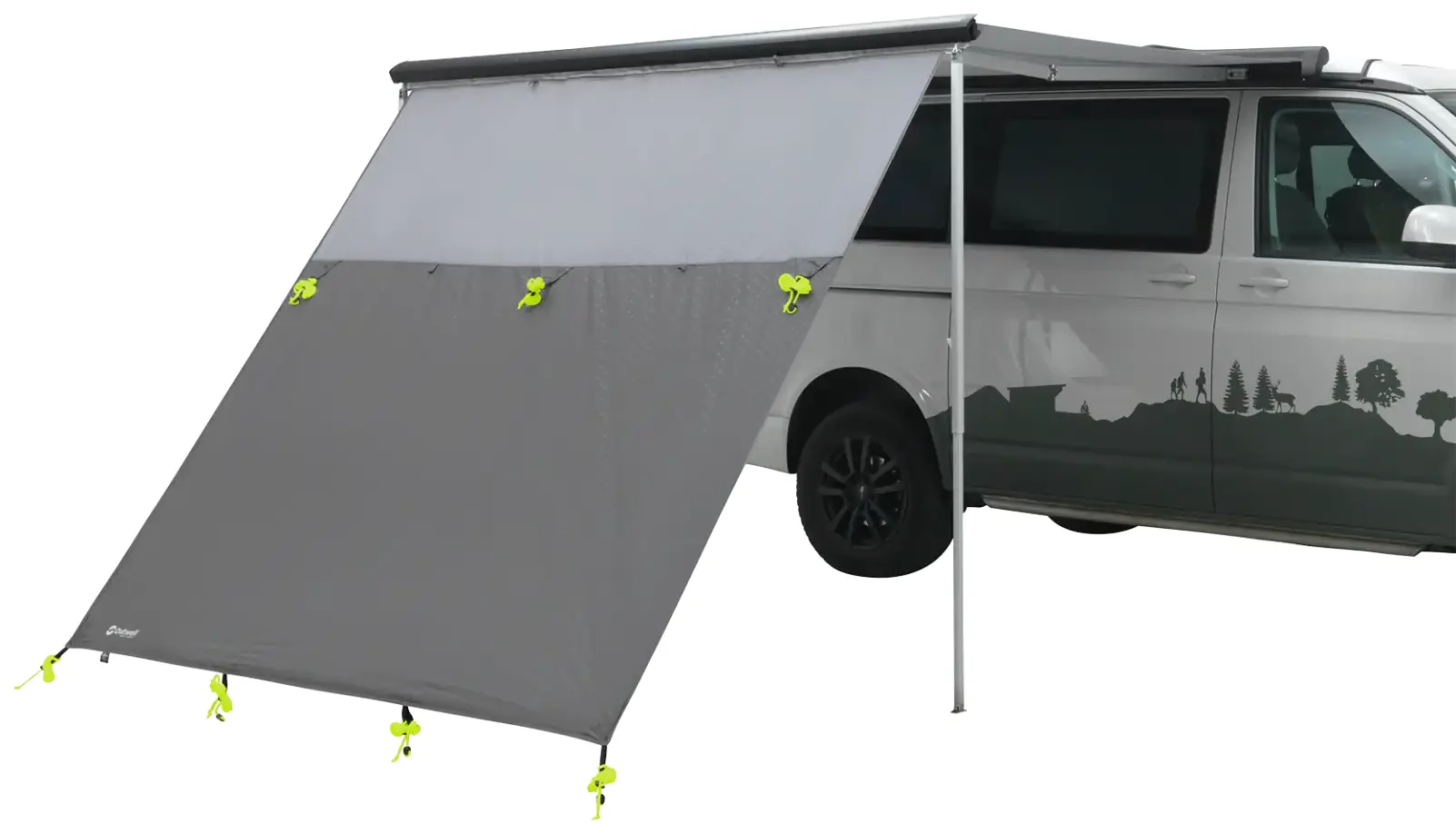

The tarp features toggles that secure it in a partially rolled position, allowing you to adjust coverage based on weather conditions and your needs. Roll the tarp up from the bottom edge and use the toggles to hold it in place at your desired height. This partial rolling is useful when you want some overhead protection but need better airflow underneath, or when weather conditions improve and you don't need full coverage. The system means you don't have to completely remove the tarp when conditions change throughout the day. You can keep the kador strip attached to your vehicle or awning rail and simply adjust the rolled portion. This flexibility makes the tarp more versatile than fixed canopies, letting you adapt quickly to changing sun position, wind direction, or rain patterns without full dismantling.

What is the Outwell Guyline Retainer System?

The Outwell Guyline Retainer System is a built-in feature that keeps guylines organised and prevents tangling when packing away the tarp. The system holds the guylines in place along the tarp's edge, stopping them from becoming a knotted mess in the carry bag. When setting up, the guylines are already attached and positioned correctly, saving time and frustration. During pack-down, the retainers keep lines neat rather than leaving you with a tangled bundle. This simple but effective design detail means you spend less time untangling ropes and more time enjoying your camping. The system works particularly well for quick overnight stops or when you're setting up and taking down frequently during a touring holiday. Without this feature, loose guylines in a bag typically knot together, which is annoying when you're trying to pitch quickly.

What does PFAS-free water repellency mean?

PFAS-free water repellency means the fabric's water-resistant treatment doesn't contain per- and polyfluoroalkyl substances, which are synthetic chemicals that persist in the environment and have been linked to health concerns. Traditional waterproofing treatments often used PFAS chemicals because they're extremely effective at repelling water and oil. The newer PFAS-free alternatives provide similar water repellency whilst being safer for the environment and human health. This aligns with Outwell's Caring Choice initiative to reduce environmental impact. The PFAS-free treatment works alongside the polyurethane coating to make water bead up and roll off the fabric surface rather than soaking in. Performance is comparable to older PFAS treatments for typical camping conditions. As outdoor industry regulations tighten around harmful chemicals, PFAS-free products represent the current best practice for environmentally responsible manufacturing.

EAN-13 : 5709388159618

Seen this product cheaper? We will do our best to match it!

Click Here

Reviews

1 Customer Review on Outwell Hillcrest Tarp

Good Shade

by Neal (23 Jul 2024)

(5/5)

Fits easy and with different configurations gives you the protection and privacy you want.
