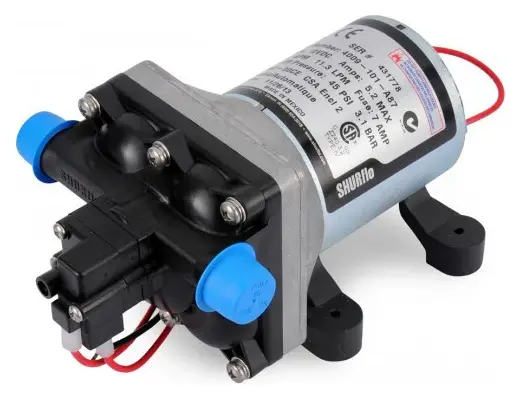

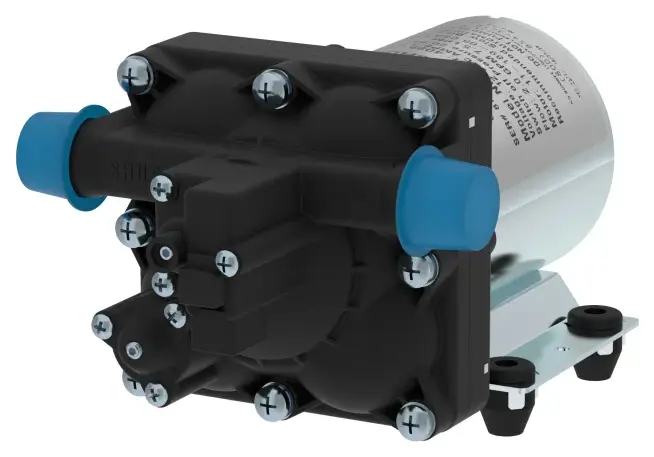

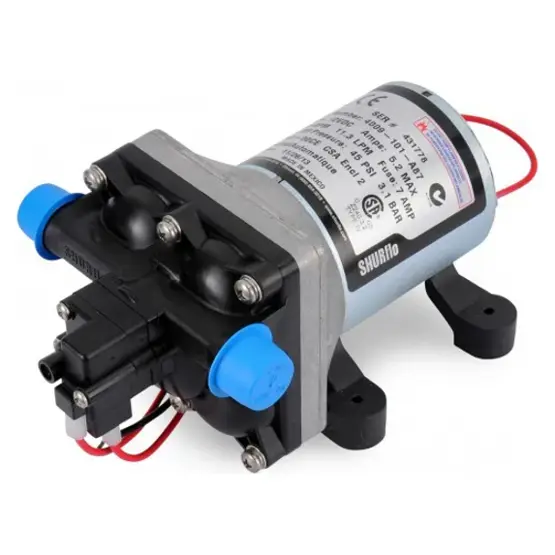

The SHURFLO 12V 7.6L pump is a fresh water diaphragm pump built for caravan, motorhome and campervan owners who need reliable on-demand water pressure at campsites or whilst boondocking. It's the ideal choice for smaller setups with one or two water outlets, like showers or kitchen sinks, where you don't want the complexity of mains-fed systems. The 4-chamber diaphragm design delivers smooth, consistent water flow without the irritating pulsing you get from cheaper single-chamber pumps, and it runs remarkably quiet compared to older models. It self-primes up to 1.82 metres (20 PSI) or 2.70 metres (30 PSI), so you can mount it higher than your water tank without worrying about losing prime, and it'll run dry if the tank empties without suffering damage.
Installation couldn't be simpler. The pump connects via standard 1/2 inch push-fit hose connections, which means no thread tape, no sealant, and no risk of grit getting inside the pump mechanism and causing failure. The fully adjustable sealed pressure switch cuts off at 20/30 PSI, preventing rapid cycling and unnecessary battery drain. You get ignition protection and thermal overload safety built in, plus it carries full European CE certification and KTW-BWGL approval for drinking water, so you know your water stays safe. At 1.8kg and compact dimensions of 208mm length by 124mm width by 104mm height, it slots into tight spaces under cupboards or behind cabinetry where larger pumps just won't fit.
The only real limitation worth mentioning is that at 7.6 litres per minute, this isn't powerful enough for simultaneous use of multiple outlets. If your van has three or more taps you're likely to find the flow drops to a trickle when two are running together, which is why this pump suits compact conversions best. The 5-amp fuse gives you straightforward electrical protection, and a heavy-duty sealed motor means it handles the vibration and moisture of mobile living without corroding. You're covered by a 3-year warranty, backed by SHURFLO's reputation for manufacturing pumps that keep on working season after season.
Shurflo RV 12v 7.6l Pump Features
- 4-chamber diaphragm design for smooth, pulsation-free water flow
- Self-primes up to 1.82 metres (20 PSI) or 2.70 metres (30 PSI) with run-dry capability
- Compact 208 x 124 x 104mm size fits tight installation spaces
- Adjustable sealed pressure switch with ignition protection
- KTW-BWGL certified safe for drinking water systems
Shurflo RV 12v 7.6l Pump Features
- Voltage : 12V DC
- Flow Rate : 7.6 LPM (2.0 GPM)
- Max Pressure : 20/30 PSI
- Max Current : 3.5A (5A fuse recommended)
- Dimensions : 208mm L x 124mm W x 104mm H
- Weight : 1.8kg

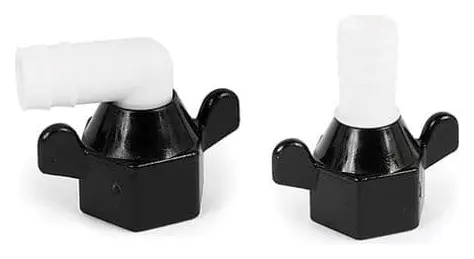

- Connections : 1/2" push-fit (13mm ID hose) male threads
- Max Recommended Head : 1.8 metres
Frequently Asked Questions
The SHURFLO 12V 7.6L pump delivers 7.6 litres per minute (2.0 GPM) at its maximum flow rate. This makes it suitable for caravans, campervans and motorhomes with one or two water outlets. For systems with three or more simultaneous taps, a higher flow rate pump would be more appropriate to maintain adequate pressure.
Yes, the SHURFLO 12V 7.6L pump is designed with run-dry capability, meaning it will not suffer damage if your water tank becomes empty while the pump is operating. This makes it ideal for boondocking and off-grid camping where immediate tank refilling isn't possible. However, you should install a low-level water tank sensor to avoid unnecessary pump operation when the tank is empty.
The SHURFLO 12V 7.6L pump self-primes up to up to 1.82 metres/6ft (20 PSI) or 2.70 metres/8.8ft (30 PSI), allowing you to mount the pump up to this height above your water tank without requiring manual priming or a separate pump intake valve. This flexibility helps with compact motorhome layouts where under-floor water tank mounting is more practical than dashboard-level installation.
The SHURFLO 12V 7.6L pump operates on 12V DC and draws a maximum current of 3.5 amps, with a 5-amp fuse recommended. This modest power draw makes it ideal for caravan and motorhome battery systems, consuming less power than larger diaphragm pumps whilst maintaining reliable operation for both mains-connected and off-grid power scenarios.
Yes, the SHURFLO 12V 7.6L pump carries KTW-BWGL certification for drinking water compliance, which means all materials that contact water meet strict European safety standards for potable water. The pump features polypropylene housings, EPDM valves, seals and a santoprene diaphragm, ensuring your caravan water supply remains safe for drinking and cooking without contamination from pump components.
Yes, the SHURFLO 40x9 series pumps, including this 12V 7.6L model, are designed to fit the same installation space as the previous 2095 series pumps. This makes retrofitting straightforward if you are upgrading an older caravan or motorhome water system, with no need for chassis modifications or extensive plumbing adjustments.
The SHURFLO 12V 7.6L pump shuts off at 20 PSI (1.4 bar) or 30 PSI (2.0 bar), controlled by an adjustable sealed pressure switch with a tolerance of plus or minus 2 PSI. This prevents rapid pump cycling that would drain your caravan battery unnecessarily whilst maintaining consistent water pressure throughout your motorhome plumbing system during normal use.
