CBE PC380 Control Panel Wildax

£289.99(inc VAT) £347.99
View delivery optionsView product description
  Product Description

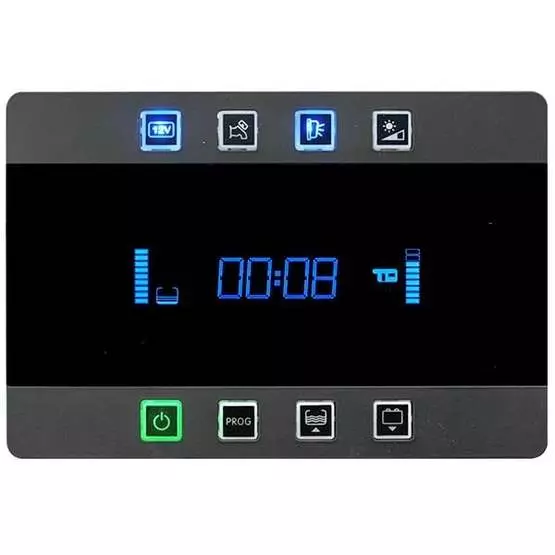

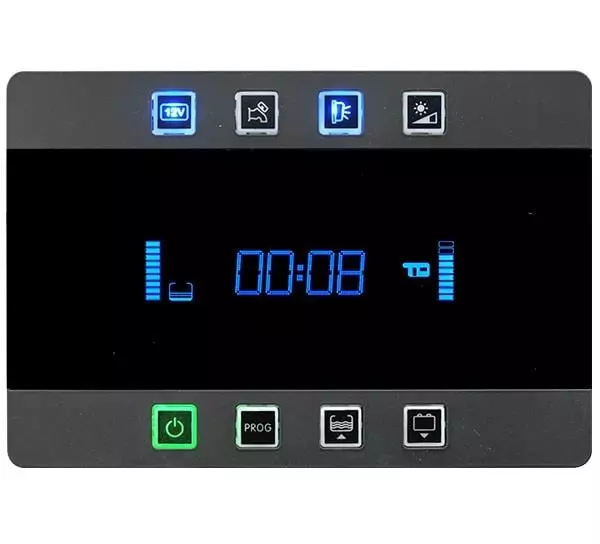

The CBE PC380 Control Panel Wildax gives you comprehensive monitoring of your motorhome's electrical systems through a 4.8-inch 12-colour negative LCD screen. This microprocessor-controlled unit tracks both your vehicle and service batteries with accurate voltage readings displayed as numbers and graphics, whilst the digital clock keeps you on schedule. You'll monitor fresh water levels shown as percentages alongside visual indicators, receive grey water tank alerts before overflow becomes an issue, and check internal and external temperatures without stepping outside.

The integrated electronic battery separator handles split charging automatically, connecting your leisure battery to charge from the alternator when the engine runs and isolating them when stopped. This prevents your starter battery from draining whilst you're using lights, pumps, or other 12V equipment at camp. Ten 12V protection fuses safeguard your circuits, and the battery saver function cuts power at set voltages to protect your leisure battery from deep discharge damage. The panel manages 3-way fridge operation and monitors charging when you're connected to mains hookup.

Installation requires a cutout of 190x130mm, and this version works exclusively with UK vehicle configurations. The twilight sensor adjusts display brightness automatically as daylight fades, whilst you can manually control backlight levels through the settings menu. Software updates load via the USB port, keeping the system current without replacing hardware. One consideration: this panel works with lead-acid leisure batteries and standard alternators found in Euro 4 spec engines, not smart alternators in newer Euro 5 or 6 vehicles unless you bypass the split charge function and fit a separate DC-DC charger.

CBE PC380 Control Panel Wildax Features


  • 4.8" 12-colour negative LCD with twilight brightness adjustment
  • Dual battery monitoring with voltage readings and graphic displays
  • Fresh water percentage display and grey water tank alarm system
  • Electronic battery separator with automatic split charging control
  • Digital clock, temperature readings and USB software update port

Specifications
  • Display size : 4.8 inches, 12-colour negative LCD screen
  • Panel dimensions : 190mm x 130mm cutout required for installation
  • Protection : 10x 12V fused circuits for user equipment
  • Battery monitoring : Dual channel for vehicle and service batteries
  • Compatibility : UK vehicle configurations with lead-acid batteries

Frequently Asked Questions

What does the electronic battery separator do in the CBE PC380?
The electronic battery separator automatically connects your leisure battery to charge from the vehicle alternator when the engine runs, then isolates them when stopped. This split charging system prevents your starter battery from draining when using 12V equipment at camp, whilst ensuring both batteries charge during travel. The microprocessor monitors voltage levels and manages the connection without manual switching.
Will the PC380 Wildax work with lithium leisure batteries?
The PC380 system is designed for lead-acid leisure batteries and cannot be used with lithium batteries. The voltage sensing parameters and charging profiles are calibrated specifically for lead-acid chemistry. If you have lithium batteries or plan to upgrade, you need a different control system compatible with lithium battery management requirements.
Can I fit the PC380 in a vehicle with a smart alternator?
The PC380 voltage-sensing split charge works with standard alternators in Euro 4 spec engines or earlier. For vehicles with Euro 5 or Euro 6 smart alternators, the built-in split charging function needs disabling and you must fit a separate battery-to-battery DC-DC charger to charge your leisure battery effectively from the alternator. The control panel monitoring functions still work normally.
What does the battery saver function actually do?
The battery saver monitors your leisure battery voltage and automatically cuts power to connected circuits when voltage drops to a preset minimum level. This prevents deep discharge damage that shortens battery life. Lead-acid batteries particularly suffer when discharged below certain thresholds, so this function protects your investment by disconnecting loads before critical voltage is reached.
How do I update the software on the PC380 panel?
Software updates load through the USB port on the panel without needing to replace any hardware. You download the update file from CBE onto a USB drive, insert it into the panel port, and follow the on-screen instructions to install. This feature allows CBE to add improvements or fix bugs without requiring panel replacement, extending the useful life of the system.
Does the PC380 include water tank level sensors?
The panel displays fresh water tank levels as percentages with graphic indicators and provides grey water tank reserve alarms, but the actual tank sensors are not included with the control panel itself. You need to purchase fresh water level sensors separately if your vehicle does not already have them fitted. The panel connects to standard CBE tank sender units.
What size cutout do I need to fit the PC380 Wildax?
The panel requires a cutout measuring 190mm by 130mm for installation. This is the standard opening size for the PC380 range. Make sure you have adequate depth behind the mounting surface for the panel body and wiring connections. The panel mounts from the front with the display flush to the mounting surface.
How does the twilight sensor brightness adjustment work?
The twilight sensor detects ambient light levels and automatically dims the LCD display and button backlighting as it gets darker. This prevents the bright screen from being uncomfortable at night whilst camping. You can also manually adjust brightness levels through the settings menu and set different brightness values for daytime and night-time use to match your preferences.
