Fiamma Carry-Bike Caravan Universal

£289.99(inc VAT) £441.99
?
View delivery optionsView product description
  Product Description

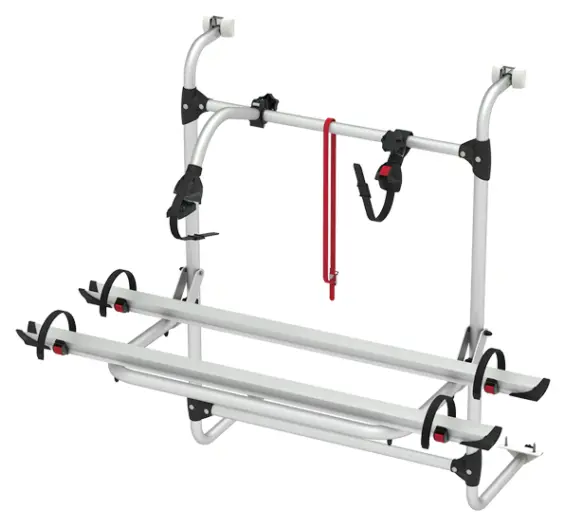

The Fiamma Carry-Bike Caravan Universal attaches directly to your caravan's rear wall frame, supporting up to two bikes with a 35kg maximum load. This bike carrier fits caravans from manufacturers like Bürstner and Chateau through self-tapping screw installation on upper and lower brackets. The telescopic aluminium rail adjusts from 100 to 180 cm, accommodating different caravan widths while maintaining secure bike storage during travel.

How does the Fiamma Carry-Bike Caravan Universal fit different caravan sizes?

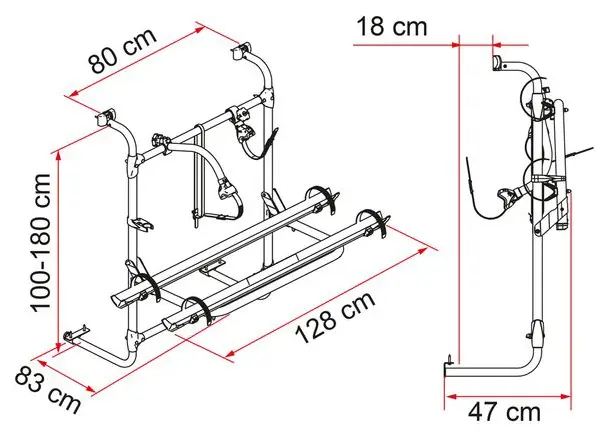

The carrier features a telescopic aluminium frame that adjusts from 100 to 180 cm in width, fitting various caravan models through flexible sizing. Upper and lower brackets mount using self-tapping screws to the caravan's reinforced rear wall frame, with the included Rail Quick Pro system providing adjustable positioning for different bike frame types and wheel sizes.

The updated model includes black plastic trim that replaces the previous red version, giving a modern appearance that suits contemporary caravan styling. Each carrier comes complete with Bike-Block Pro 1 and Pro 3 frame holders, Rail Quick Pro wheel supports, a security strap, and two mounting brackets. The Rail Quick Pro system locks wheels securely to the aluminium 6060 rail support, which combines lightweight construction with durability for long-term outdoor use.

Installation requires mounting to the caravan's rear wall at reinforced fixing points, with professional fitting recommended if you're unsure about your caravan's structural capacity. The carrier weighs 8.5kg unloaded, adding minimal weight before bikes are attached. When touring with bikes, remember they contribute to your caravan's payload allowance and affect weight distribution at the rear, which matters for towing stability and legal compliance.

Fiamma Carry-Bike Caravan Universal Features


Upper brackets: For attaching the bike carrier to the rear wall of your caravan

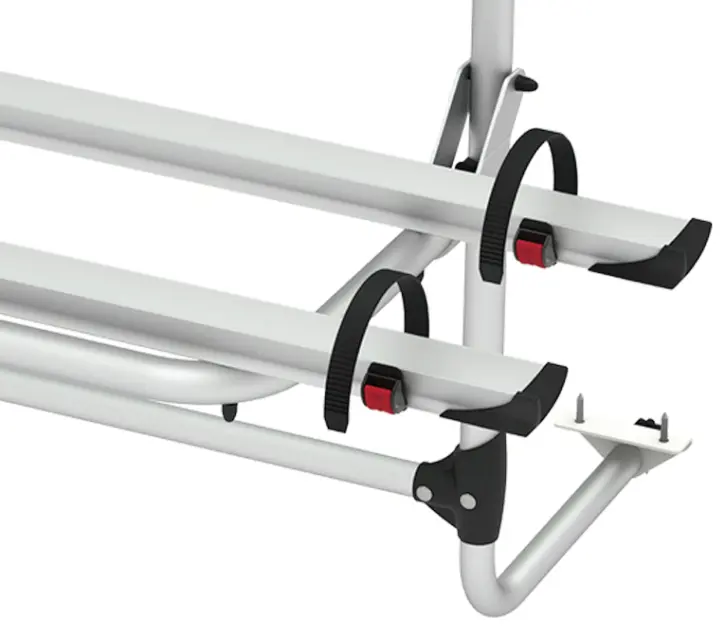

Rail Quick Pro: For quick and secure locking of the wheel to the rail

Rail support: Aluminium 6060 rail support light and resistant

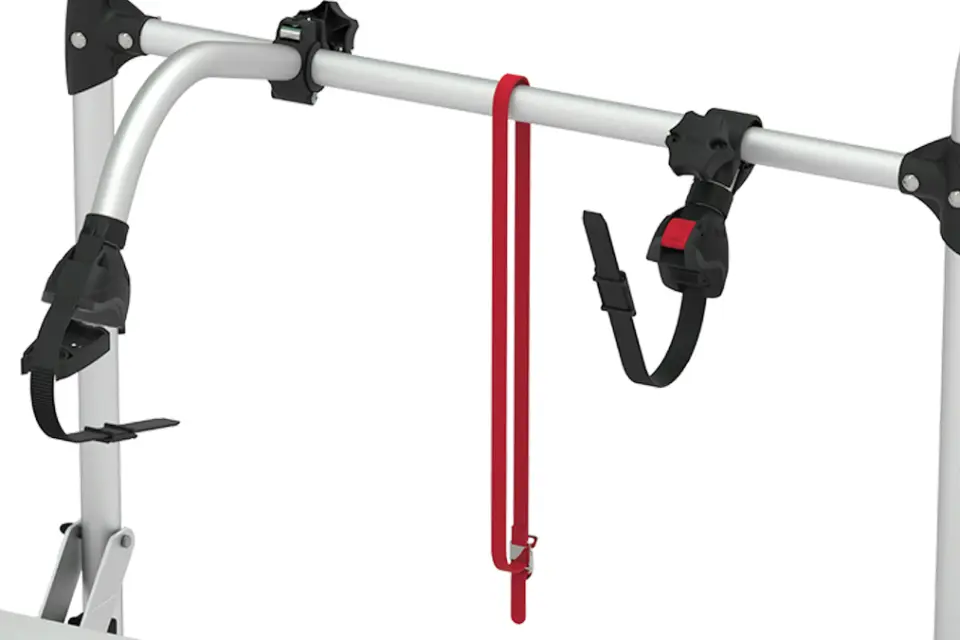

Bike Block: To securely lock the bike

Montage: On the rear wall of the caravan

Frequently Asked Questions

Does my caravan need existing fixing points for the Fiamma Carry-Bike Caravan Universal?
The Fiamma Carry-Bike Caravan Universal mounts directly to your caravan's reinforced rear wall frame using self-tapping screws through upper and lower brackets. Most caravans manufactured after 2015 have pre-installed fixing points as standard, whilst older models require assessment of the rear wall structure to confirm it supports the carrier's weight plus bikes. Professional fitting is recommended to verify your specific caravan has adequate reinforcement at the mounting points.
What bikes work with the Fiamma Carry-Bike Caravan Universal?
The carrier accommodates two bikes with a combined maximum weight of 35kg, including standard adult bikes, mountain bikes, hybrid bikes, and children's bikes. The Bike-Block Pro 1 and Pro 3 holders secure different frame sizes and shapes, whilst the Rail Quick Pro wheel supports adjust to fit varying wheel diameters. Electric bikes often exceed the 35kg limit when carrying two, so weigh your specific bikes before loading to stay within the rated capacity.
How do I adjust the telescopic frame on the Fiamma Carry-Bike Caravan Universal?
The telescopic aluminium frame extends from 100 to 180 cm to match your caravan's width. After mounting the upper and lower brackets to your caravan's rear wall, adjust the horizontal rail to your required width before tightening the securing mechanism. This adjustability accommodates narrow single-axle caravans through to wider twin-axle models, with the aluminium 6060 construction maintaining structural integrity across the full adjustment range.
Will the Fiamma bike carrier affect my caravan's towing stability?
Mounting bikes at the caravan's rear adds weight behind the axle, which affects payload distribution and towing dynamics. The carrier itself weighs 8.5kg, with bikes adding up to 35kg, totalling 43.5kg maximum at the rear extremity. This weight counts against your caravan's Maximum Technically Permissible Laden Mass and shifts the centre of gravity rearward. Always verify your remaining payload allowance and consider how rear-mounted weight influences handling characteristics, particularly during braking and cornering.
What security features does the Fiamma Carry-Bike Caravan Universal include?
The carrier includes a security strap as standard to deter opportunistic theft during stops. The Bike-Block Pro holders grip bike frames securely, whilst the Rail Quick Pro system locks wheels in position. For extended security when parked at campsites or stopovers, supplement the included strap with aftermarket locks through wheel spokes and frame tubes, securing to the carrier's aluminium structure. The visible mounting position at the caravan's rear means bikes remain exposed, so additional locking measures provide worthwhile protection.
EAN-13 : 8004815397692
