Fiamma Carry-Bike Ford Custom V710

£449.99(inc VAT) £627.99
View delivery optionsView product description
  Product Description

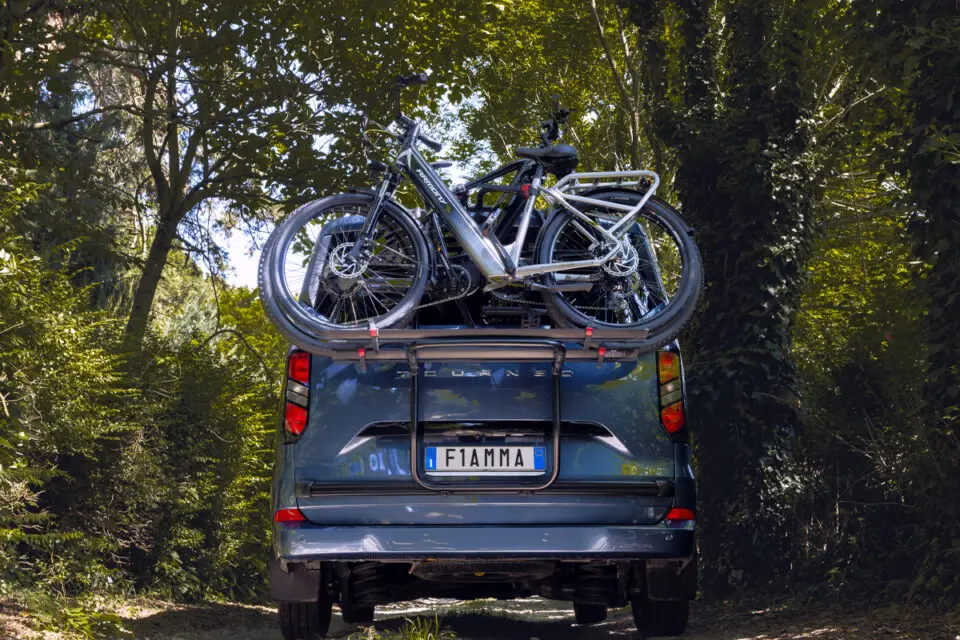

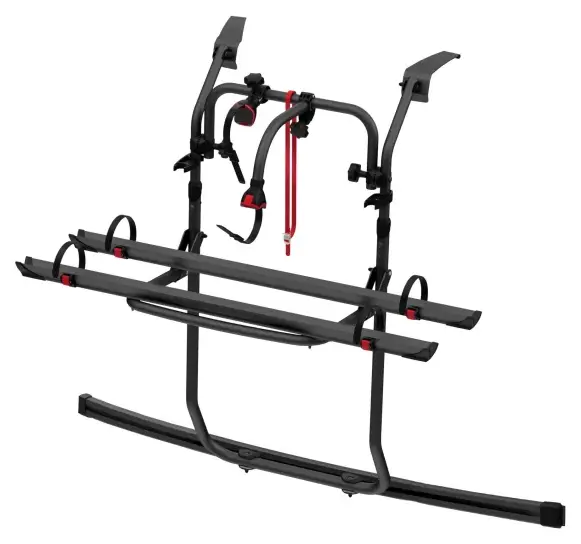

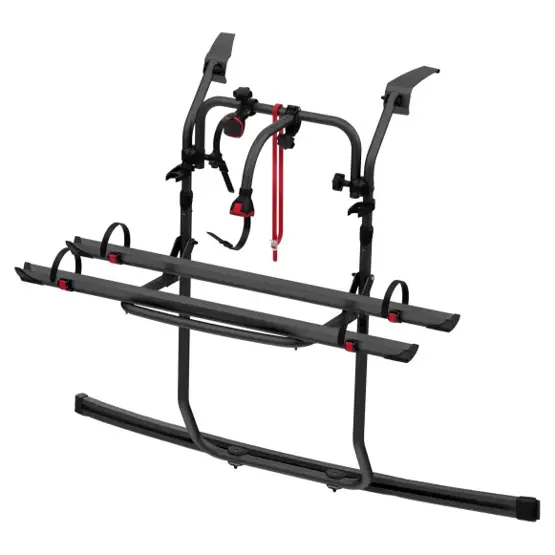

The Fiamma Carry-Bike Ford Custom V710 is a tailgate-mounted bike carrier designed specifically for Ford Transit and Tourneo Custom vehicles from 2023 onwards with single tailgates and H1 roof heights. This rack is built for the latest Ford Custom V710 models and fits vehicles with lift roofs too. It carries two bikes as standard with an 11kg frame weight and expands to carry up to four bikes with a maximum load capacity of 60kg, making it suitable for transporting two electric bikes.

How does the Fiamma Carry-Bike attach to the Ford Custom V710 tailgate?


The carrier mounts using upper and lower brackets that fasten to reinforcement points on the tailgate without drilling. The curved bottom fixing bar follows the vehicle's contours for improved adhesion, while the telescopic rail support base combines stainless steel AISI 304 and aluminium 6060 for strength. Three mounting positions are available: standard, middle, and lower (the lower position requires a licence plate bar with lights).

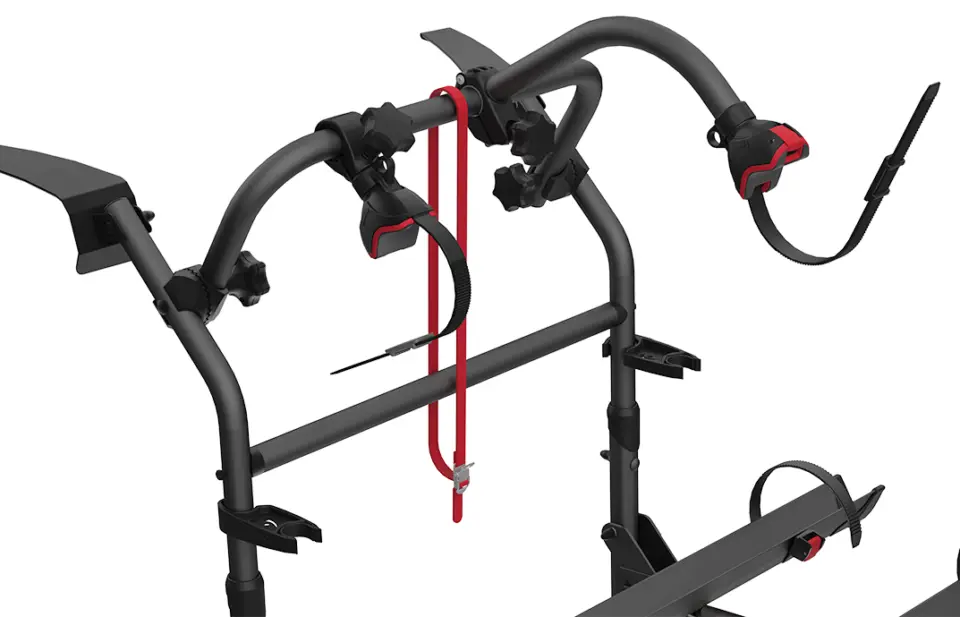

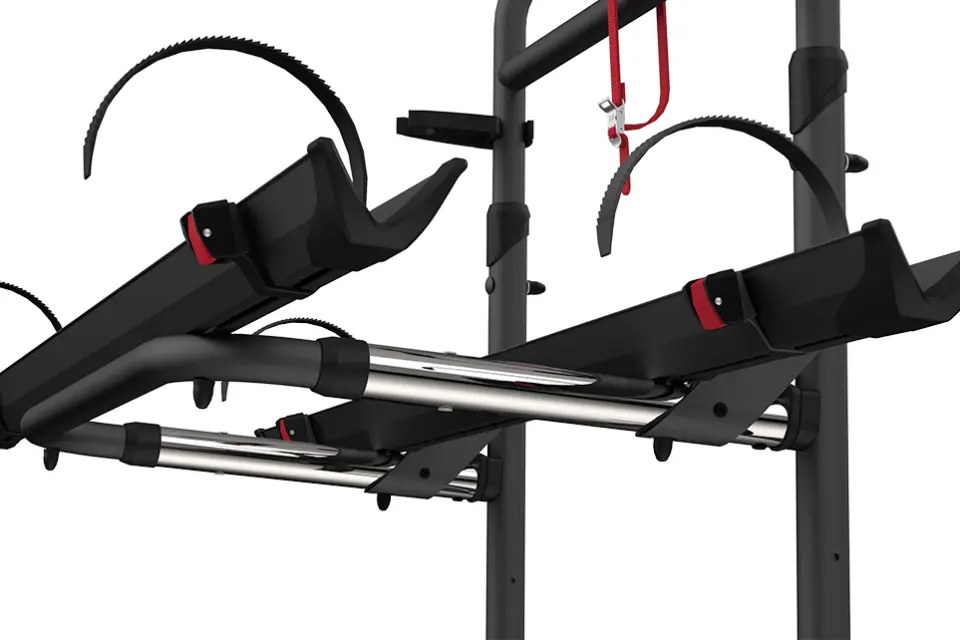

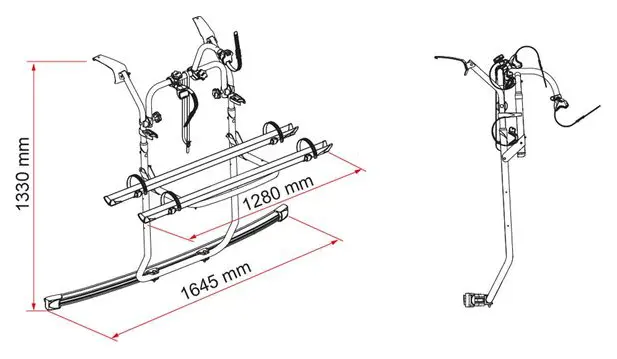

The V710 model features the 2025 restyled design with Rail Plus technology that provides increased torsion and flexural strength compared to older models. The Bike Block Pro S1 and Pro S3 system secures bikes with 360-degree rotating ends that clamp frames firmly. You'll find the support tubes install in two different positions to accommodate whichever rail height you've chosen. The telescopic rails sit 15cm apart and the whole system measures 164.5x133x66.7cm when mounted.

This bike carrier lets you open the tailgate with the rack mounted, provided bikes aren't loaded. The upper brackets are shaped to match the V710's specific body lines for a flush fit. Fiamma supplies the carrier in Deep Black with everything needed for two-bike transport, though you'll need to purchase additional rails and supports separately if you want to carry three or four bikes. The carrier works with the item number 02096-34A and comes from Fiamma's Italian manufacturing facility.

Fiamma Carry-Bike Ford Custom V710 Features

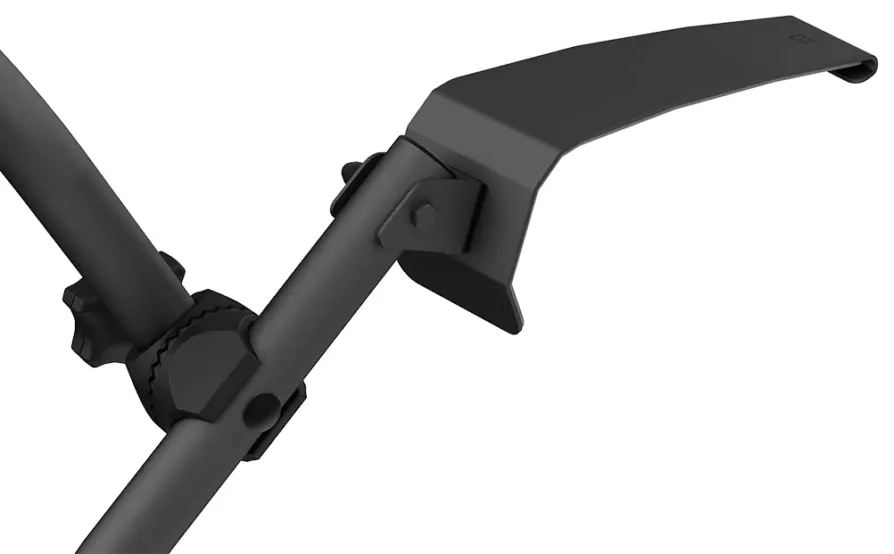

Upper brackets: Designed to follow the shape of the vehicle

Curved bottom fixing-bar: For greater adhesion to the tailgate

Rail Plus: For increased torsion and flexural strength

Bike-Block: To securely lock the bike

Rail support base: Telescopic rail support base made of stainless steel AISI 304 and aluminium 6060

Installation: On the tailgate of the vehicle

Frequently Asked Questions

Which Ford Custom models does the Fiamma Carry-Bike V710 fit?
The Fiamma Carry-Bike V710 fits Ford Transit Custom and Tourneo Custom models from 2023 onwards with single tailgates and H1 roof height. It's compatible with vehicles that have lift roofs or raised roofs. The carrier won't fit models with double rear doors or vehicles equipped with rear spoilers.
Does the Fiamma Carry-Bike V710 require drilling into the tailgate?
No drilling is required for installation. The carrier mounts using upper and lower brackets that attach to existing reinforcement points on the rear of the Ford Custom V710. Each bracket includes plastic supports to protect the vehicle's paintwork and bodywork from damage.
How many e-bikes can the Fiamma Carry-Bike Ford Custom V710 carry?
The carrier is rated to carry two electric bikes safely. The maximum total load capacity is 60kg across all bikes being transported. When carrying e-bikes, it's recommended to remove batteries where possible to reduce weight on the tailgate mounting points.
What are the three mounting positions on the Fiamma Carry-Bike V710?
The carrier installs in three positions on the rail support: standard position, middle position, and lower position. The lower mounting position requires a licence plate bar with lights to meet legal visibility requirements. The Bike Block support tube also adjusts to two positions to match your chosen rail height.
Can I open the tailgate with the Fiamma Carry-Bike mounted?
Yes, the tailgate opens with the bike carrier mounted when bikes are not loaded. Once bikes are fitted to the carrier, the tailgate should not be opened due to the additional weight and projection from the rear of the vehicle. Always remove bikes before opening the tailgate.
How do I expand the Fiamma Carry-Bike V710 from 2 bikes to 4 bikes?
The carrier comes standard with equipment for two bikes including two Rail Plus and Bike Block Pro S1 and S3. To carry three or four bikes, you'll need to purchase additional Rail Plus units and corresponding Bike Block Pro supports separately. The telescopic rail support base is designed to accommodate up to four bikes with a combined maximum weight of 60kg.
What's the difference between Rail Plus and older Fiamma rail systems?
Rail Plus is part of the 2025 restyled Fiamma carrier range and provides increased torsion and flexural strength compared to previous rail designs. This improved strength makes the system better suited for heavier bikes including electric bikes. The Rail Plus works with the Bike Block Pro system that features 360-degree rotating ends for secure frame clamping.
Is a licence plate carrier included with the Fiamma Carry-Bike V710?
The licence plate carrier is an optional extra and not included as standard. You'll need to purchase a Fiamma licence plate bar with regulation lights separately if you mount the carrier in the lower position or if the carrier obscures your vehicle's number plate in any mounting configuration.
EAN-13 : 8004815476809
