Fiamma Carry-Bike VW T5 Pro Deep Black

£532.88(inc VAT) £545.99
?
View delivery optionsView product description
  Product Description

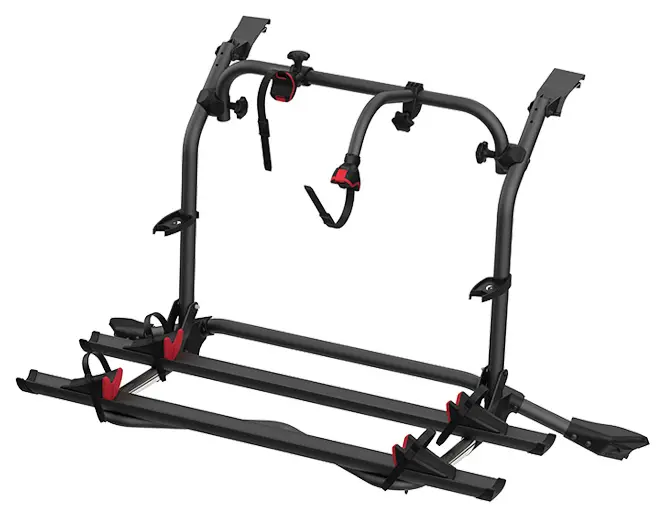

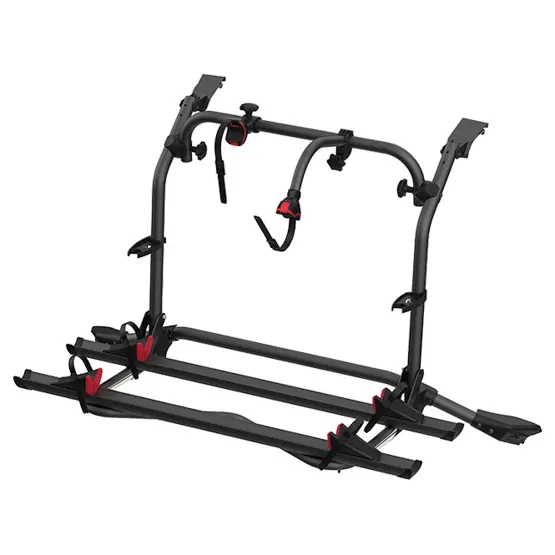

The Fiamma Carry-Bike VW T5 Pro in Deep Black is a tailgate-mounted bike carrier designed specifically for VW T5 Transporter, Caravelle, Multivan, and California campervans built between 2003 and 2014. This 2025 model features updated design improvements that make installation simpler while maintaining compatibility with vehicles fitted with a raised roof. The rack mounts directly to the tailgate using reinforced attachment points, with no drilling required, meaning you can remove it when not needed. It carries two bikes as standard and supports e-bikes, with the option to expand capacity to four standard bikes or two e-bikes using additional Fiamma accessories.

Why choose the Fiamma Carry-Bike VW T5 Pro for your campervan?


The VW T5 Pro offers practical features that make it stand out for campervan owners who need reliable bike transport. It weighs 13kg and has a maximum load capacity of 60kg, with a vertical wheelbase of 85cm and horizontal wheelbase of 153cm. The shaped rail support keeps your vehicle's third stop lamp visible when the carrier is closed, while the mounting design means you can open your tailgate even with the rack fitted (provided no bikes are loaded). The lower brackets fit the tailgate's contours without putting pressure on the bumper, and the solid anchorage to reinforced points provides stability during travel.

The rack comes complete with everything needed for a two-bike setup: one Bike-Block Pro S1 and one Bike-Block Pro S3 locking system, two Rail Premium bike rails with sliding bike-lock supports, and all mounting brackets. The telescopic rail support design allows for quick expansion when you need to carry more bikes. Rail Premium components make securing bikes faster and more straightforward compared to older systems. The Deep Black finish coordinates with modern VW styling while the 15cm distance between rails provides adequate clearance for different bike frame sizes and handlebar widths.

Fiamma Carry-Bike VW T5 Pro Deep Black Features

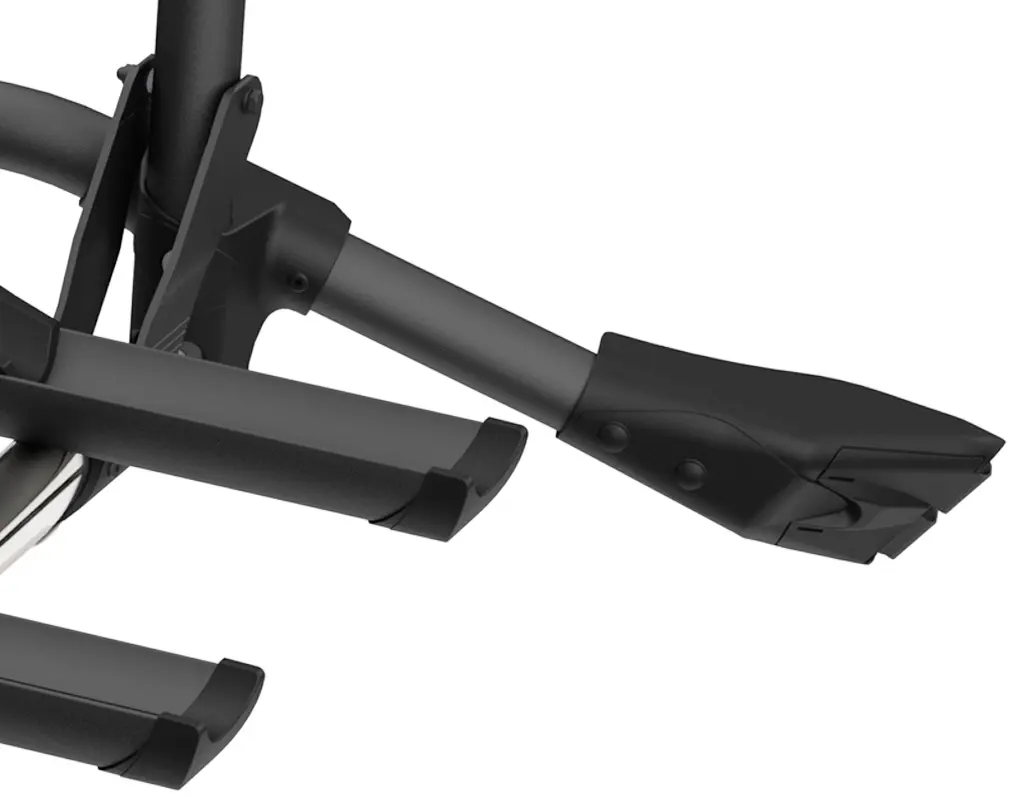

Lower brackets: They ensure attachment to the vehicle and fit the line of the tailgate

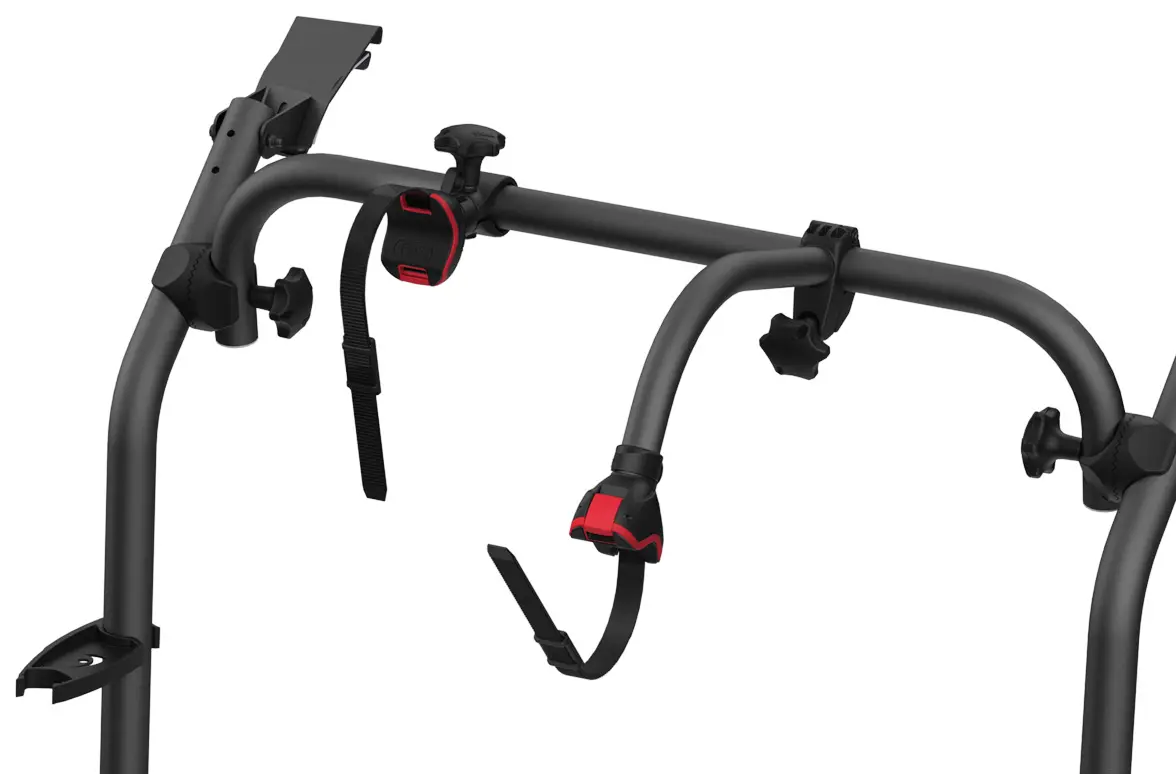

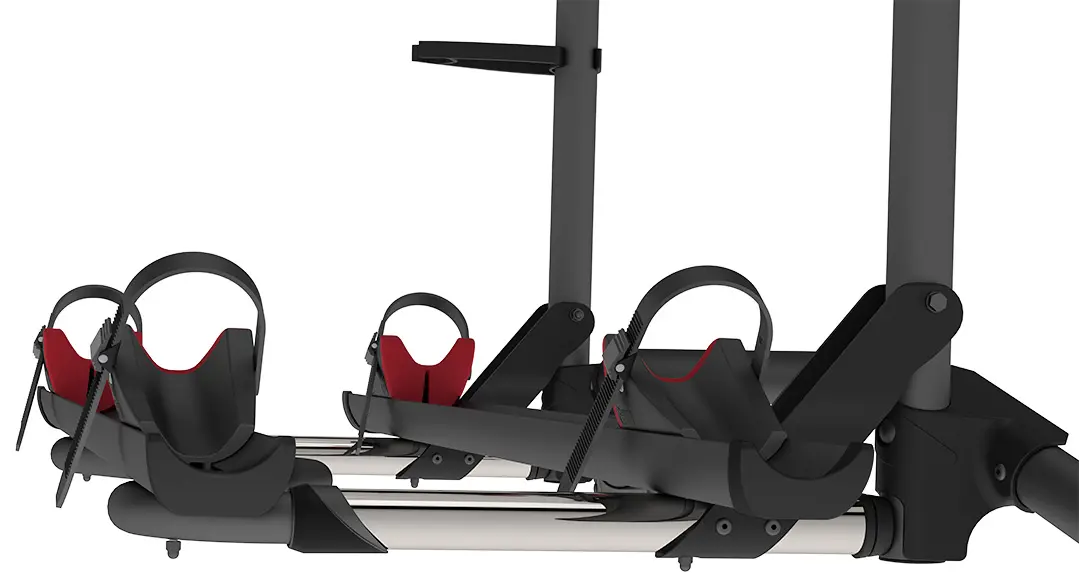

Bike-Block: To securely lock the bike

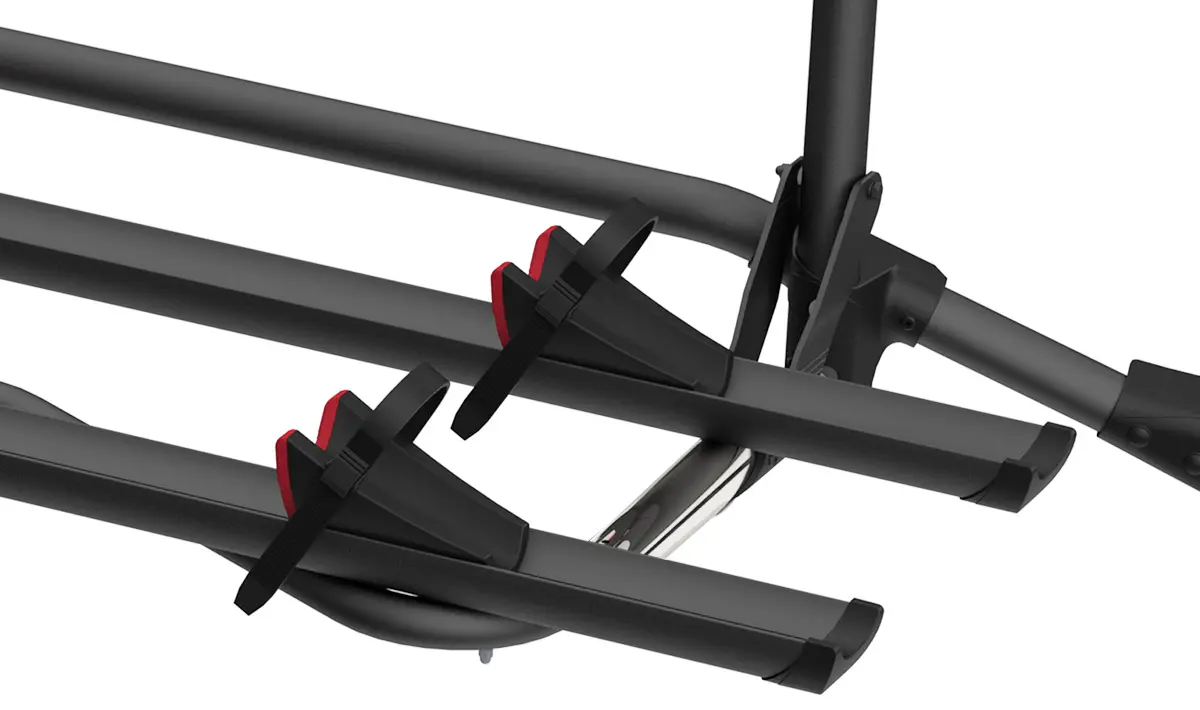

Rail Premium: With sliding bike-lock support, for quicker and more practical fixing

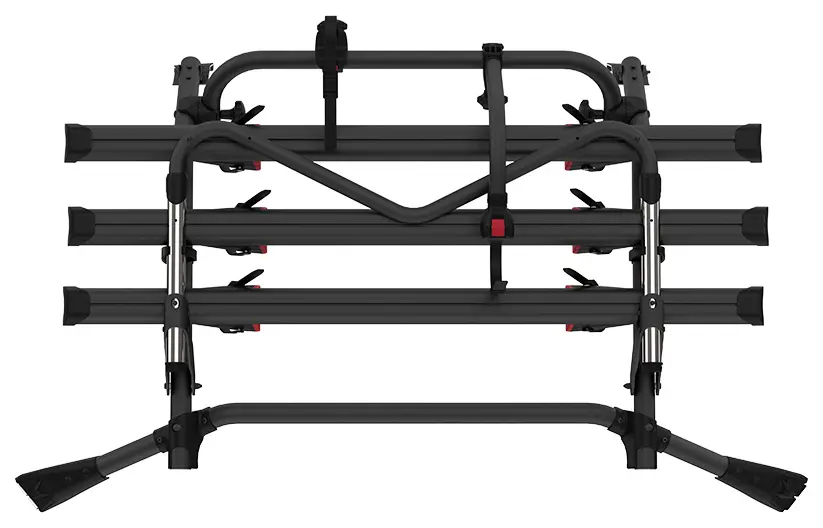

Telescopic rail support: To fit up to 4 bikes

Installation: On the tailgate of the vehicle

Frequently Asked Questions

Does the Fiamma Carry-Bike VW T5 Pro fit all VW T5 models?
The Fiamma Carry-Bike VW T5 Pro is designed specifically for VW T5 Transporter, Caravelle, Multivan, and California campervans manufactured between 2003 and 2014 with a single lift-up tailgate rear door. It is suitable for vehicles with a raised roof. This rack will not fit VW T5 models with barn doors or split rear doors. The mounting system attaches to reinforced points on the tailgate, so compatibility depends on having the correct door configuration and model year range.
Can I open the tailgate with the bike rack fitted?
Yes, you can open the VW T5 tailgate with the Fiamma Carry-Bike Pro mounted, but only when no bikes are loaded on the rack. The tailgate may need to be held open due to the additional weight of the 13kg rack. Once bikes are loaded onto the carrier, the tailgate should not be opened as the combined weight of the rack and bikes would place excessive strain on the tailgate hinges and could cause damage to your vehicle.
How many bikes can the Fiamma VW T5 Pro carry?
The Fiamma Carry-Bike VW T5 Pro carries two bikes as standard with the included components. You can expand the capacity to carry up to four standard bikes or two e-bikes by purchasing additional Fiamma Rail Premium rails and Bike-Block locking systems separately. The maximum load capacity is 60kg regardless of the number of bikes carried. The vertical wheelbase is 85cm and the horizontal wheelbase between brackets is 153cm, with 15cm spacing between the rails to accommodate different bike frame sizes.
Is the Fiamma VW T5 Pro compatible with e-bikes?
Yes, the Fiamma Carry-Bike VW T5 Pro is e-bike compatible. As supplied with two bike positions, it can carry standard bicycles or e-bikes. When expanded with additional Fiamma accessories, the rack can carry up to two e-bikes while maintaining the 60kg maximum load capacity. E-bikes are heavier than standard bikes, so it is important to verify that your specific e-bike models do not exceed the 60kg total weight limit when calculating the combined weight of both bikes.
Does the Fiamma T5 Pro require drilling to install?
No, the Fiamma Carry-Bike VW T5 Pro does not require drilling for installation. The rack uses a hook-over mounting system where the upper brackets attach to existing reinforced points at the rear of your VW T5 tailgate. The lower brackets are designed to fit the contour of your tailgate without applying pressure to the bumper. This means you can install and remove the rack as needed without permanently modifying your vehicle. All necessary mounting brackets and hardware are included with the rack.
Will the bike rack cover my number plate or rear lights?
No, the Fiamma Carry-Bike VW T5 Pro is positioned high on the tailgate so it does not cover your vehicle's number plate or rear lights. The shaped rail support design keeps the third stop lamp visible even when the bike carrier is closed without bikes. The rack's mounting position follows the line of your VW T5 tailgate while keeping all lighting and registration visible. A licence plate carrier is available as an optional accessory if you need to display a plate when bikes are loaded and might obstruct visibility.
EAN-13 : 8004815476823
