Fiamma Carry-Bike Ford Custom Nugget / Nugget Plus

£475.99(inc VAT) £619.99
View delivery optionsView product description
  Product Description

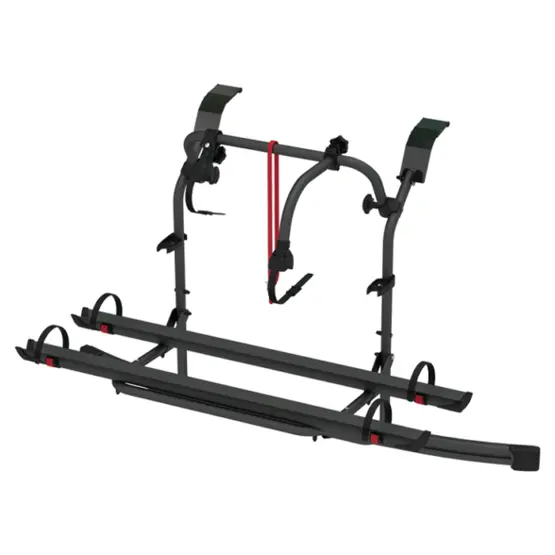

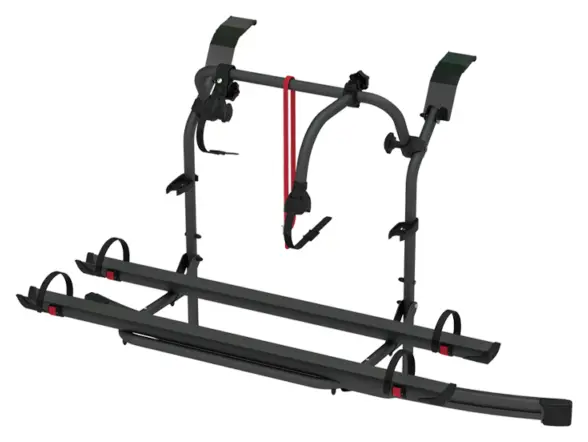

The Fiamma Carry-Bike Ford Custom Nugget / Nugget Plus (ref 02096-07A) is a tailgate-mounted bike carrier designed specifically for Ford Transit Custom Nugget and Nugget Plus campervans with raised roofs. This deep black rack attaches to the lower part of the tailgate using curved brackets that follow the vehicle's contours, so there's no drilling needed. It arrives ready to transport two standard bikes or two e-bikes, with Bike-Block Pro 1 and Pro 3 locking systems included. The aluminium rail support base keeps the weight down to 8.4kg while maintaining a 50kg maximum load capacity.

Which Ford Transit Custom campervans work with the Fiamma Carry-Bike?


This bike carrier fits Ford Transit Custom Nugget models from 2015 onwards and Nugget Plus versions from 2012. It's also compatible with Ford Cap Land (2015+), Cap Fan (2015-2018), Cap Coast (2018+), and Cap Life (2019+) with H1 high roof. The vehicle must have a single tailgate rather than double doors.

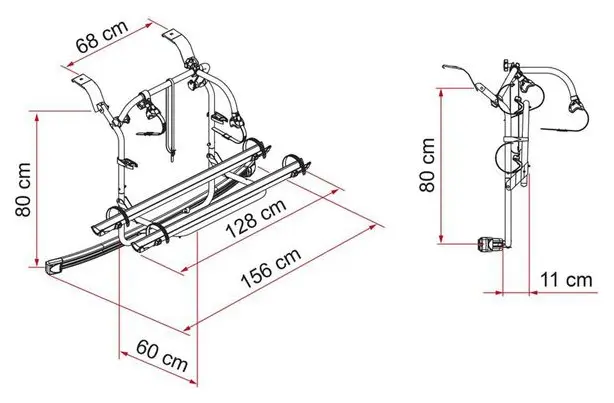

The Rail Plus system gives you 15cm spacing between rails, with vertical and horizontal wheelbases of 80cm and 68cm to accommodate different bike frame sizes. You'll get a security strip and all necessary brackets in the box. The tailgate opens freely when the rack is mounted but bikes need to be removed first. For a third bike, you'll need to add a Bike-Block Pro 2 and an extra Rail Plus (sold separately). The curved bottom fixing bar provides strong adhesion to the tailgate, while the upper brackets follow the vehicle's shape for a secure fit. A licence plate carrier with lighting is available as an optional extra.

Fiamma Carry-Bike Ford Custom Nugget / Nugget Plus Features

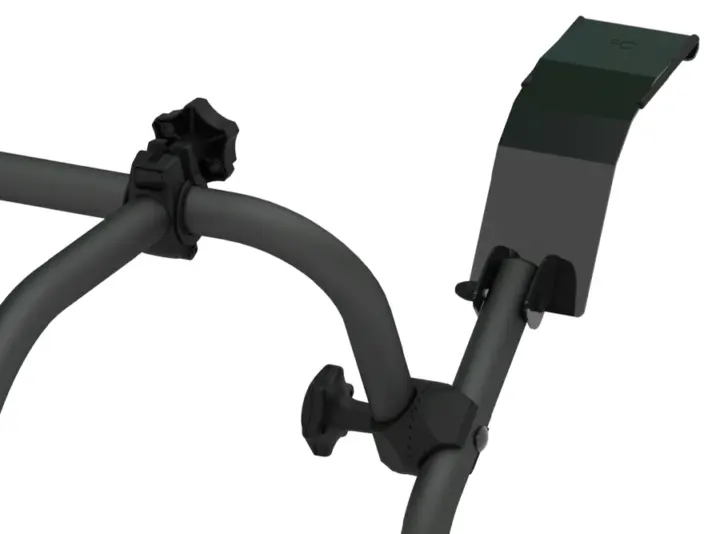

Upper brackets: Designed to follow the shape of the vehicle

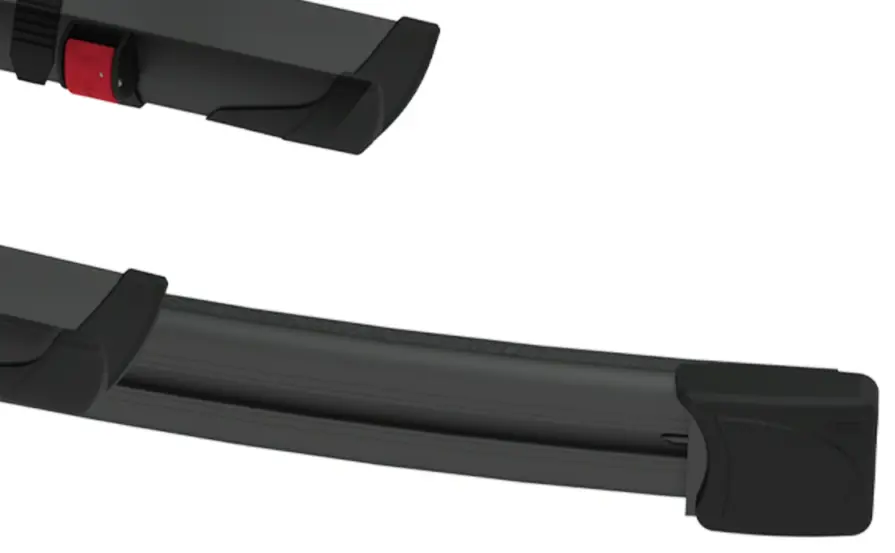

Curved bottom fixing-bar: For greater adhesion to the tailgate

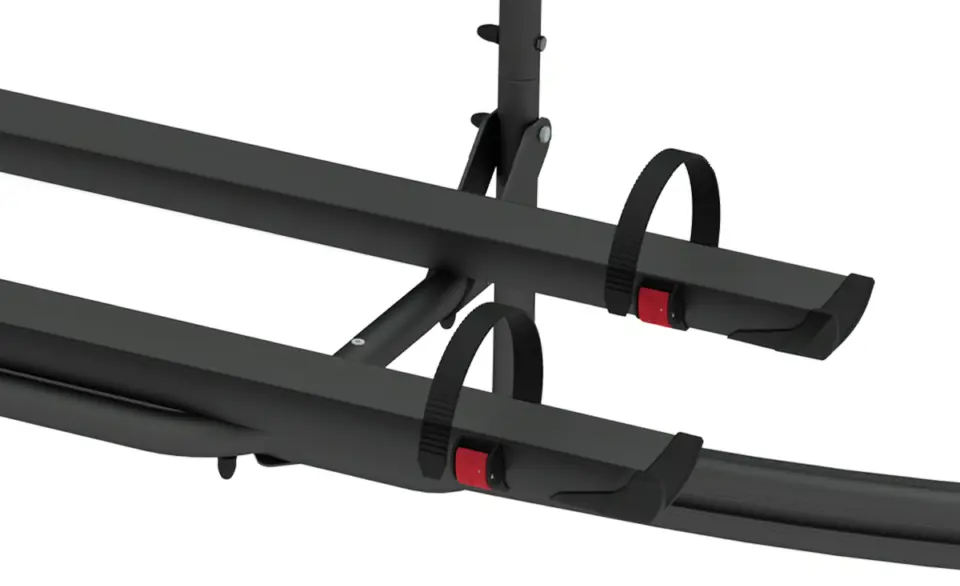

Rail Plus: New design for increased torsion and flexural strength

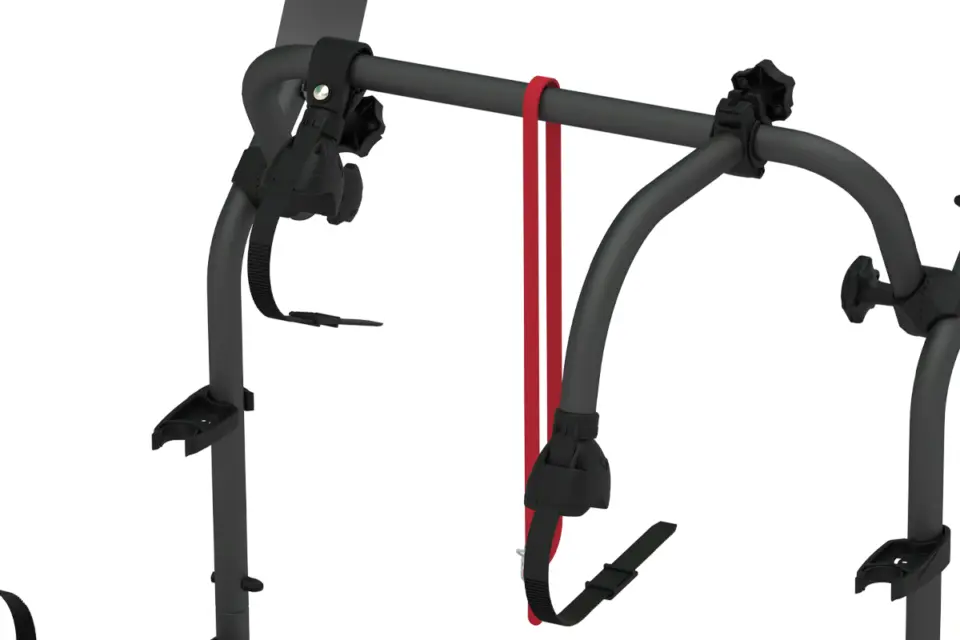

Bike-Block: To securely lock the bike

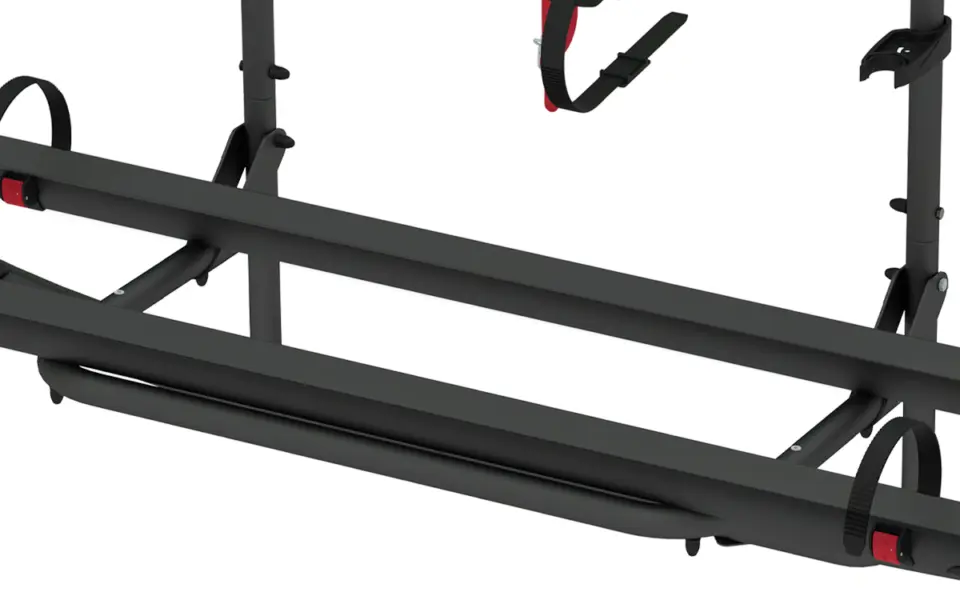

Rail support base: Made of aluminium to transport up to 3 bikes

Installation: On the tailgate of the vehicle

Frequently Asked Questions

How many bikes does the Fiamma Carry-Bike Ford Custom Nugget hold?
The carrier holds two bikes as standard, including two e-bikes if needed. You'll receive Bike-Block Pro 1 and Pro 3 in the box. To carry a third bike, add the Bike-Block Pro 2 and an additional Rail Plus. The maximum load across all bikes is 50kg total.
Does the Fiamma bike rack fit all Ford Transit Custom models?
This specific rack (02096-07A) fits Ford Transit Custom Nugget from 2015, Nugget Plus from 2012, and Ford Cap Land, Fan, Coast, and Life variants with H1 high roofs. The vehicle must have a single tailgate. It does not fit double door models or vans with rear spoilers.
Do I need to drill holes to install the Fiamma Carry-Bike?
No drilling is required. The bike carrier uses curved brackets that attach to the lower part of the tailgate and follow the vehicle's contours. The upper brackets and curved bottom fixing bar provide secure adhesion using the supplied straps and brackets.
Will the tailgate open with the bike rack fitted?
Yes, the tailgate opens freely when the Fiamma Carry-Bike is mounted, but you must remove all bikes first. This design feature lets you access the rear of the campervan without removing the entire rack system.
What weight e-bikes work with this Fiamma carrier?
The carrier is e-bike compatible with a 50kg maximum load across all bikes. For two e-bikes, each should weigh no more than 25kg. The Rail Plus system and aluminium construction provide the necessary strength for heavier electric bikes while keeping the carrier itself lightweight at 8.4kg.
What comes in the box with the Fiamma Carry-Bike Ford Custom?
The carrier includes one Bike-Block Pro 1, one Bike-Block Pro 3 (both locking systems), a security strip, two Rail Plus bike rails, and all mounting brackets. The licence plate carrier with control lighting is an optional extra and sold separately.
EAN-13 : 8004815438272
