Fiamma Carry-Bike Ford Transit

£320.01(inc VAT) £357.99
View delivery optionsView product description
  Product Description

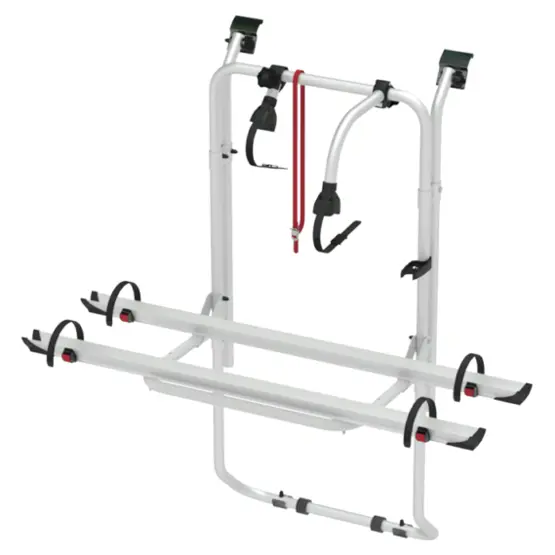

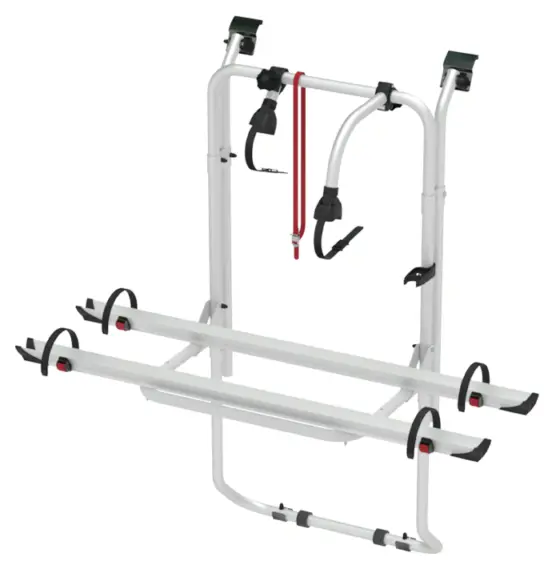

The Fiamma Carry-Bike Ford Transit is a purpose-built bike carrier designed specifically for Ford Transit campervans with single rear doors. This lightweight aluminium rack mounts directly onto your tailgate without requiring any drilling, thanks to specially shaped upper brackets that follow the vehicle's contours. Weighing just 7.1kg, it arrives with everything needed for installation, including Rail Quick Pro rails, Bike Block Pro 1 and Pro 3, straps and mounting brackets.

How many bikes does the Fiamma Carry-Bike Ford Transit hold?


The carrier comes standard with capacity for 2 bikes and expands to carry up to 3 standard bicycles with a combined maximum load of 50kg. It includes two Rail Quick Pro systems spaced 15cm apart, paired with Bike Block Pro 1 and Pro 3 for secure wheel and frame locking. The rack is not suitable for e-bikes.

Installation takes minutes because the brackets are pre-shaped to match the Ford Transit tailgate profile. The Rail Quick Pro system lets you lock wheels quickly and securely to the rail, while the Bike Blocks grip your bike frame firmly in place. The aluminium construction keeps weight down to 7.1kg whilst supporting loads up to 50kg, and the black finish matches most campervan aesthetics. Dimensions of 150 x 53 x 150cm mean it sits neatly on your tailgate without excessive overhang.

The included components work together as a complete system. Each Rail Quick Pro provides a stable base for one bike wheel, with the option to add a third rail for an additional bicycle. The Bike Block Pro 1 and Pro 3 secure different frame sizes and styles, rotating at the ends to accommodate various bike geometries. Supplied straps and brackets handle the entire mounting process without permanent modifications to your Ford Transit.

Fiamma Carry-Bike Ford Transit Features

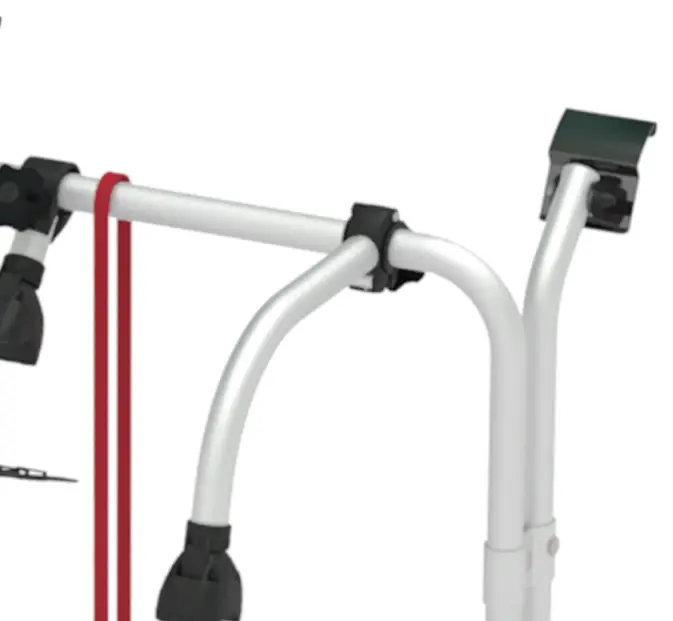

Upper brackets: Designed to follow the shape of the vehicle

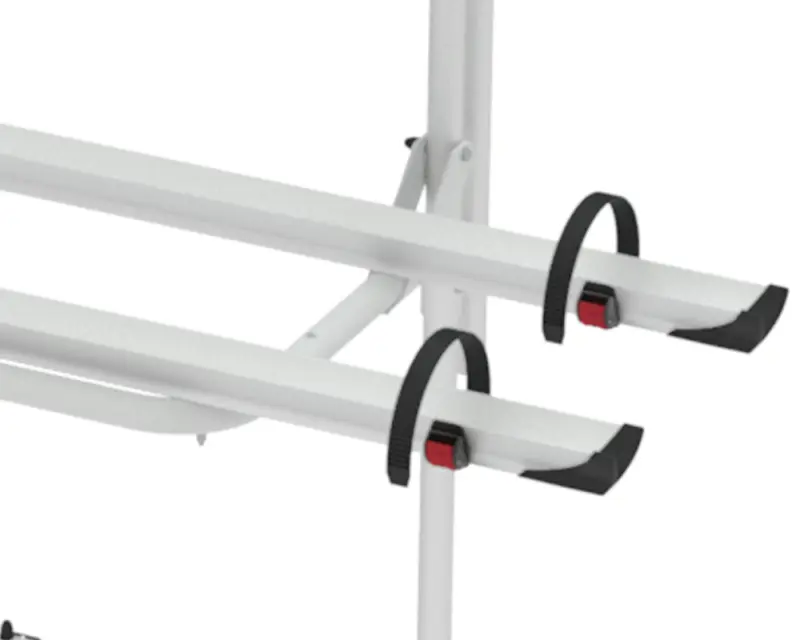

Rail Quick Pro: For quick and secure locking of the wheel to the rail

Bike-Block: To securely lock the bike

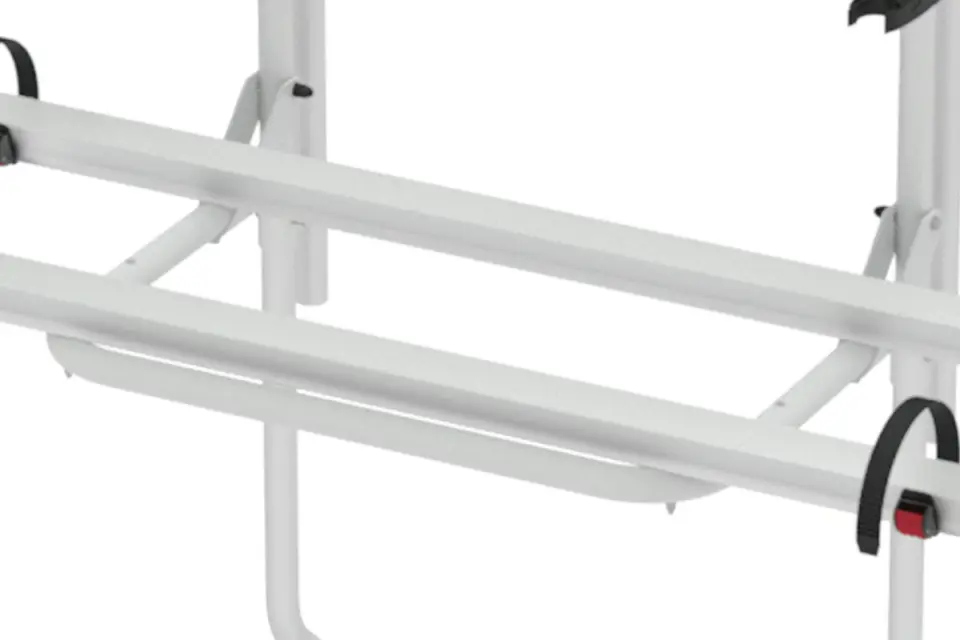

Rail support base: Aluminium for transporting up to 3 bikes

Installation: On the tailgate of the vehicle

Frequently Asked Questions

Which Ford Transit models does this Fiamma bike rack fit?
This Fiamma Carry-Bike fits Ford Transit models with single rear tailgate doors from 2000 to 2011. The upper brackets are specifically shaped to follow the contours of these Transit models. It does not fit Ford Transit models from 2014 onwards or vans with double rear doors or rear spoilers.
Does the Fiamma Carry-Bike Ford Transit require drilling into the vehicle?
No drilling is required for installation. The carrier uses specially designed upper brackets that follow the shape of the Ford Transit tailgate and secure using supplied straps and brackets. The contoured profile adheres to the lower part of the tailgate, creating a secure mount without permanent modifications to your vehicle.
Can the Fiamma Ford Transit carrier hold electric bikes?
No, this Fiamma Carry-Bike model is not suitable for e-bikes. It is designed for standard bicycles only, with a maximum combined load capacity of 50kg across up to 3 bikes. E-bikes typically exceed the weight capacity and frame design parameters of this carrier.
What comes in the box with the Fiamma Carry-Bike Ford Transit?
The carrier comes complete with 2 Rail Quick Pro rails for wheel mounting, Bike Block Pro 1 and Pro 3 for frame security, mounting straps, shaped upper brackets, and an aluminium rail support base. This provides everything needed to carry 2 bikes as standard. To carry a 3rd bike, you need to purchase Bike Block Pro 2 separately.
How does the Rail Quick Pro system work on Fiamma bike carriers?
The Rail Quick Pro system provides a secure rail onto which your bike wheel slots and locks. Each rail allows quick attachment and release of the wheel whilst maintaining stability during transport. The two rails are spaced 15cm apart on the aluminium base, and the Bike Blocks then secure the bike frame independently, creating a two-point locking system for each bicycle.
EAN-13 : 8004815378844
