Product Description

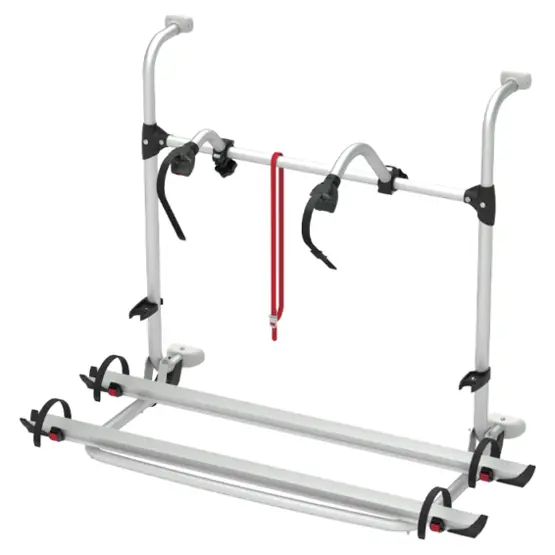

The Fiamma Carry-Bike Pro Autotrail is a vehicle-specific aluminium bike carrier designed exclusively for Autotrail motorhomes manufactured between 2011 and 2016. This rack fits motorhomes with a rounded spare wheel moulding integrated into the rear wall, providing a secure mounting solution without compromising the structural integrity of your vehicle. It features an updated design with black plastic trim that replaces the older red trim, giving it a contemporary look that blends seamlessly with modern motorhome aesthetics.

Why choose the Fiamma Carry-Bike Pro Autotrail for your motorhome?

This rack is engineered specifically for Autotrail models from 2011 to 2016 with integrated rounded spare wheel moulding. The carrier uses an aluminium rail support base with Rail Quick Pro technology for fast, secure wheel locking, carries up to 2 standard bikes with a 40kg maximum load capacity, and includes height-adjustable upper structure with Bike-Block Pro S 2 and Pro S 3 for reliable frame securing. At just 12kg, it mounts to the rear wall without excessive weight penalty.

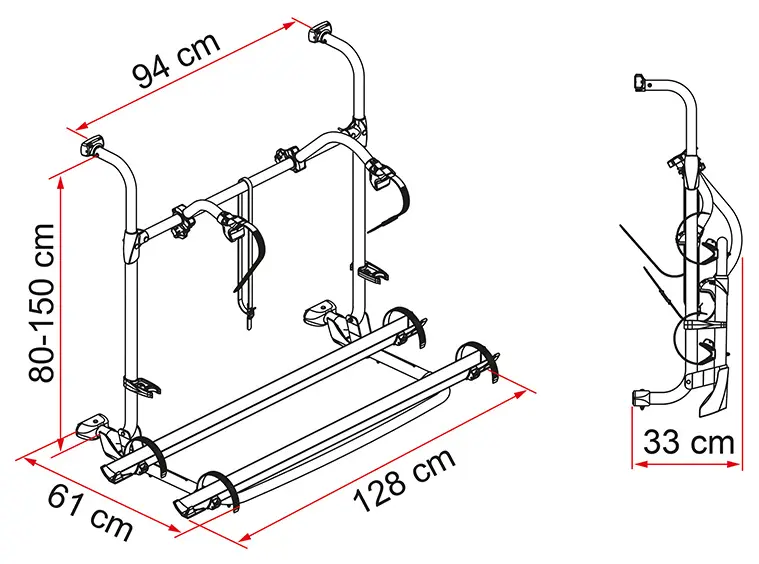

The Rail Quick Pro system allows you to secure bike wheels quickly with reinforced straps, while the included Bike-Block Pro S 2 and Pro S 3 frame clamps hold your bikes firmly during transit. The rack features a 30cm distance between rails, providing adequate spacing to prevent bikes from touching during travel. With dimensions of 128 x 61 x 80cm, the carrier remains compact when not in use, and the lightweight aluminium construction means it adds minimal weight to your motorhome's rear axle load.

Installation requires no drilling as the rack attaches to pre-fitted reinforcement points in your Autotrail's rear wall, though professional fitting is recommended to locate the correct mounting positions. The black finish coordinates with contemporary motorhome designs, and the system comes complete with security strips to protect your vehicle's paintwork. This rack is designed for standard bikes only and is not suitable for e-bikes due to the 40kg weight restriction.

Fiamma Carry-Bike Pro Autotrail Features

Aluminium rail support base: For transporting up to 2 bikes

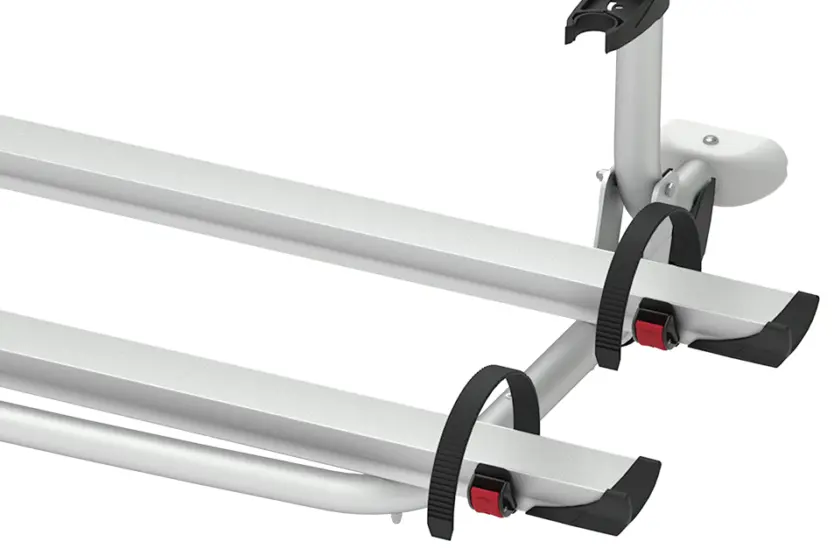

Rail Quick Pro: For quick and secure locking of the wheel to the rail

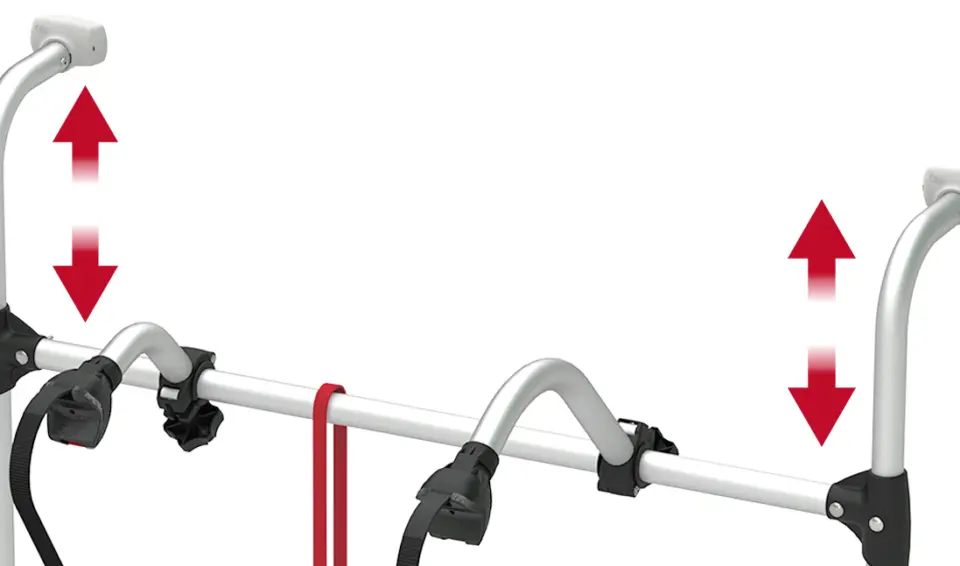

Upper structure: Height adjustable

Bike-Block: To securely lock the bike

Installation: Rear wall

Frequently Asked Questions

Which Autotrail motorhomes is the Fiamma Carry-Bike Pro Autotrail compatible with?

This bike carrier is designed specifically for Autotrail motorhomes manufactured between 2011 and 2016 that feature a rounded spare wheel moulding integrated into the rear wall. The rack mounts to pre-fitted reinforcement points behind the rear wall panel. If your Autotrail was manufactured outside this date range or has a different rear wall configuration, this rack will not fit correctly. Check your motorhome's year and rear wall design before purchasing.

What is Rail Quick Pro and how does it secure bikes?

Rail Quick Pro is Fiamma's quick-locking rail system that secures bike wheels to the carrier using reinforced sliding straps called Quick-Safe. The 128cm rails feature pre-drilled holes for easy installation onto the aluminium rail support base. Bike wheels slide into the rail channel and the straps tension through the wheel spokes and buckle on the opposite side, preventing wheel movement during transit. The system requires no tools for loading or unloading bikes.

Can the Fiamma Carry-Bike Pro Autotrail carry electric bikes?

No, this bike carrier is not suitable for electric bikes. The maximum load capacity is 40kg across 2 bikes, which means each bike should weigh no more than 20kg. Most electric bikes weigh between 20kg and 30kg each, exceeding both the individual bike weight and total load capacity. Additionally, Autotrail motorhomes from 2011 to 2016 have specific rear wall load limits that must not be exceeded. For e-bikes, you would need a tow bar mounted carrier with higher weight capacity.

What is the difference between Bike-Block Pro S 2 and Pro S 3?

Both Bike-Block Pro S 2 and Pro S 3 are frame clamps that secure your bike frame to the Carry-Bike carrier, preventing lateral movement during travel. The difference lies in their positioning and clamping mechanism to accommodate different bike frame geometries. Pro S 2 typically secures the first bike position while Pro S 3 handles the second position, with slightly different angles to prevent bikes from touching. Both clamps feature protective rubber pads to prevent scratching bike frames and tighten with hand-operated levers requiring no tools.

Does the Fiamma Carry-Bike Pro Autotrail require drilling for installation?

Installation does not require drilling through the exterior of your motorhome because Autotrail manufactured vehicles from 2011 to 2016 with pre-fitted reinforcement points behind the rear wall panel specifically for bike carrier installation. The rack bolts directly to these hidden mounting points. Professional installation is strongly recommended because the reinforcement points are not visible from outside and incorrect mounting to unsupported areas can damage the rear wall structure or create unsafe carrying conditions. Installation typically takes 1 to 2 hours.

EAN-13 : 8004815397722
