Fiamma Carry-Bike Pro N

Name: Fiamma Carry-Bike Pro N
Brand: Fiamma
SKU: 296641
Price: 287.25 GBP
Availability: InStock

Product Ref: 296641
Fiamma Code : 02096-09V

£287.25(inc VAT) £302.99Product Ref: 296641
Fiamma Code : 02096-09V

View delivery optionsView product description

Delivery : £10.11
Loading stock details...

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

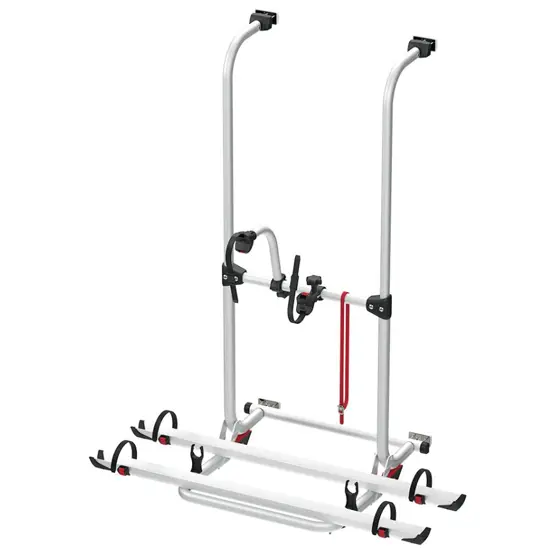

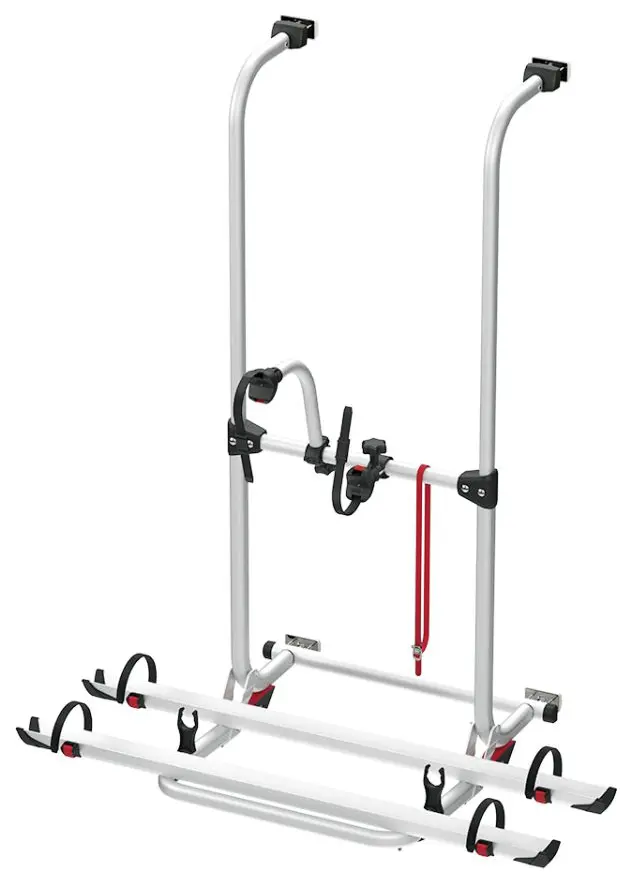

The Fiamma Carry-Bike Pro N is a professional-grade rear wall bike carrier designed specifically for coachbuilt motorhomes with pre-installed Fiamma brackets. Built with 6060 aluminium tubes featuring an oval section, this carrier weighs 10.2kg and handles a maximum load of 60kg. It's supplied with two Rail Plus bike rails, Bike-Block Pro 1 and Pro 3 locking systems, and a security strip to carry two bikes as standard.

How does the Fiamma Pro N differ from standard motorhome bike carriers?

The Pro N uses a telescopic rounded tube structure that adjusts vertically from 80-150cm, allowing installation on different motorhome configurations. It's designed for vehicles with existing Fiamma brackets already fitted to the rear wall, which is why it comes without separate mounting hardware. The adjustable design means it accommodates both standard bikes (up to four with additional parts) and e-bikes (two maximum), with 15cm spacing between rails for secure wheel positioning.

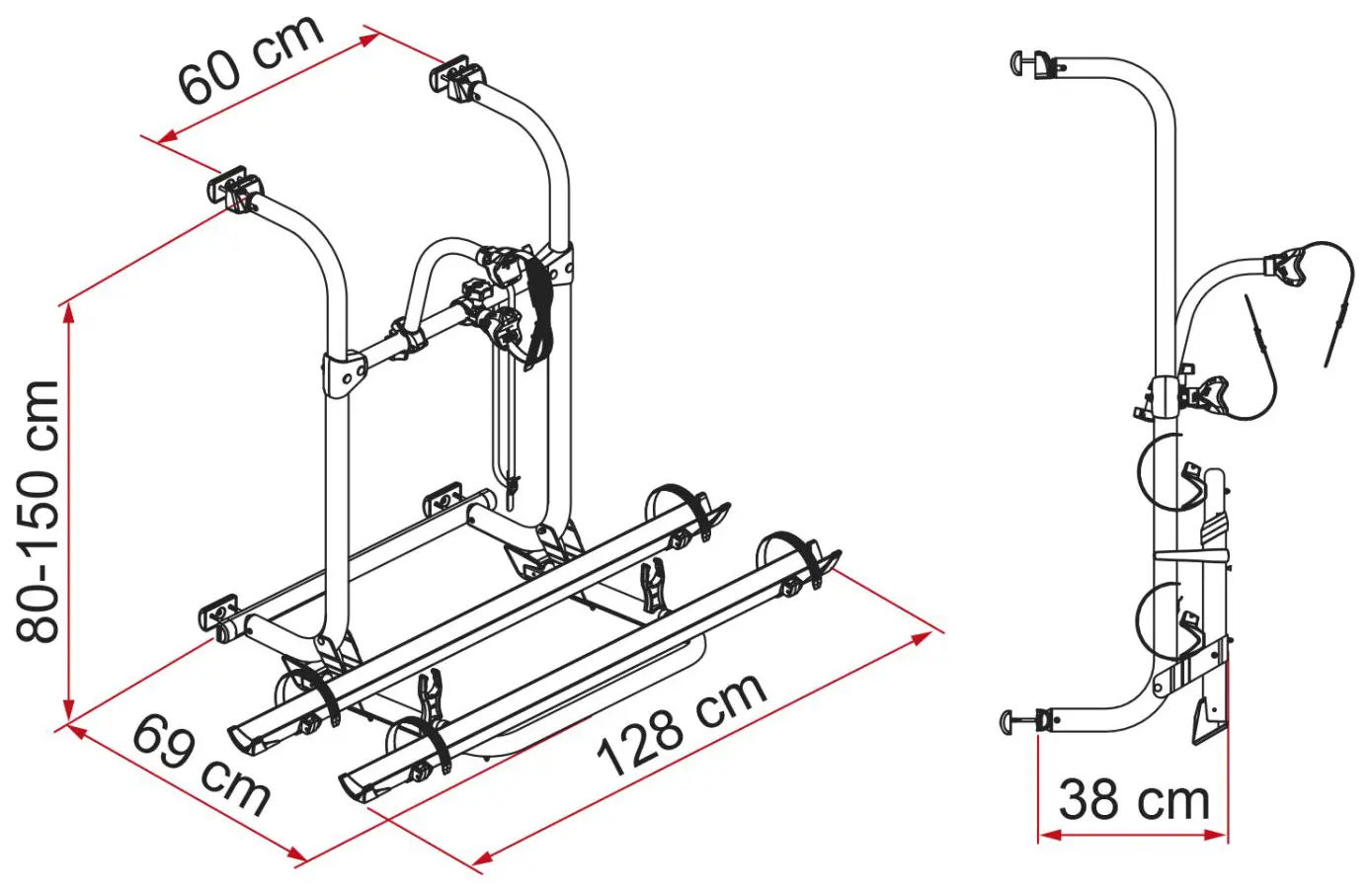

The carrier's height adjustability ranges from 40-80cm in frame adjustment, whilst the vertical wheelbase extends between 80-150cm to fit various motorhome rear wall layouts. The horizontal wheelbase sits at 60cm between mounting points. To expand capacity to four standard bikes, you'll need Bike-Block Pro 2 and 4 plus two extra Rail Plus rails, sold separately. When carrying e-bikes, stick to two bikes maximum due to the 60kg weight limit and wall stress considerations. The carrier measures 128 x 69 x 80cm when set up in standard open position with minimum vertical wheelbase adjustment.

The rounded tube construction provides stability during travel whilst the bottom support bar fixing system adds security at the base mounting point. The Rail Plus system uses a track design where bike wheels sit securely, held in place by the Bike-Block systems that clamp around the frame. Each rail handles bikes with different wheelbases, and the 15cm separation prevents handlebar interference. The carrier works on caravans too, though you'll want to check compatibility with customer service first since mounting requirements differ from motorhome installations.

Fiamma Carry-Bike Pro N Features

6060 aluminium tubes with oval section
Height-adjustable frame
Carries 2 bikes as supplied or up to 4 standard bikes (or 2 ebikes) with added parts
Telescopic rail support
Easy Position for the installation of offset rails
Bull Shock Absorber for absorbing shocks and vibrations
Bike-Block Pro scratch-proof bike locks
Sturdy rails with reinforced base delivered with Quick-Safe straps
Rack Holder safety carrier lock
Support Bar Kit: lower fixings with bar for easy installation
Quick Lock for quick and safe locking of the wheel to the rail

Frequently Asked Questions

Does my motorhome need pre-installed brackets for the Fiamma Pro N?

Yes, the Fiamma Carry-Bike Pro N is specifically designed for motorhomes with pre-installed Fiamma original brackets on the rear wall. Unlike the standard Carry-Bike Pro, the Pro N model doesn't include top or bottom mounting hardware because it's made to attach directly to existing bracket systems. Many Bailey and CI motorhomes come with these brackets fitted from the factory. If your motorhome doesn't have pre-installed brackets, you'll need the standard Carry-Bike Pro which includes all mounting fixings.

Can the Fiamma Pro N carry two e-bikes safely?

Yes, the Pro N can carry two e-bikes within its 60kg maximum load capacity. When transporting e-bikes, it's recommended to remove the batteries before loading to reduce weight stress on the motorhome rear wall and keep within the weight limit. Position the bikes on the rails closest to the vehicle wall for better weight distribution. Each Rail Plus system can handle bikes up to 30kg, making the carrier suitable for most modern e-bikes when batteries are removed. Do not attempt to carry more than two e-bikes as this exceeds the recommended capacity.

What additional parts do I need to carry four bikes on the Pro N?

To expand the Fiamma Pro N from two bikes to four standard bikes, you need to purchase Bike-Block Pro 2 and Bike-Block Pro 4 locking systems, plus two additional Rail Plus bike rails. The carrier comes supplied with Bike-Block Pro 1 and Pro 3, plus two Rail Plus rails for carrying two bikes. The additional parts install onto the existing carrier structure, with rails spaced 15cm apart. Remember that four-bike capacity applies to standard bikes only, not e-bikes, and the total weight must not exceed 60kg.

What is the vertical wheelbase adjustment range on the Pro N?

The Fiamma Pro N has a telescopic structure with vertical wheelbase adjustment from 80cm to 150cm. This 70cm adjustment range allows the carrier to fit different motorhome rear wall configurations and heights. The frame itself adjusts from 40-80cm in height, whilst the horizontal wheelbase (distance between mounting brackets) is fixed at 60cm. The rounded aluminium tube design makes height adjustment straightforward, and the adjustable upper structure provides better stability once set to your required height.

Can I install the Fiamma Pro N on a caravan instead of a motorhome?

The Fiamma Pro N can be installed on caravan rear walls, but you should contact customer service for compatibility advice before purchasing. Whilst the carrier is primarily designed for coachbuilt motorhomes with Fiamma brackets, caravans have different rear wall structures and mounting requirements. The weight capacity, rail spacing, and bracket positioning may need different considerations for caravan installations. Professional fitting advice ensures the carrier mounts securely without damaging the caravan structure or exceeding wall load limits.

EAN-13 : 8004815439606
