Product Description

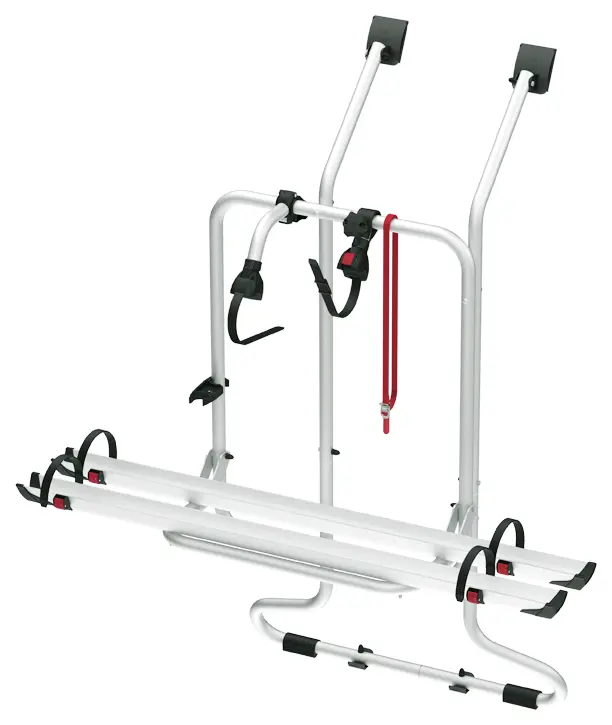

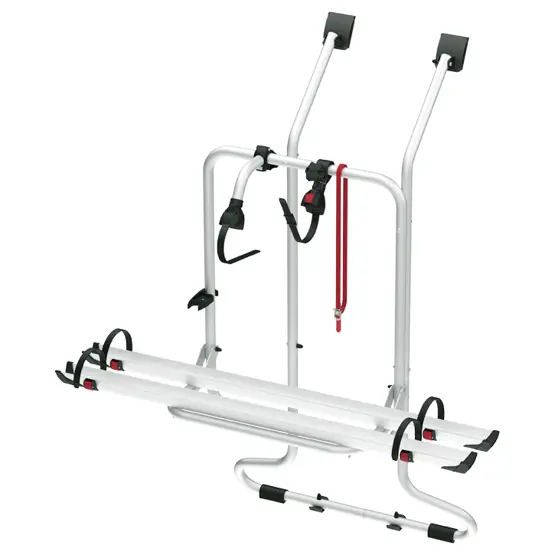

The Fiamma Carry-Bike V T4 D is a purpose-built bike carrier for Volkswagen T4 campervans with double rear doors, fitting models manufactured between 1990 and 2003. This TUV-approved rack mounts directly to your vehicle's reinforcement points without drilling, making installation straightforward while maintaining the structural integrity of your van. The anodised aluminium construction keeps weight down to 7.9kg while supporting two bikes up to a combined 35kg, and you'll find the tailgate remains functional even with the rack mounted.

Why choose a double door bike carrier for VW T4 campervans?

The Fiamma Carry-Bike V T4 D is specifically engineered for T4s with split rear doors, providing proper weight distribution across both door panels. The telescopic rail support base combines AISI304 stainless steel with aluminium construction for durability, while the 15cm rail spacing and 35cm horizontal wheelbase accommodate different bike sizes. At 138.5cm vertical wheelbase, it follows your van's natural lines without obscuring lights or registration plates.

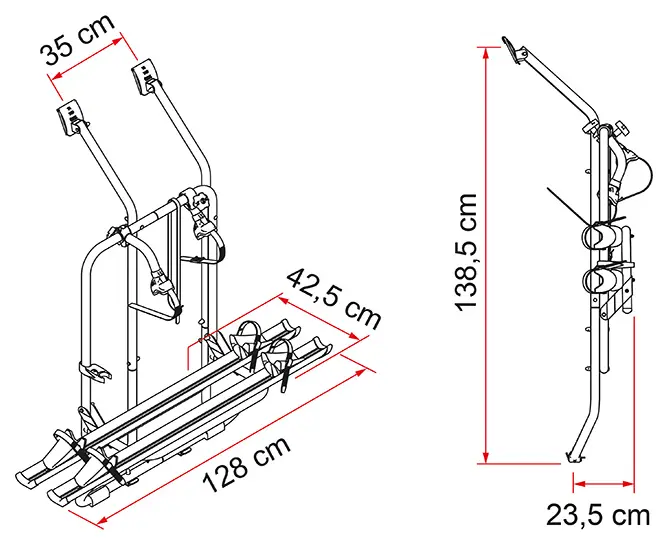

The carrier includes two Rail Plus bike rails with Bike-Block Pro S 1 and Pro S 2 locking systems to secure frames and wheels independently. The rotating end blocks on the Bike-Block Pro attachments grip various frame shapes and diameters, while the included Security Strip adds an extra layer of protection when bikes are mounted. The rack holders keep the rails neatly folded when not in use, and the whole system folds compact at 128 x 42.5 x 138.5cm for storage.

The system hooks over and under your T4's rear doors using the supplied brackets, each fitted with protective plastic supports to prevent paintwork damage. The telescopic design allows vertical adjustment within the 138.5cm wheelbase range to match your door configuration perfectly.

Upper brackets: Designed to follow the shape of the vehicle

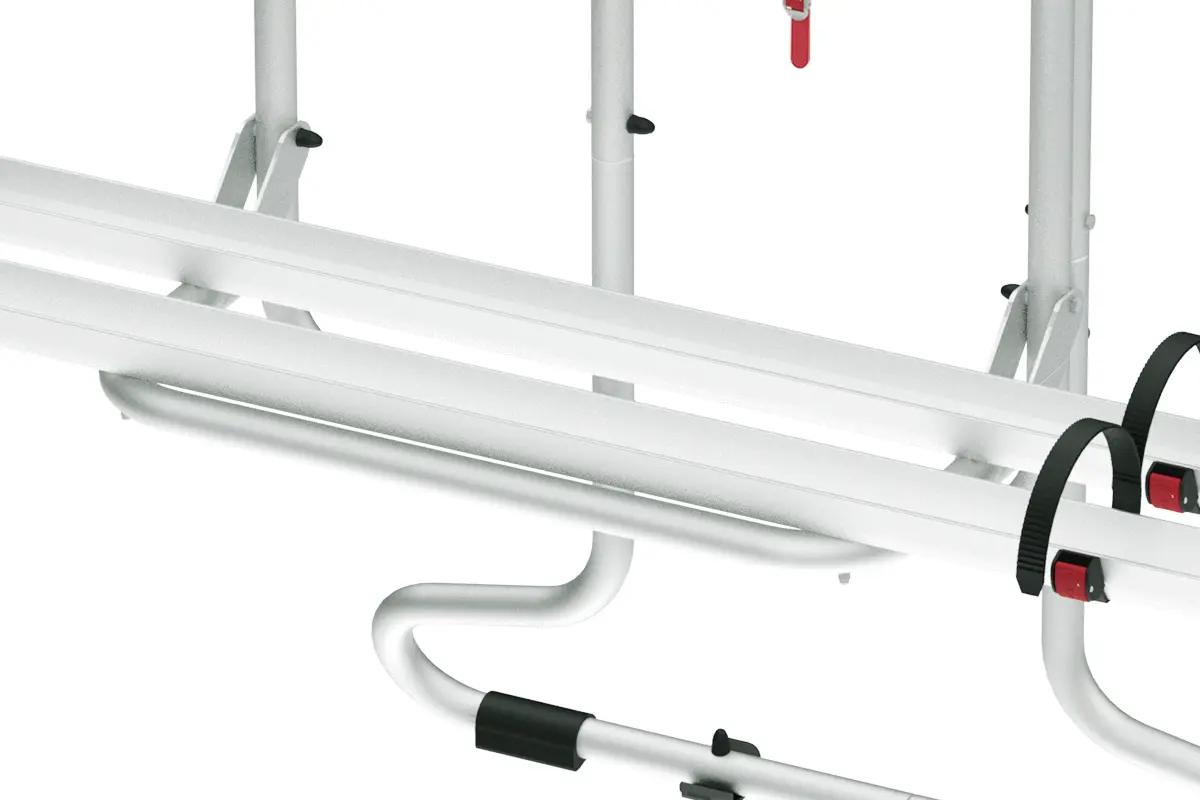

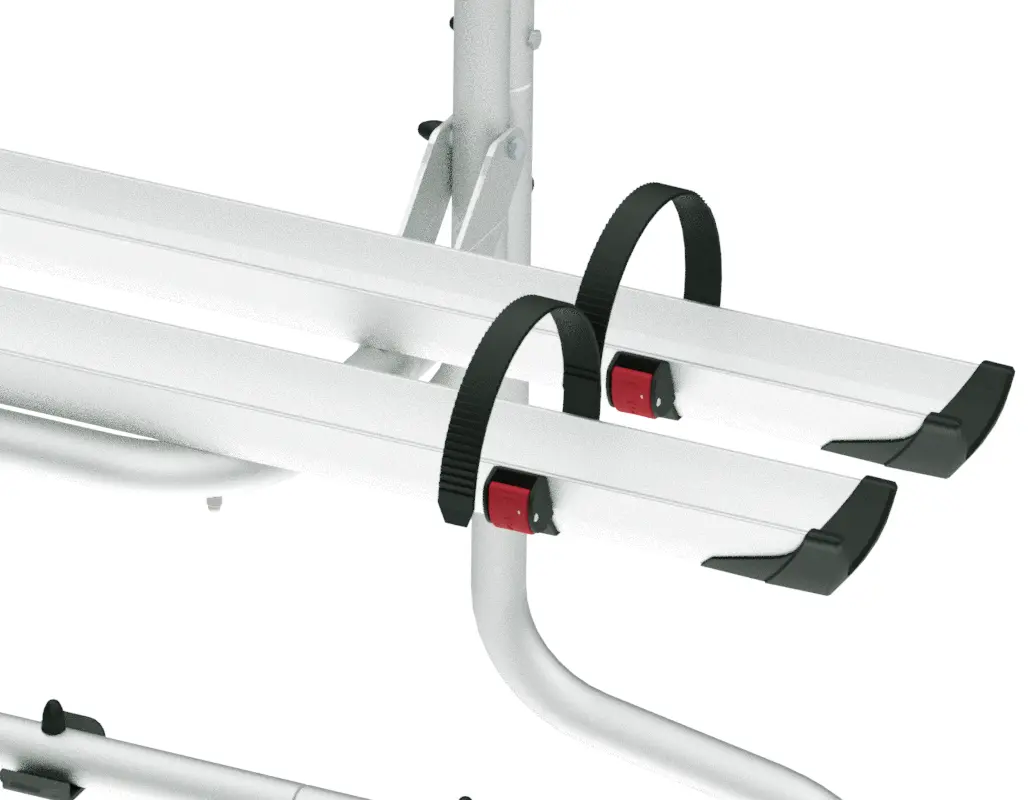

Rail Plus: New design for increased torsion and flexural strength

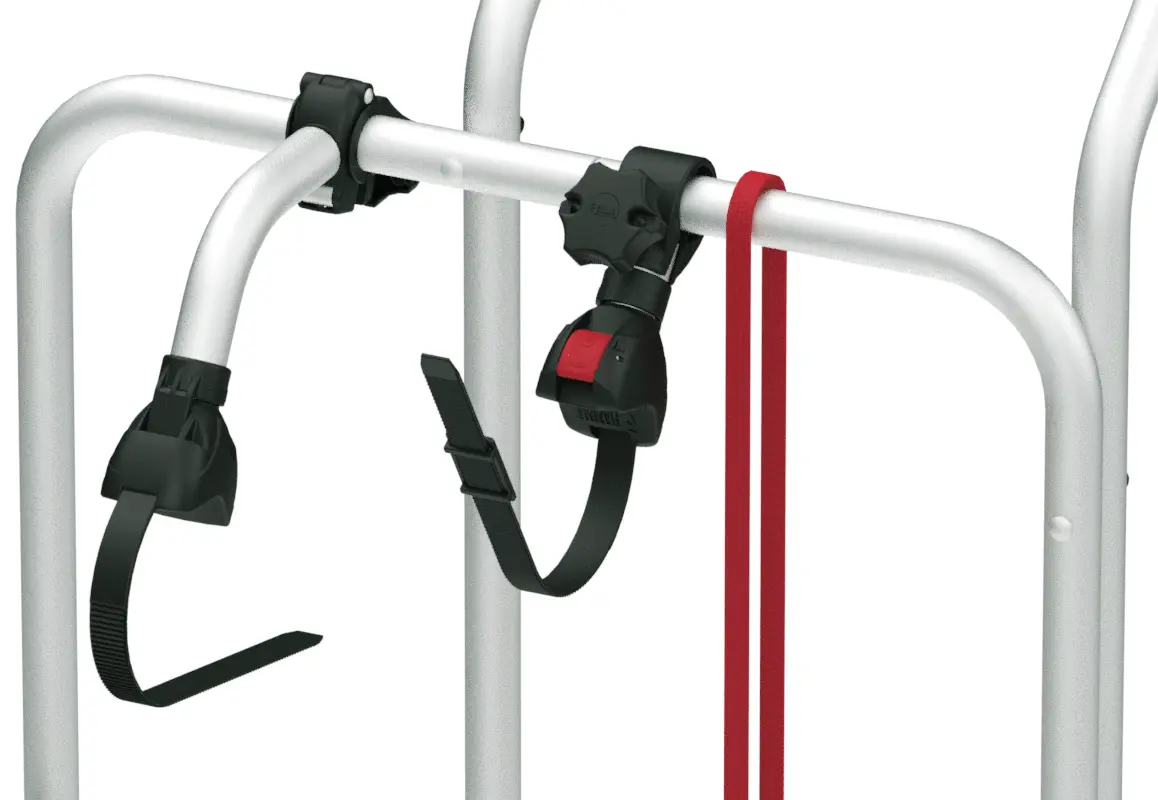

Bike-Block: To securely lock the bike
Rail support base: In aluminium, for transporting 2 bikes
Installation: On the rear double door

Frequently Asked Questions

Will the Fiamma Carry-Bike V T4 D fit my T4 with double rear doors?

This carrier is designed specifically for VW T4 campervans manufactured between 1990 and 2003 with double rear doors. It fits T4 California, Coach, Caravelle and Multivan models with split rear door configuration. The 35cm horizontal wheelbase and 138.5cm vertical wheelbase match the standard T4 double door reinforcement points. This model is not suitable for high-top conversions or vehicles with a single tailgate.

Does the Fiamma T4 D bike rack require drilling into my van?

No drilling is required for installation. The carrier hooks over and under the rear door panels using the supplied brackets that attach to existing reinforcement points on your T4. Each bracket includes a plastic support pad to protect your vehicle's paintwork during mounting and use. The telescopic rail support base made from AISI304 stainless steel and aluminium provides stability without permanent modifications to your campervan.

Can I open the T4 rear doors with the Fiamma bike carrier mounted?

Yes, you can open the tailgate with the Carry-Bike mounted when bikes are not loaded. The rack design allows door operation without removing the carrier from the vehicle. When bikes are fitted to the rails, you'll need to remove them before opening the doors. The rack holders keep the Rail Plus rails folded neatly against the doors when not carrying bikes, maintaining access to your van's rear storage area.

What is the maximum weight capacity of the Fiamma Carry-Bike V T4 D?

The Fiamma Carry-Bike V T4 D has a maximum load capacity of 35kg across both bikes. This is lower than the single door T4 model (which carries 60kg) because the double door configuration requires a different weight distribution. The carrier itself weighs 7.9kg and is rated for two standard bikes only, not e-bikes. The 15cm spacing between Rail Plus rails accommodates typical adult bike frame widths.

What bike locking systems are included with the T4 D carrier?

The carrier comes with Bike-Block Pro S 1 and Pro S 2 locking systems that secure your bike frames to the rails. These feature rotating end blocks that grip frames of different shapes and diameters. The package also includes two Rail Plus bike rails, a 2-metre Security Strip for additional theft protection, and rack holders to secure the rails when folded. The Pro S bike blocks are specifically designed for the Rail Plus system included with this model.

Can I carry e-bikes on the Fiamma Carry-Bike V T4 D?

No, this model is not rated for e-bikes. The 35kg maximum load capacity and double door mounting configuration make it suitable for standard bicycles only. E-bikes typically weigh between 20-30kg each, which would exceed the carrier's safe working limit. If you need to transport e-bikes on your T4, you'll need to consider alternative solutions designed for heavier electric bicycles with higher weight ratings.

Is the Fiamma Carry-Bike V T4 D TUV approved?

Yes, the Fiamma Carry-Bike V T4 D is TUV approved, meeting German safety and quality standards for vehicle-mounted bike carriers. This certification confirms the rack has been independently tested for structural integrity, load capacity and safe operation when properly installed. TUV approval is recognised across Europe and demonstrates compliance with relevant safety regulations for transporting bicycles on motorhomes and campervans.

EAN-13 : 8004815437367
