Fiamma Carry-Bike Vivaro Traffic Talento

£384.09(inc VAT) £460.99
?
View delivery optionsView product description
  Product Description

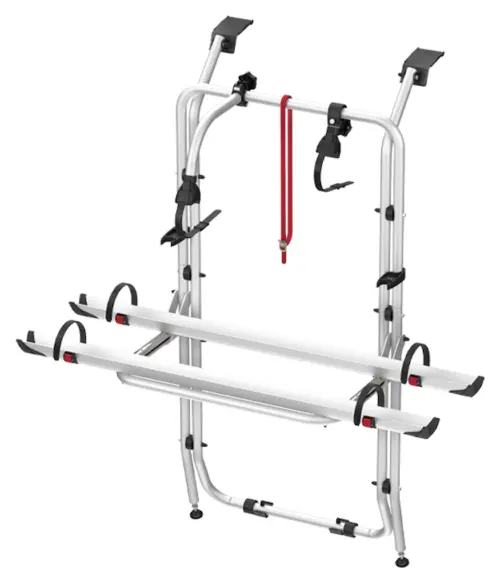

The Fiamma Carry-Bike Vivaro Trafic Talento is a tailgate-mounted bike carrier designed specifically for PSA group camper vans with single rear doors. It fits Renault Trafic II/III, Vauxhall Vivaro A/B, Opel Vivaro A/B, Nissan Primastar I/II, Nissan NV300, and Fiat Talento models with H1 low roof height. The rack carries two bikes as standard but expands to four bikes with optional Bike-Block Pro 2 and Pro 4 accessories, or handles two e-bikes using the included Rail Plus system. Installation requires no drilling, with brackets that hook over reinforced points on the tailgate.

How does the Fiamma Carry-Bike attach to Vivaro and Trafic vans?

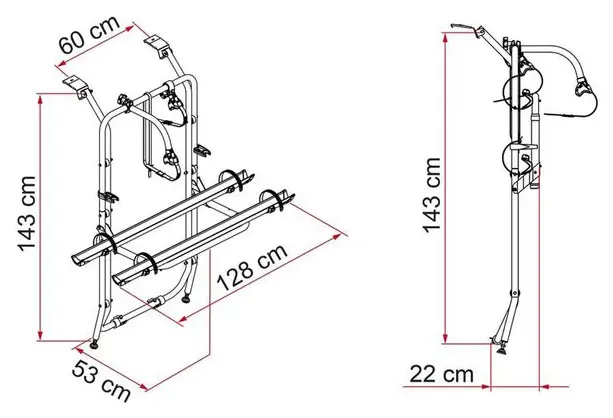

The carrier fixes to the single rear door using included brackets that hook over the tailgate's reinforced points without drilling. The telescopic rail support base is made from stainless steel and aluminium, with a 143cm vertical wheelbase and 60cm horizontal wheelbase. The 15cm distance between rails accommodates various bike frame sizes, and the door opens fully with the rack mounted when bikes are removed.

This bike carrier comes complete with one Bike-Block Pro 1, one Bike-Block Pro 3, security strip, two Rail Plus rails, and mounting brackets. The aluminium construction keeps the weight to 9.1kg whilst supporting a 60kg maximum load. The dimensions measure 128cm wide, 53cm deep, and 143cm high when the rail support base is in standard position. A licence plate carrier with control lighting is available separately as part number A0003481 to maintain legal compliance when the rack obscures your existing number plate.

The version suits vans built between 2001 and 2018 for Vivaro A/B models, 2001 to 2014 for Trafic II/Primastar I-II, and 2014 onwards for Trafic III/Talento/NV300. Each included Bike-Block Pro secures bikes to the Rail Plus system, preventing movement during travel. The telescopic rails adjust to fit different wheelbase lengths, from children's bikes through to adult frames. E-bike compatibility makes this rack suitable for heavier electric bicycles without requiring additional parts.

Fiamma Carry-Bike Vivaro Traffic Talento Features

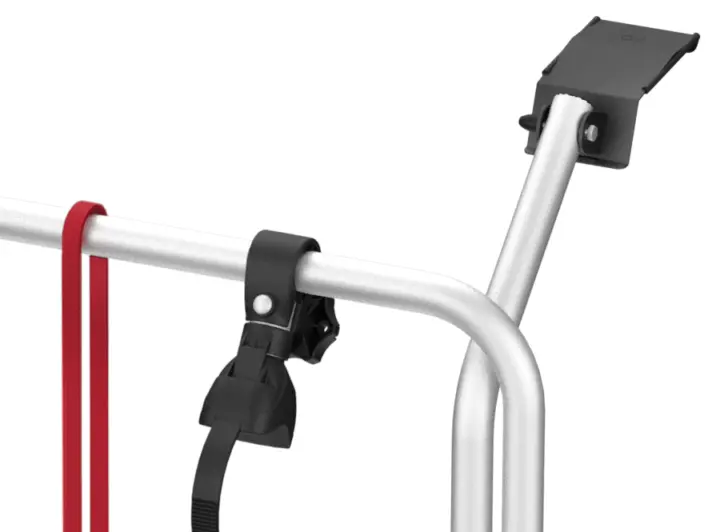

Upper brackets: Designed to follow the shape of the vehicle
Stabilisation system: To increase the safety of your bike carrier

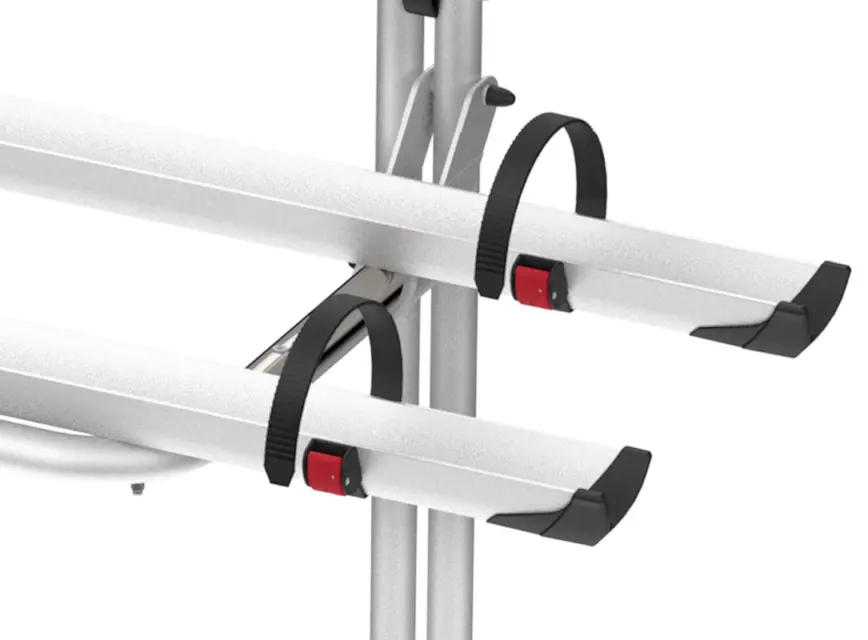

Rail Plus: New design for increased torsion and flexural strength
Bike-Block: To securely lock the bike
Rail support base: Steel for transporting up to 4 bikes
Installation: On the tailgate of the vehicle

Frequently Asked Questions

Which Vivaro and Trafic models does the 02096-72 Fiamma Carry-Bike fit?
The 02096-72 fits Renault Trafic II series, Vauxhall Vivaro A/B, Opel Vivaro A/B, Nissan Primastar I-II from 2001 to 2018, plus Renault Trafic III, Fiat Talento, and Nissan NV300 from 2014 onwards. All must have H1 low roof height and a single rear door. Vans with double rear doors require the D version (02096-74) instead. Check your van's body style before ordering as the brackets are model-specific.
Does the Fiamma Carry-Bike require drilling into the tailgate?

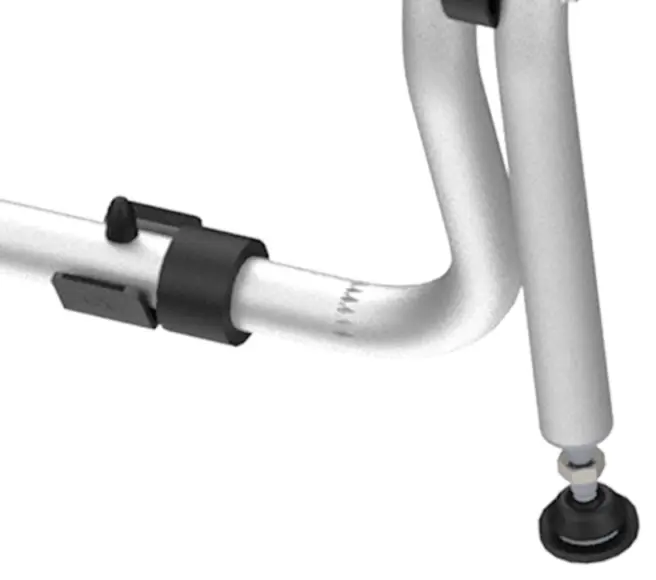

No drilling is required for installation. The upper brackets hook over the reinforced points at the top of the tailgate, and the lower mounting sits against the bottom section of the door. The telescopic rail support base is made from stainless steel and provides stability without permanent modification to the van. This fitting method allows removal if needed and protects the vehicle's resale value by avoiding holes in the bodywork.
How do I expand from 2 bikes to 4 bikes on the Fiamma Vivaro carrier?
The rack comes with Bike-Block Pro 1 and Pro 3 as standard for two bikes. To carry four bikes, add Bike-Block Pro 2 and Bike-Block Pro 4 which attach to the existing Rail Plus system. The 60kg maximum load applies when carrying four bikes, so weight distribution across all bikes must stay within this limit. Each bike position secures independently to prevent contact between frames during transit.
Will the tailgate open with the Fiamma Carry-Bike mounted?
The tailgate opens fully when the bike carrier is mounted but only when bikes are removed from the rack. This feature lets you access the rear of the van without uninstalling the entire carrier system. The brackets stay attached to the door and move with it during opening. When bikes are loaded, they must be removed before opening the tailgate to prevent damage to the bikes, rack, or van door.
What is the difference between Rail Plus and standard Fiamma bike rails?
Rail Plus is Fiamma's upgraded rail system included with this carrier, designed to handle the weight and frame geometry of e-bikes without additional parts. Standard rails on older Fiamma models required upgrades for e-bike use, but Rail Plus supports two e-bikes up to 60kg total as supplied. The rails feature a 15cm spacing between them and work with the telescopic stainless steel support base that adjusts to different wheelbase lengths from 143cm vertical height.
Do I need a licence plate carrier with the Fiamma Vivaro bike rack?
A licence plate carrier is legally required if the bike rack obscures your existing number plate when viewed from behind the vehicle. Fiamma offers a licence plate carrier as an optional accessory, which includes control lighting to keep the registration visible and illuminated. The carrier mounts to the bike rack framework and connects to the vehicle's electrical system. Check your van's plate position relative to where the bikes sit to determine if this accessory is needed for road legal compliance.
EAN-13 : 8004815437398
