Fiamma Carry-Bike VW T5 D / T6 D

£394.99(inc VAT) £524.99
?
View delivery optionsView product description
  Product Description

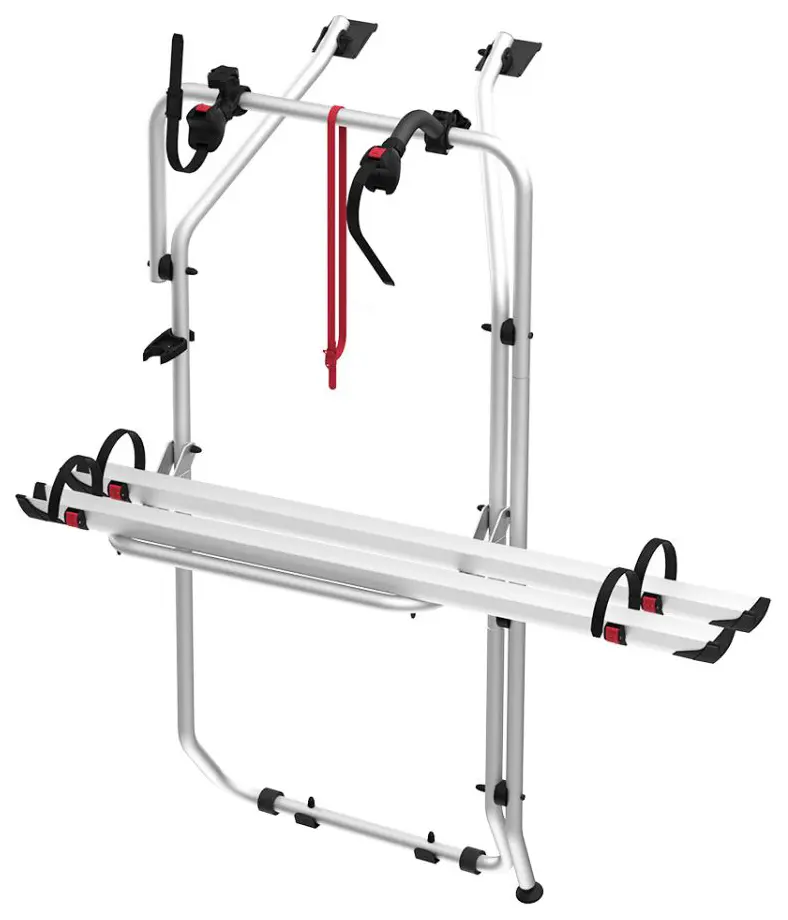

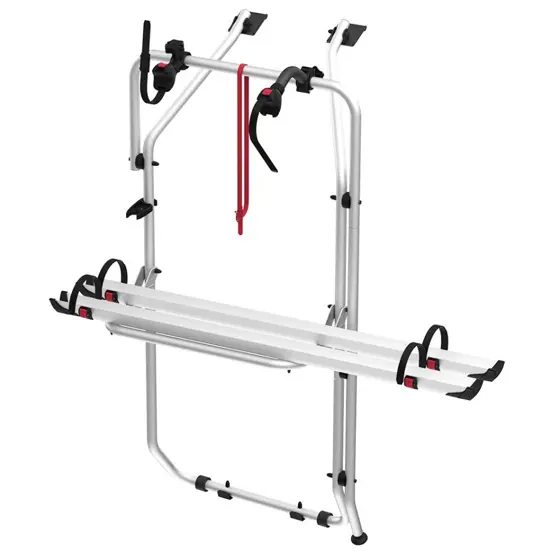

The Fiamma Carry-Bike VW T5 D / T6 D provides a dedicated bike transport solution for VW Transporter, Caravelle, and Multivan models with twin rear doors. This drill-free installation system attaches directly to your vehicle using specially designed brackets that secure to the double door configuration found on T5 models from 2003 to 2014, T6 models from 2014 onwards, and T6.1 variants. Weighing 7.1kg, the carrier itself adds minimal extra weight while offering a 35kg maximum load capacity across its dual Rail Plus system, accommodating two standard bikes.

Will the Fiamma Carry-Bike let me open my tailgate with bikes loaded?

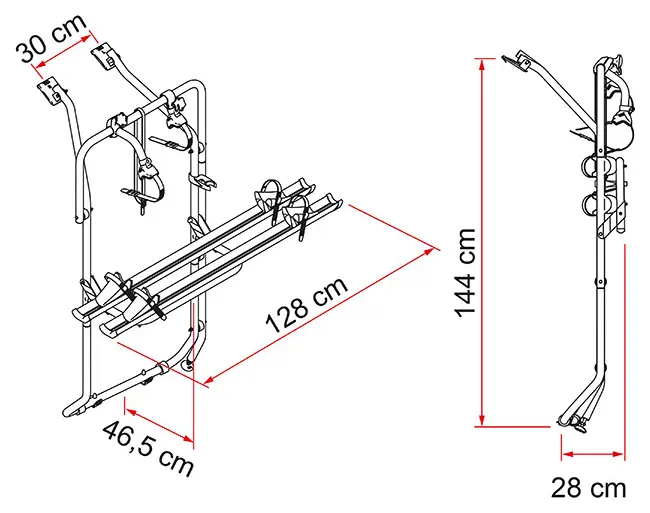

No, you need to remove the bikes before opening the tailgate. The unique design does allow full tailgate access when the carrier is mounted but without bikes attached, which makes it convenient for quick stops. The telescopic rail support base combines AISI304 stainless steel with aluminium construction, measuring 128 x 46.5 x 144cm when configured in the standard open position with minimum adjustable vertical wheelbase of 138cm.

Installation takes place without permanent modifications to your van. The system includes two Bike-Block Pro S units (Pro S 1 and Pro S 2) that secure bikes using the included Security Strip, while the 15cm spacing between rails provides adequate separation for standard bike frames. The 60cm horizontal wheelbase between mounting brackets distributes weight evenly across the door structure, and the 144cm vertical wheelbase accommodates adult bikes comfortably.

The carrier ships complete with everything needed for immediate fitment: two Rail Plus components, mounting brackets, both Bike-Block Pro S locking systems, and the Security Strip. An optional licence plate carrier is available separately if your bikes obstruct rear visibility when loaded. The system handles bikes with wheelbases fitting within the 138cm vertical adjustment range but isn't rated for e-bikes due to their additional weight beyond the 35kg total capacity.

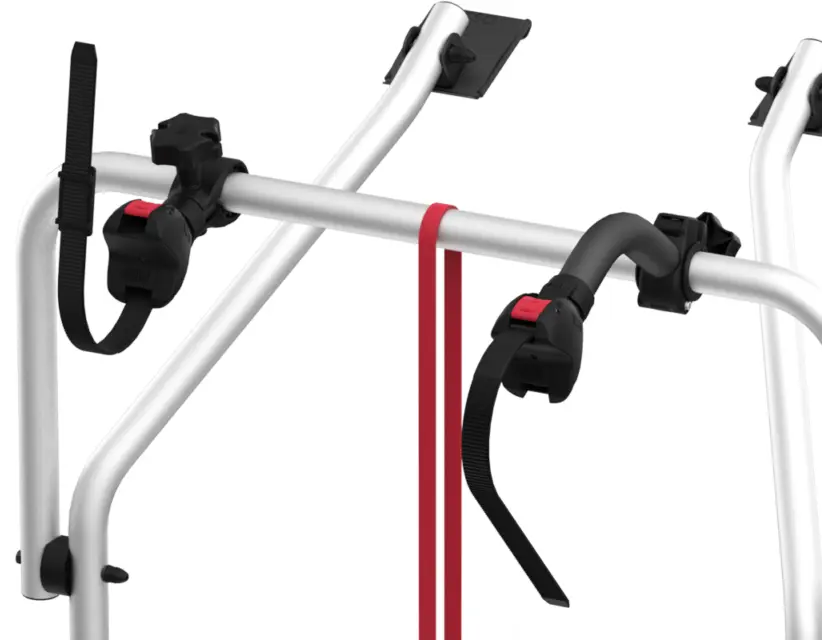

Upper brackets: Designed to follow the shape of the vehicle

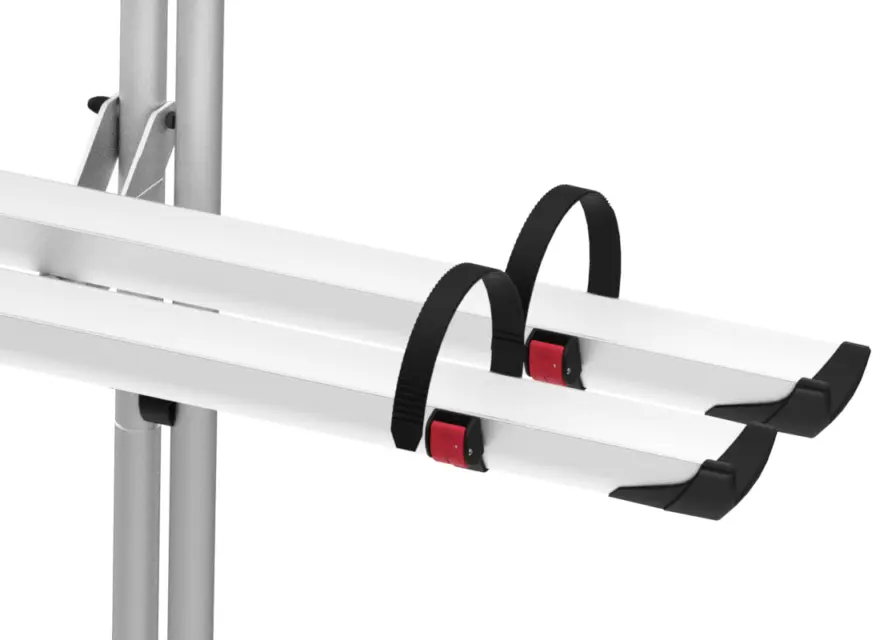

Rail Plus: New design for increased torsion and flexural strength

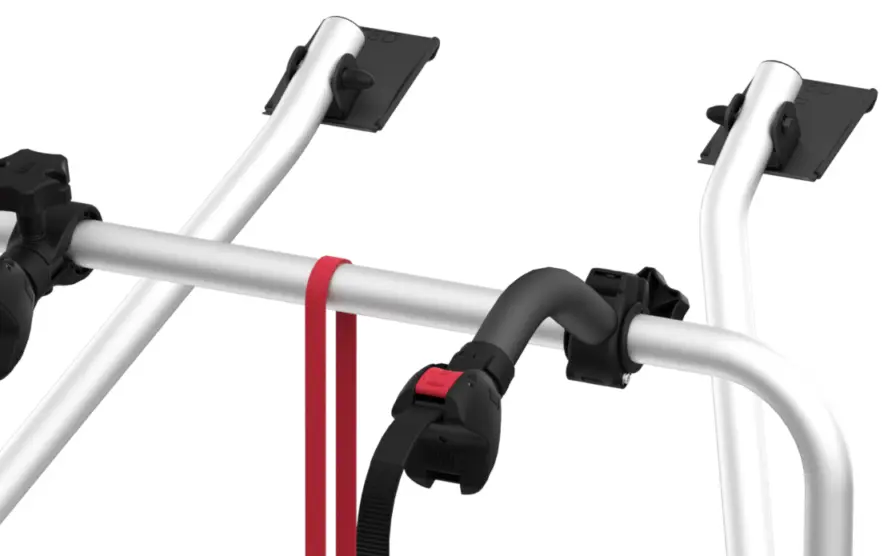

Bike-Block: To securely lock the bike
Two versions available: In aluminium and black painted aluminium
Installation: On the vehicle’s double door

Frequently Asked Questions

Which VW Transporter models does the Fiamma Carry-Bike VW T5 D / T6 D fit?
This carrier fits VW Transporter T5, T5 Caravelle, and T5 Multivan models manufactured between 2003 and 2014, plus VW Transporter T6, T6 Caravelle, and T6 Multivan from 2014 onwards, and VW T6.1 variants. The key requirement is twin rear doors rather than a single tailgate. It does not fit models with rear spoilers or single lift-up tailgates, which require different Fiamma Carry-Bike variants.
Do I need to drill holes in my van to fit this bike carrier?
No drilling is required. The Fiamma Carry-Bike VW T5 D / T6 D uses specially designed brackets that attach directly to your vehicle's double door configuration without permanent modifications. The mounting system hooks onto the existing door structure using the supplied brackets, making installation reversible if you need to remove the carrier or sell your vehicle later.
How many bikes does the Fiamma VW T5 T6 D carrier hold?
The carrier holds 2 standard bikes as both its standard and maximum capacity, with a combined weight limit of 35kg. Unlike some other Fiamma Carry-Bike models that expand to carry 3 or 4 bikes, this specific T5 D / T6 D version is designed exclusively for 2 bikes. Each bike secures using the included Bike-Block Pro S 1 and Bike-Block Pro S 2 locking systems with 15cm rail spacing.
Will this bike rack carry electric bikes or e-bikes?
No, this model is not rated for e-bikes. The 35kg maximum load capacity and standard Rail Plus system are designed for conventional bicycles only. E-bikes typically weigh 20-30kg each, which would exceed the carrier's weight rating with just one bike loaded. For electric bike transport on VW vans, Fiamma produces alternative models with Rail Premium E-Bike components and higher weight capacities.
Does the carrier let me open the rear doors with bikes attached?
You need to remove bikes before opening the tailgate. When the carrier is mounted without bikes, you have full tailgate access, which is useful for quick stops or overnight parking. The telescopic rail support base stays in position on the doors, and you only need to lift off the bikes from the Bike-Block Pro S units to regain access to your van's rear storage area.
What bike sizes fit the Fiamma T5 T6 D carrier?
The carrier accommodates bikes with wheelbases up to 138cm vertically and 60cm horizontally between wheel contact points. This covers most adult mountain bikes, road bikes, and hybrid bikes. The adjustable telescopic rail system lets you modify spacing to suit different frame sizes, while the 15cm distance between the two rails prevents handlebar and pedal interference between bikes when both are loaded.
What components are included with the Fiamma Carry-Bike VW T5 D / T6 D?
The package includes 1 x Bike-Block Pro S 1, 1 x Bike-Block Pro S 2, Security Strip, 2 x Rail Plus components, and mounting brackets for twin door installation. The telescopic rail support base combines AISI304 stainless steel with aluminium construction. A licence plate carrier is available as an optional extra and sold separately, which you'll need if loaded bikes obscure your registration plate from behind.
EAN-13 : 8004815437268
