Instructions

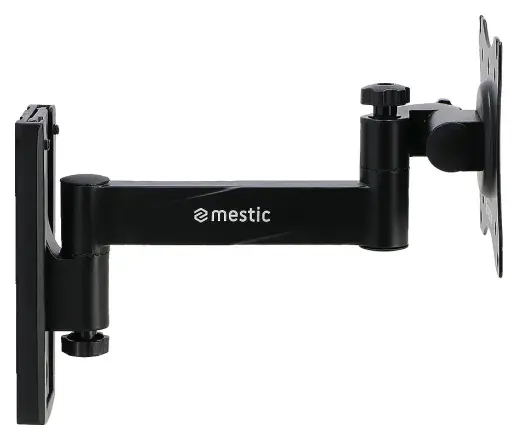

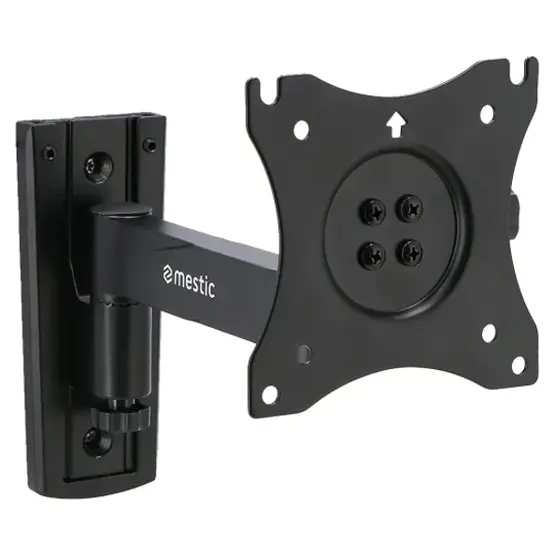

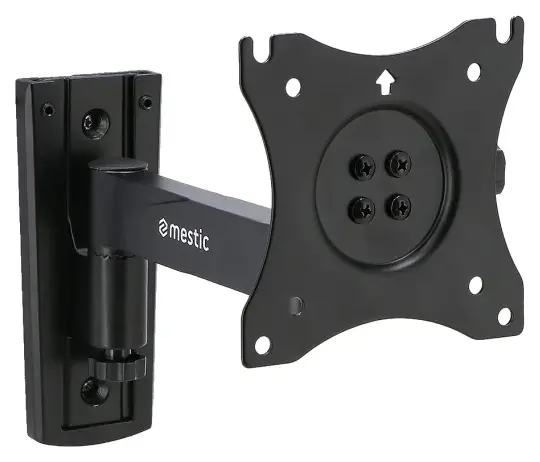

Mestic TV Wall Bracket MTVB-20

£25.99 (inc VAT) 29.95
BRAND : Mestic
?
10   20   30   Product Ref: 296241
View delivery optionsView product description
  Delivery from £8.99
Loading...  Loading shipping details...
  Product Description
The Mestic TV Wall Bracket MTVB-20 is a compact, solid bracket designed for mounting a TV or monitor securely in your caravan, motorhome or campervan. With a neat black finish and VESA 75 x 75 and 100 x 100 compatibility, it suits many smaller screens used on tour. Its travel friendly design keeps your screen stable on the move, while still giving you flexibility when you are pitched up.??

This bracket is lockable in all positions, so once you have set the viewing angle you want, it stays put while driving and during everyday use. The maximum load of 15 kg is more than enough for most 15 to 24 inch caravan and motorhome TVs that use these VESA patterns, giving you a reassuring margin. At only 1.3 kg and with compact dimensions of 23.5 x 8 x 15 cm, it suits lighter interior walls often found in leisure vehicles without taking up unnecessary space.??

The MTVB-20 also includes practical touches like a lockable mechanism that helps reduce vibration and movement in transit, which is especially useful on uneven roads or rough campsite tracks. It is finished in black to blend in with most TV frames and interior fittings and comes backed by a 2 year warranty and RHOS quality mark for added peace of mind.

Mestic TV Wall Bracket MTVB-20 Features


  • Lockable in all positions for secure travel and fixed viewing angles.??
  • Compatible with VESA 75 x 75 and 100 x 100 mounts, ideal for smaller caravan and motorhome TVs.??
  • 15 kg maximum load to comfortably support typical 12 V and mains TVs used in leisure vehicles.??
  • Lightweight 1.3 kg construction with compact 23.5 x 8 x 15 cm footprint for space saving installation.?
  • RHOS quality mark and 2 year warranty for added confidence in long term use.?

Specifications
  • Model: MTVB-20?
  • Colour: Black?
  • VESA compatibility: 75 x 75 mm and 100 x 100 mm??
  • Locking: Lockable in all positions??
  • Maximum load: 15 kg??
  • Product weight: 1.3 kg?
  • Dimensions (H x W x D): 23.5 x 8 x 15 cm?
  • Warranty: 2 years??
  • Quality mark: RHOS

Frequently Asked Questions

What VESA sizes does the Mestic MTVB-20 support?
The MTVB-20 is compatible with VESA 75 x 75 mm and 100 x 100 mm mounting patterns. These are the most common VESA sizes for smaller caravan and motorhome TVs between 15 and 24 inches. You can check your TV's VESA pattern by measuring the distance between the mounting holes on the back of the screen in millimetres.
What does lockable in all positions mean on this bracket?
The lockable mechanism on the MTVB-20 allows you to adjust the viewing angle and then secure it firmly in place. Once locked, the bracket prevents the TV from moving or vibrating during travel, which is important when driving on uneven roads or rough tracks. This feature protects both the TV and the bracket from damage caused by movement while your caravan or motorhome is in transit.
Can I install the MTVB-20 on thin caravan walls?
The MTVB-20 weighs only 1.3 kg and has a maximum load capacity of 15 kg, making it suitable for lighter caravan and motorhome walls. For the strongest installation, locate areas with reinforcement such as where existing shelves or cabinets are mounted, as these sections have bracing to support extra weight. Use appropriate fixings designed for hollow or composite caravan walls, such as spreader plates or specialist anchors, to distribute the load and prevent damage to the wall structure.
What size TV will the MTVB-20 hold safely?
The MTVB-20 has a maximum load capacity of 15 kg and supports VESA 75 x 75 and 100 x 100 mounting patterns. This makes it suitable for most caravan and motorhome TVs between 15 and 24 inches, including both 12 volt and mains powered models. Always check that your TV weighs less than 15 kg and has a compatible VESA pattern before purchasing the bracket.
Does the Mestic MTVB-20 come with fixings and a warranty?
The MTVB-20 comes with a 2 year warranty and carries the RHOS quality mark for reliability. Fixings are typically included with the bracket, but the type of fixing needed depends on your specific wall construction. For caravan and motorhome walls, you may need to use specialist fixings designed for thin or hollow panels to distribute the weight safely and prevent damage to the wall.
