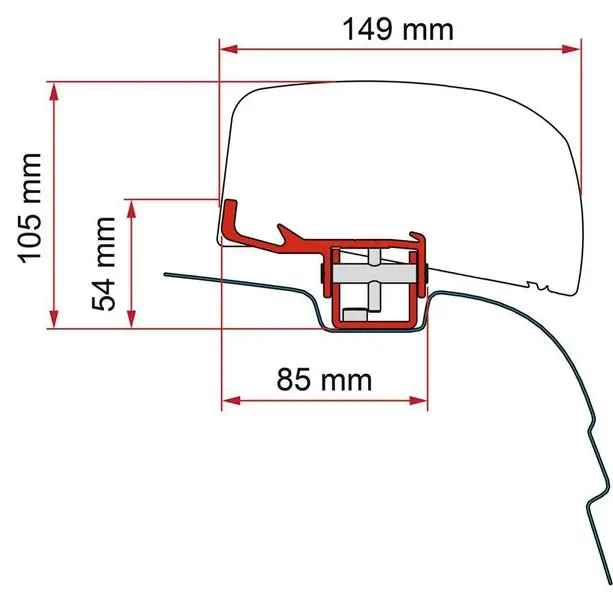

The Fiamma 98655Z153 adaptor solves the specific challenge faced by right-hand drive VW T5 and T6 owners who want to fit an F40 awning on the UK kerbside of their van. This bracket kit contains two precision-engineered aluminium mounting pieces – one measuring 20cm and another at 25cm – designed to bridge the gap between Fiamma's standard F40 awning rail and the factory roof profile of H1 height vans without the optional C-profile roof rail. Compatible with VW T5 Transporter, Caravelle, and Multivan models from 2003 to 2014, plus all T6 variants from 2014 onwards including long wheelbase versions, this Italian-manufactured fitting solution works exclusively with the F40 awning range and supersedes the older 98655Z038 reference.
Installing an awning on the right side of these vans requires vehicle-specific brackets because the roof profile differs from left-hand drive European variants. Without this adaptor, the standard F40 fitting won't sit flush against the roofline, creating potential water ingress points and compromising the awning's stability. The 2023 restyled version addresses earlier design limitations whilst maintaining compatibility with existing F40 awning models. The combined dimensions of 240mm height, 190mm width, and 130mm depth mean these brackets work with H1 roof height specifications (the standard van roof before any pop-top or elevating roof conversions). Professional installation takes around two hours and involves drilling into the van's roof structure, so most owners opt for experienced fitters familiar with VW roof profiles and Fiamma's mounting requirements.
This adaptor specifically excludes vans fitted with factory C-profile roof rails – those vehicles need different mounting hardware altogether. The L1 length specification refers to the standard wheelbase versions, though T6 long wheelbase owners can use this same kit. Fiamma's direct manufacturing in Italy maintains consistent quality standards across their bracket range, with this adaptor forming part of their wider F40 awning ecosystem that includes various vehicle-specific fittings. If you're running a T5 or T6 as a campervan conversion or daily driver with occasional camping trips, this bracket set enables you to add wind-out shade without permanent bodywork modifications beyond the necessary roof fixings.
Fiamma Adaptor for F40 Awning on VW T5/T6 RHD (98655Z153) Features
Restyled 2023 model
Specifications
Suitable For : Volkswagen T6
Replaces : Fiamma 98655Z038 (Nova 17742)
Height Description : 240mm
Width : 190mm
Depth : 130mm
Application : Volkswagen
Country of Origin : Italy
Frequently Asked Questions
Will this Fiamma adaptor fit my VW T5 or T6 van?
This adaptor fits right-hand drive VW T5 Transporter, Caravelle, and Multivan models from 2003 to 2014, plus all VW T6 versions from 2014 onwards including long wheelbase variants. Your van must have H1 standard roof height and cannot have factory-fitted C-profile roof rails. If your van has an elevating roof or pop-top conversion, you'll need different mounting hardware. The L1 wheelbase specification covers standard length vans, but T6 long wheelbase owners can use this same kit.
What's the difference between this 98655Z153 and the older 98655Z038 adaptor?
The 98655Z153 is Fiamma's 2023 restyled version that supersedes the 98655Z038 reference. The updated design addresses earlier limitations whilst maintaining the same vehicle compatibility and F40 awning fitment. Both adaptors serve the same purpose of enabling F40 awning installation on UK right-hand drive VW T5 and T6 vans, but the newer version incorporates improved manufacturing tolerances and updated mounting geometry.
Why do I need specific brackets for the UK side of my VW van?
Right-hand drive VW vans have a different roof profile on the kerbside compared to left-hand drive European models. Standard F40 awning fittings designed for continental vans won't sit flush against UK van rooflines, creating gaps that compromise weatherproofing and awning stability. These vehicle-specific brackets bridge the dimensional differences between Fiamma's F40 mounting rail and your van's actual roof contours, providing secure attachment points that match the factory roof pressing.
Can I fit this Fiamma adaptor myself or do I need professional installation?
Installation requires drilling into your van's roof structure to create secure fixing points for the brackets and awning rail. You'll need experience with vehicle bodywork, proper drill bits for aluminium and steel, sealants rated for automotive use, and accurate measurement skills to position the awning rail level. Professional fitters typically complete the job in two hours and understand VW roof construction, including where reinforcement struts sit and how to avoid compromising structural integrity. Most owners choose experienced installers who regularly fit Fiamma awnings to VW vans.
What size F40 awning can I fit with these adaptors?
These brackets work with all Fiamma F40 awning lengths from 1.9 metres up to 4.5 metres. The adaptor's job is to create the correct mounting platform between your van roof and the F40's standard fitting channel, so awning size selection depends on your van length and how much coverage you want. On a standard wheelbase T5 or T6, most owners fit 2.6 to 3.5 metre awnings. Long wheelbase T6 vans can accommodate up to 4 metre F40 awnings whilst maintaining proper support along the mounting rail.
Does this adaptor work with pop-top or elevating roof conversions?
No, this adaptor is specifically designed for H1 standard roof height VW T5 and T6 vans without any elevating roof modifications. Vans with pop-top conversions, elevating roofs, or high-top conversions have completely different roof structures and require alternative mounting solutions. The 240mm height specification of these brackets corresponds to the factory roof profile of unmodified H1 vans. If you've had a pop-top fitted, contact your conversion company about compatible awning mounting options.
What does the C-profile roof rail exclusion mean for my van?
Some VW T5 and T6 vans came with optional factory-fitted C-profile roof rails running lengthways along the roof edges. These raised aluminium channels allow roof bars and roof boxes to clip in without drilling. If your van has these C-profile rails fitted from the factory, this adaptor won't work because the roof geometry is different. Vans with C-profile rails need specific Fiamma mounting kits that attach to those rail systems rather than directly to the roof panel. Check your van roof – if you see raised aluminium rails running front to back, you have C-profile rails.
Why does the kit include two different length brackets?
The VW T5 and T6 roof profile isn't uniform across its width. The roof curves and changes angle as it meets the side panels, so Fiamma provides a 20cm bracket and a 25cm bracket to accommodate these dimensional variations. The different lengths create level mounting points for the F40 awning rail despite the roof's changing contours. During installation, fitters position each bracket at specific points along the roof where those lengths provide correct height alignment for the awning rail to sit parallel to the van body.
