Fiamma F80s Bracket Kit for Ford Transit H2-L3 Vehicles (98655Z167)

Name: Fiamma F80s Bracket Kit for Ford Transit H2-L3 Vehicles (98655Z167)
Brand: Fiamma
SKU: 296930
Price: 165.99 GBP
Availability: InStock

Product Ref: 296930
Fiamma Code : 98655Z167

£165.99(inc VAT) £215.99Product Ref: 296930
Fiamma Code : 98655Z167

View delivery optionsView product description

Delivery from £7.99
Loading stock details...

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

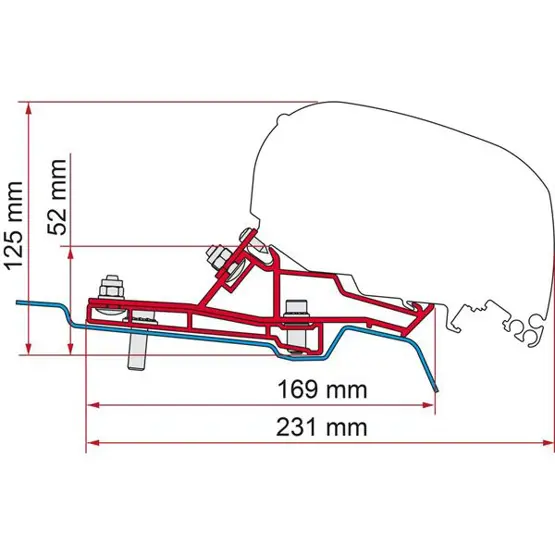

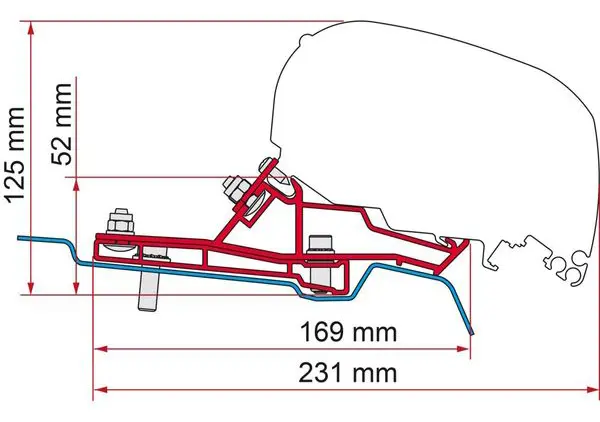

This Fiamma bracket kit allows you to mount an F80s wind-out awning directly onto Ford Transit H2-L3 vans, specifically designed for left-hand drive vehicles. The kit includes a single 320cm aluminium bracket that's been engineered to match the roofline curvature of these particular Transit dimensions, ensuring the awning sits flush and secure against the bodywork. Installation requires drilling into the van's roof structure, so you'll need to plan your positioning carefully and consider whether you want to work with a professional fitter or tackle it yourself with appropriate sealants and fixings.

Ford Transit conversions have become incredibly popular for campervan builds, and the H2 roof height with L3 length provides enough clearance and space to make an F80s awning worthwhile without looking oversized. The 320cm bracket length corresponds to the standard F80s sizes that work well on this van configuration, typically supporting awning widths between 260cm and 340cm. You'll find this bracket positions the awning high enough to clear side doors and sliding panels whilst maintaining proper rain runoff angles.

Fiamma manufactures these brackets in Italy specifically for vehicle-mounted awnings rather than generic roof bars, which means the profile and fixing points account for wind loading and the dynamic stresses that come from driving rather than static caravan installation. The kit works exclusively with F80s awnings (not the F45 or F65 ranges), so double-check your awning model before ordering. You'll also need to purchase the awning separately, plus you might want Fiamma's security brackets and tension rafters depending on how exposed your typical parking spots tend to be.

Specifications

Application : Ford
Country of Origin : Italy

Frequently Asked Questions

Will this bracket fit right-hand drive Ford Transit vans?

No, this particular bracket kit (98655Z167) has been designed specifically for left-hand drive Ford Transit H2-L3 vehicles. The mounting geometry and bracket profile account for LHD roof pressings and panel positions. Right-hand drive Transit owners need a different part number that mirrors the mounting points for UK and other RHD market vans.

What does H2-L3 mean on Ford Transit specifications?

H2 refers to the roof height (medium-high roof at approximately 2.52m total vehicle height), whilst L3 indicates the wheelbase length (long wheelbase at around 3.5m). Ford uses this coding system across their Transit range to identify different body configurations. You'll find these codes on your V5 registration document or stamped on the vehicle identification plate, usually located in the driver's door aperture.

Can I fit an F45 or F65 awning using this bracket?

No, this bracket only works with Fiamma F80s awnings. The F80s uses a different mounting rail profile and fixing mechanism compared to the F45 and F65 ranges. The F80s rail has a deeper profile that requires this specific bracket design to create the proper mounting surface and load distribution across the Transit roof structure.

Do I need any additional parts to complete the installation?

You'll need the F80s awning itself (sold separately), plus appropriate fixings, sikaflex or equivalent polyurethane sealant, and possibly end caps depending on your awning width versus the 320cm bracket length. Many installers also add Fiamma security brackets to prevent theft and tension rafters for additional stability in windy conditions. The bracket kit provides the mounting rail but doesn't include drilling templates or detailed fitting instructions for your specific van layout.

What length F80s awning works with the 320cm bracket?

The 320cm bracket typically accommodates F80s awnings between 260cm and 340cm projection. The bracket should extend slightly beyond the awning ends on each side for proper load distribution and to prevent stress concentration at the mounting points. For a Transit L3, most converters opt for a 300cm or 320cm awning width which provides good coverage without overhanging the van body excessively.

Will fitting this bracket affect my van warranty?

Drilling into the roof structure and penetrating the factory paint and weather seals typically affects warranty coverage for water ingress and corrosion in the modified areas. Ford's warranty terms usually allow modifications but won't cover damage resulting from aftermarket installations. Professional converters who specialise in Transit camper builds often provide their own workmanship warranties that cover the installation integrity, though you'd need to check what your specific installer offers.
