Fiamma F80s Bracket Kit for Ford Transit H3-L3 RHD Vehicles

£164.99(inc VAT) £214.99
View delivery optionsView product description
  Product Description

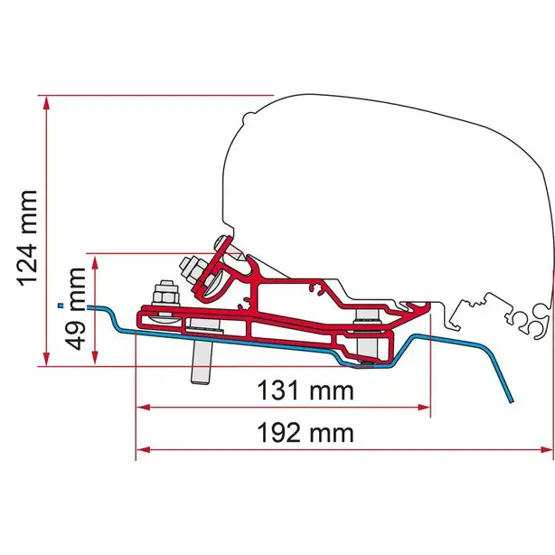

This Fiamma bracket kit is specifically engineered for mounting the F80s awning onto Ford Transit H3-L3 right-hand drive vehicles. The kit includes a single 320cm aluminium bracket that runs along the vehicle's roofline, providing the structural mounting points needed for the F80s awning system. It's designed to work with the high roof (H3) and long wheelbase (L3) Transit configuration, accounting for the unique body curves and mounting requirements of right-hand drive models where the sliding door sits on the nearside.

Ford Transit campervan converters and motorhome builders rely on this bracket when fitting Fiamma F80s awnings because it's been tested against the specific roof radius and door placement of H3-L3 Transits. The 320cm length matches the standard F80s awning sizes that work best on this van type, typically accommodating 260cm to 320cm F80s units. Installation requires drilling through the vehicle roof, so most people either have their converter fit it during the build or get a mobile technician to handle the fitting. The bracket creates a weatherproof seal when installed correctly with the appropriate sealant.

This isn't compatible with other Ford Transit variants like the H2 medium roof or L2 medium wheelbase versions, which need different bracket lengths and mounting angles. It's also RHD-specific because the door position affects where the awning sits relative to the vehicle's entry point. Fiamma manufactures these brackets in Italy, and they're constructed from the same grade of aluminium used across their awning hardware range. If you're retrofitting an F80s to an existing Transit conversion, you'll need this bracket plus the F80s awning itself, along with the standard Fiamma awning legs and tensioners that come with the awning kit.

Specifications
  • Application : Ford
  • Country of Origin : Italy

Frequently Asked Questions


Will this bracket fit a Ford Transit H2 medium roof?
No, this bracket is designed specifically for H3 high roof Transit models. The H2 medium roof has a different roof radius and requires a different bracket with altered mounting angles. Using the wrong bracket will result in poor fitment and potential water ingress issues.
Can I fit this bracket to a left-hand drive Transit?
This RHD version is engineered for right-hand drive Transits where the sliding door sits on the nearside. Left-hand drive Transits have the door on the opposite side, which affects awning positioning and bracket placement. You would need the LHD-specific version of this bracket.
What size F80s awning works with this 320cm bracket?
The 320cm bracket accommodates F80s awnings from 260cm up to 320cm in length. Most Transit H3-L3 conversions use either a 260cm or 300cm F80s awning, as these sizes provide good coverage without extending too far beyond the vehicle length. The bracket length needs to match or exceed the awning casing length.
Does this kit include everything needed to mount an F80s awning?
This bracket kit provides the roof-mounted rail that the F80s awning attaches to. You'll also need the F80s awning itself, which comes separately with its own mounting hardware, legs, and tensioning system. You'll need appropriate sealant like Sikaflex 252 or equivalent for weatherproofing the roof penetrations during installation.
Can I install this bracket myself or do I need a professional?
Installation requires drilling through the Transit roof and applying weatherproof sealant, so you need confidence working at height and experience with vehicle modifications. Most people have their campervan converter fit it during the build, or they use a mobile awning fitter who has the right tools and knows Transit roof construction. Poor installation leads to leaks and potential structural issues.
Is this bracket compatible with Fiamma F45 awnings?
No, this bracket is engineered specifically for the F80s awning system. The F45 and F80s have different mounting profiles and attachment mechanisms. The F45 typically uses a different bracket design. You must use the correct bracket type for your specific Fiamma awning model.
Will this work on a Transit Custom or Transit Connect?
No, the Transit Custom and Transit Connect are completely different vehicles with different roof profiles and dimensions. This bracket is manufactured specifically for the full-size Ford Transit in H3-L3 configuration. Each vehicle model requires its own specific Fiamma bracket kit that matches its roof shape and size.
