Fiamma Rollo Vent 40 Roller Blind

Name: Fiamma Rollo Vent 40 Roller Blind
Brand: Fiamma
SKU: 284940
Price: 40.64 GBP
Availability: InStock

Product Ref: 284940
Fiamma Code : 06310-02

£40.64(inc VAT) £48.99Product Ref: 284940
Fiamma Code : 06310-02

View delivery optionsView product description

Delivery : £9.99
Loading stock details...

Product Description

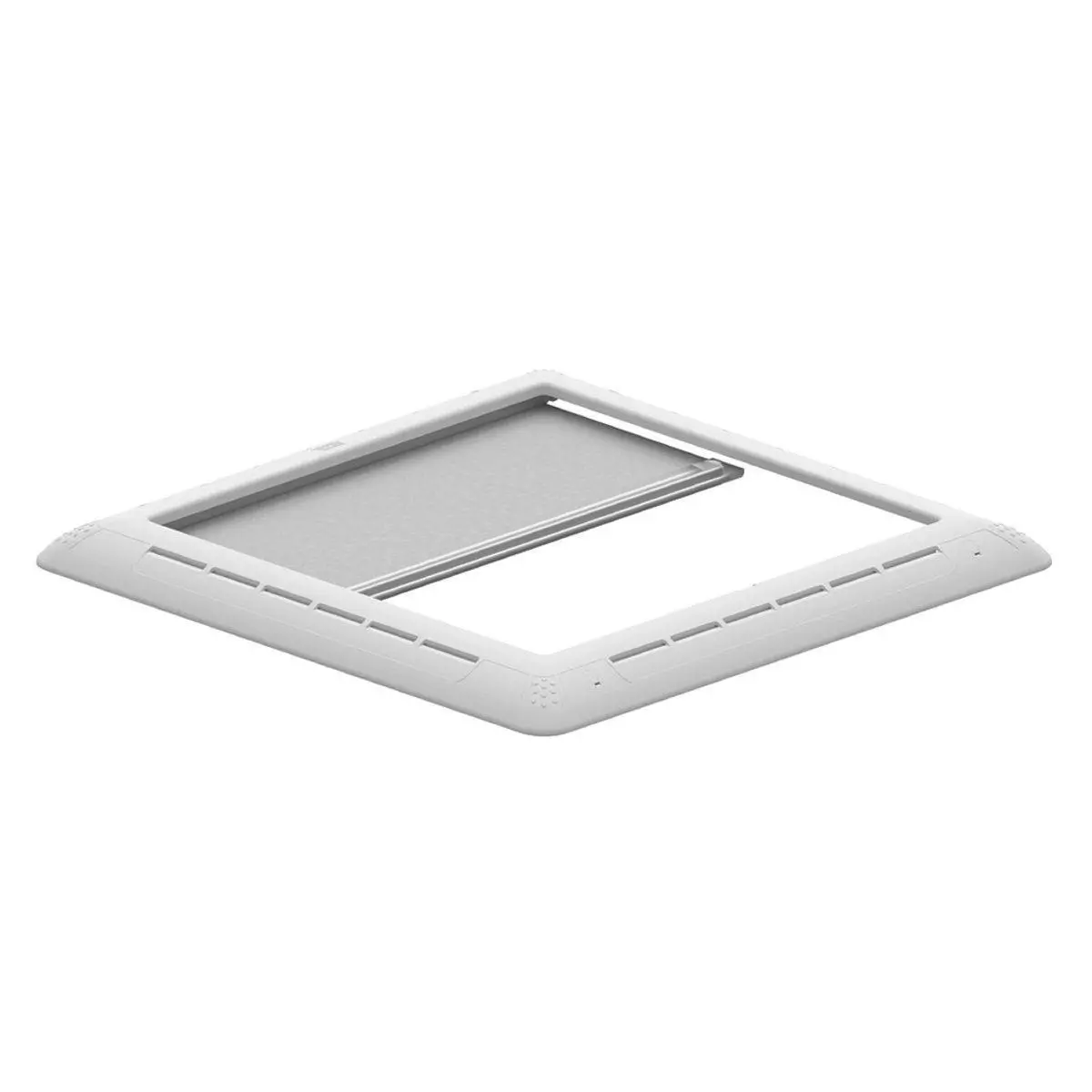

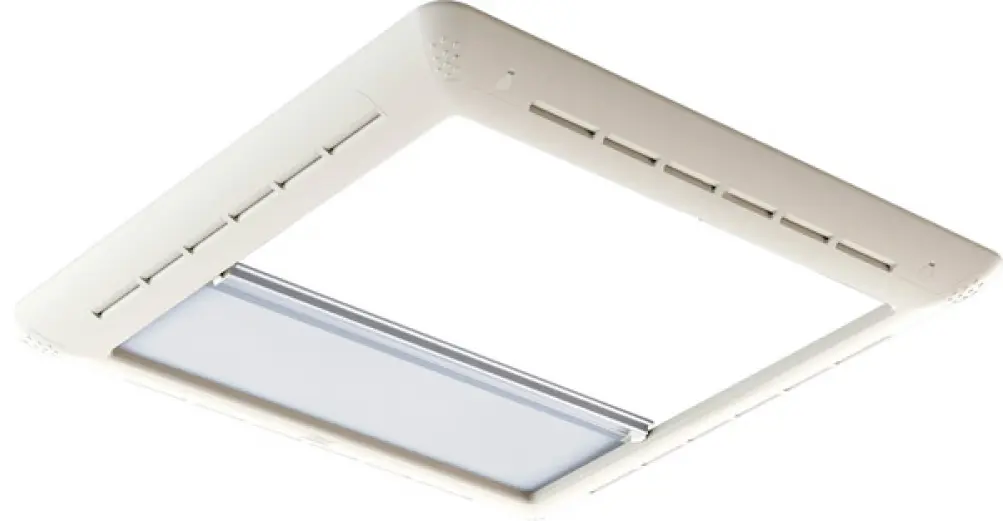

The Fiamma Rollo Vent 40 is a retrofit roller blind system designed specifically for 40 x 40 cm Fiamma rooflights in motorhomes, caravans and campervans. This white internal blind frame attaches directly to existing Fiamma Vent 40 and Turbo Vent rooflight frames using the supplied screws, which means there's no need to drill holes in your vehicle's roof. The frame measures 44.5 x 44.5 cm externally and features a low-profile design at just 3 cm thick, preserving valuable headroom inside your vehicle whilst providing blackout privacy when needed.

How does the Fiamma Rollo Vent 40 maintain ventilation when the blind is closed?

The Rollo Vent 40 incorporates side ventilation grills built into the blind's frame profile. These lateral air inlets allow continuous airflow through the rooflight even when the roller blind is fully extended, preventing condensation build-up whilst maintaining privacy. This permanent ventilation system works independently of the blind position.

Installation follows a straightforward process where the blind frame fixes to the existing rooflight's internal mounting points using the provided screws. The system works with standard Fiamma Vent 40 rooflights and is also compatible with Fiamma Turbo Vent and Turbo Vent Premium models. The roller blind mechanism operates manually and retracts fully when not in use. This accessory transforms a basic rooflight into a functional window covering without compromising the ventilation your vehicle needs for comfortable living.

Specifications

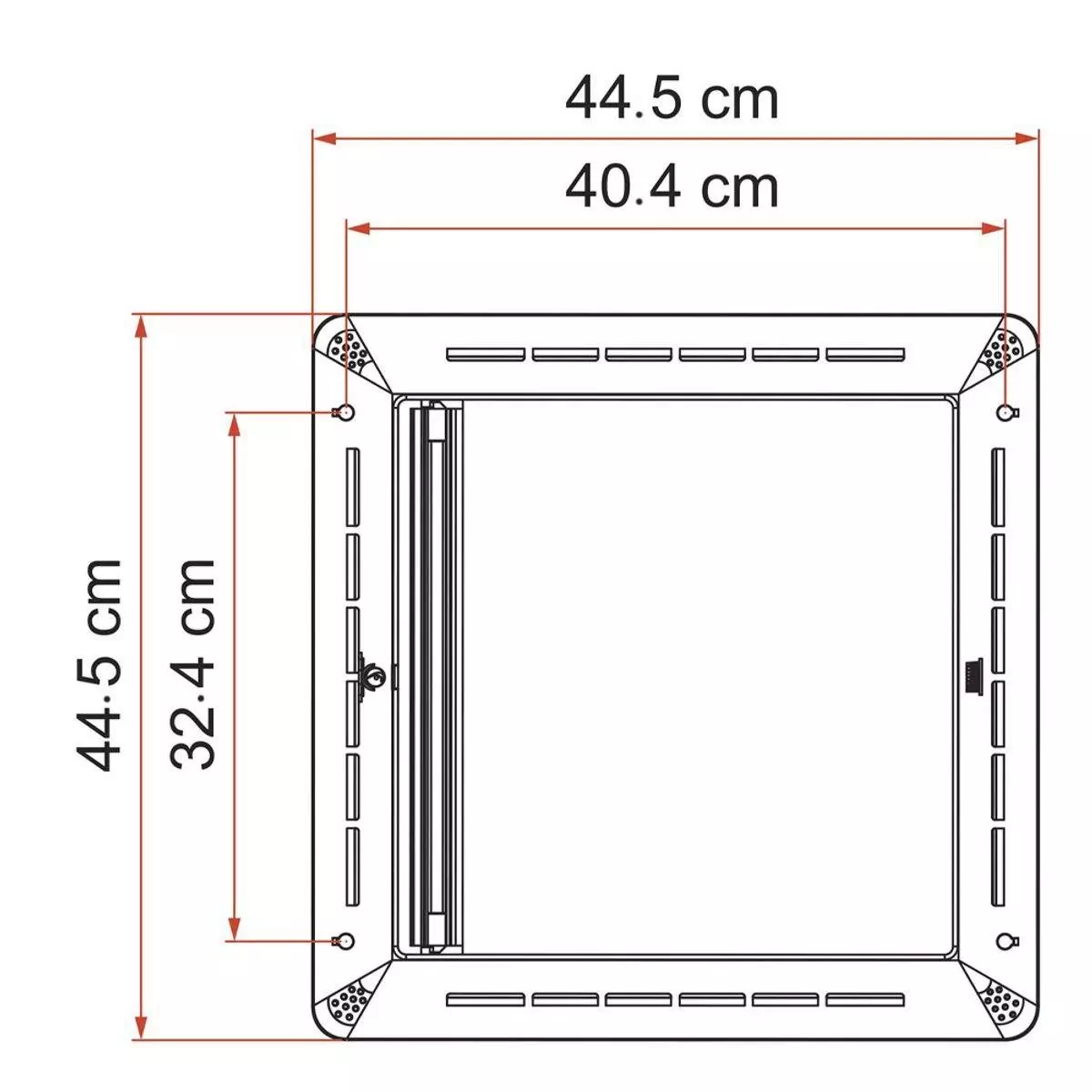

Overall Dimensions: 44.5cm x 44.5cm (See image)
Installation: Screws supplied.
Colour: White

Associated Products

Quick View

Fiamma Rooflight Vent 40 | Crystal | 400x400mm

Frequently Asked Questions

Which Fiamma rooflights is the Rollo Vent 40 compatible with?

The Rollo Vent 40 fits all Fiamma Vent 40 (40x40cm) rooflights, including standard Fiamma Vent 40, Fiamma Turbo Vent, and Fiamma Turbo Vent Premium models. The blind frame uses the existing fixing points on these rooflights, so it attaches using the same screw positions already built into your rooflight's internal frame. It does not fit other brands of 40x40cm rooflights or different sized Fiamma models.

Does fitting the Rollo Vent 40 require drilling holes in the vehicle roof?

No drilling is required. The Rollo Vent 40 screws directly into the existing mounting points on your Fiamma rooflight's internal frame using the supplied screws. This means the blind attaches to the rooflight itself rather than the vehicle roof, making it a straightforward retrofit installation that doesn't compromise your vehicle's structure or waterproofing.

How does the ventilation work when the blind is closed?

The Rollo Vent 40 features built-in side ventilation grills along the frame profile. These lateral air inlets maintain continuous airflow through the rooflight even when the roller blind is fully extended, allowing fresh air circulation whilst providing privacy and shade. This permanent ventilation system helps prevent condensation and maintains air quality inside your vehicle.

What are the dimensions of the Fiamma Rollo Vent 40?

The blind frame measures 44.5 x 44.5 cm externally. The frame profile is just 3 cm thick, which is considered low-profile and preserves headroom inside your motorhome or caravan. This compact design ensures the blind doesn't protrude significantly below the rooflight, maintaining a neat internal appearance.

Can I retrofit the Rollo Vent 40 to an existing rooflight?

Yes, the Rollo Vent 40 is specifically designed as a retrofit blind system for existing Fiamma Vent 40 rooflights. You don't need to remove or replace your rooflight. The blind frame simply screws into the existing rooflight frame from inside the vehicle. This makes it an ideal upgrade for motorhomes, caravans and campervans that already have Fiamma 40x40cm rooflights installed.

What is the difference between part numbers 06310-01 and 06310-02?

The difference is the colour. Part number 06310-02 is the white version of the Rollo Vent 40, whilst 06310-01 is the ivory version. Both function identically and fit the same Fiamma 40x40cm rooflights. The choice between white and ivory typically depends on matching your vehicle's existing interior trim colour.

Does the Rollo Vent 40 include a mosquito screen?

No, the Rollo Vent 40 is a blackout roller blind only and does not include a mosquito screen. Most Fiamma Vent 40 and Turbo Vent rooflights come with an integrated mosquito screen as standard in the rooflight itself, which operates independently of the Rollo Vent blind. The Rollo Vent 40 complements rather than replaces the rooflight's mosquito screen function.

Will the low-profile frame reduce headroom in my vehicle?

The Rollo Vent 40 has a 3 cm frame thickness, which is designed to be low-profile and minimise headroom loss. When installed on a Fiamma Vent 40 rooflight, it adds approximately 3 cm below the existing rooflight frame. This is typically less intrusive than many rooflight blind systems, making it suitable for vehicles where preserving interior height is important.

EAN-13 : 8004815066512
