Water Inlet with Flap

£32.61(inc VAT) £43.99
View delivery optionsView product description
  Product Description

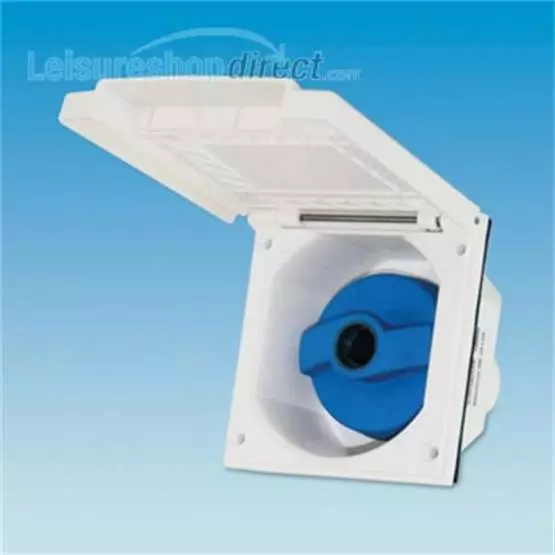

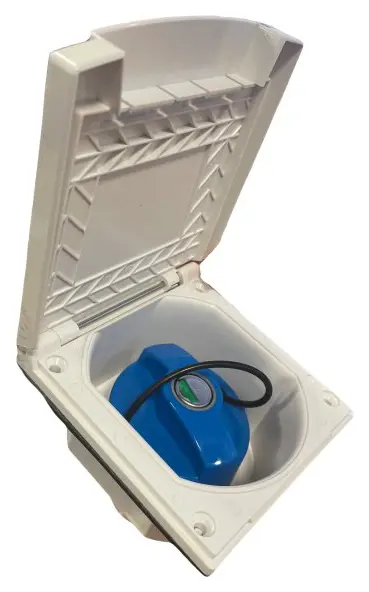

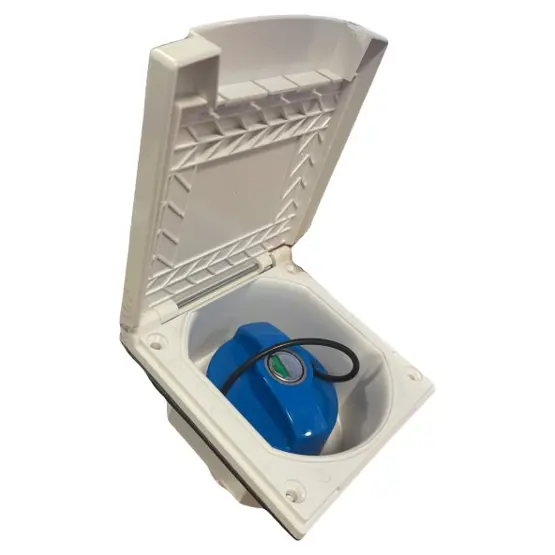

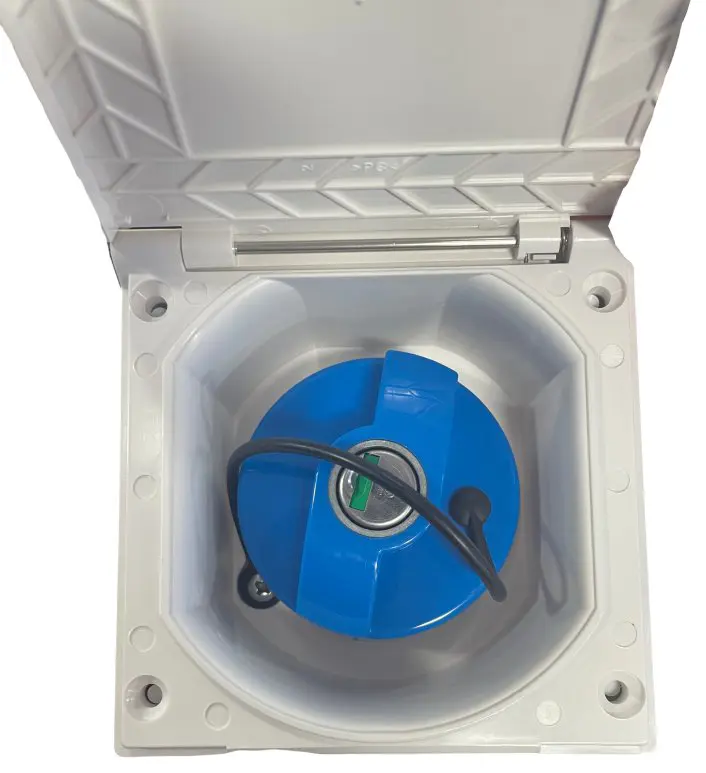

The ES2095 White Water Inlet is a lockable external filling point for motorhome and campervan onboard fresh-water tanks. Its TND design includes the inlet housing, cap, barrel and matching keys, providing a tidy way to connect a filling hose outside the vehicle. The rear connector suits 40mm water filler hose.

What size hose and cut-out does the TND ES2095 water inlet need?


The ES2095 uses a 40mm rear hose connection for a compatible fresh-water filler hose. It requires an 80mm x 90mm cut-out in the vehicle body and measures approximately 130mm high, 120mm wide and 100mm deep, so check clearance behind the mounting position before fitting.

Designed for vehicles with onboard water tanks, this white inlet provides a dedicated external point for filling the fresh-water system. The locking cap is supplied complete with a barrel and keys, while the housing helps keep the connection protected when the vehicle is not being filled.

This TND water inlet is suitable for many motorhome, campervan and caravan water installations using a 40mm filler pipe. It is a practical replacement for a matching damaged or aged inlet, or for a new onboard tank installation where the specified cut-out, hose size and mounting depth suit the vehicle.

Water Inlet with Flap Features


  • Lockable external fresh-water inlet for onboard tank installations
  • Supplied complete with lock barrel and matching keys
  • TND housing design for motorhomes and campervans
  • Built-in breather supports smooth tank filling
  • White external flap gives a neat finished installation

Specifications
Product reference : ES2095 TND Design Water Inlet
Application : Motorhome and campervan onboard fresh-water tanks
Hose connection : 40mm rear connection for water filler hose
Cut-out size : 80mm x 90mm vehicle body aperture
Overall size : Approx. 130mm H x 120mm W x 100mm D

Frequently Asked Questions

What is the ES2095 TND water inlet used for?
The ES2095 TND water inlet provides an external filling point for an onboard fresh-water tank in a motorhome, campervan or suitable caravan installation. A compatible 40mm filler hose connects to the rear of the inlet and runs to the vehicle water tank.
What hose size fits the ES2095 TND water inlet?
The rear inlet connector is designed for a 40mm water filler hose. Check the internal diameter of the existing hose and the tank connection before ordering, especially when replacing an older water inlet from another design.
What body cut-out is required for the ES2095 water inlet?
The ES2095 TND water inlet requires an 80mm x 90mm cut-out in the vehicle body. Measure the existing aperture and check the available space behind the panel before fitting the inlet housing.
Are keys supplied with this TND water inlet?
Yes. The ES2095 is supplied complete with a lock barrel and matching keys. The locking cap covers the external filler opening when the fresh-water tank is not being filled.
What are the dimensions of the ES2095 TND water inlet?
The inlet measures approximately 130mm high, 120mm wide and 100mm deep. The rear hose connection is 40mm. Allow space for the filler hose to route from the rear of the housing to the onboard water tank.
EAN-13 : 5060070229591
