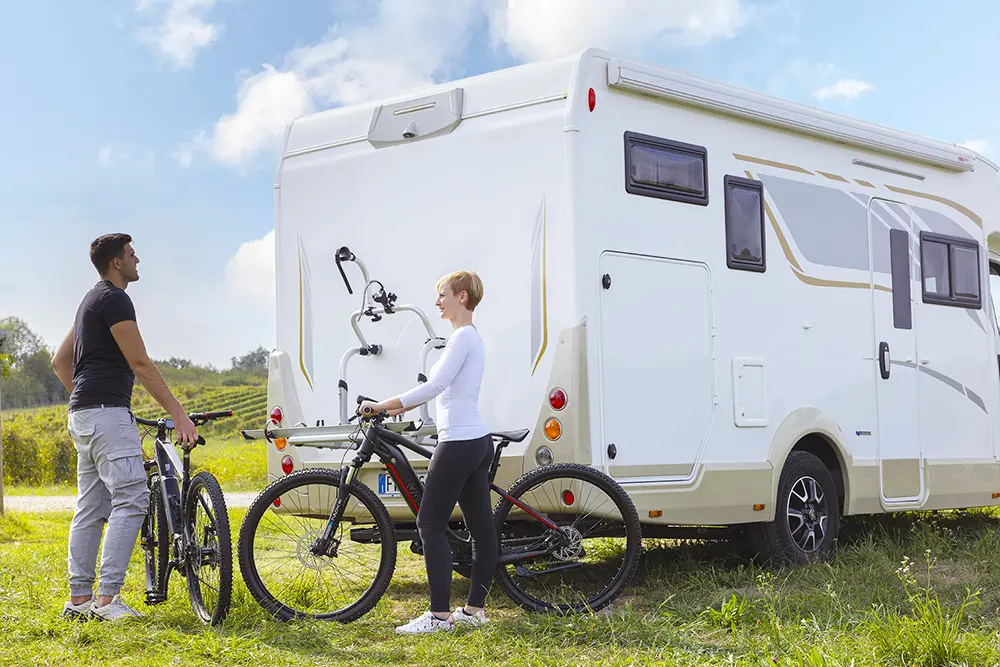

The Fiamma Carry-Bike Pro C is a rear wall-mounted bike carrier designed specifically for coach-built motorhomes where space is limited. It mounts beneath the rear window, allowing the window to remain fully operational while securely transporting your bikes. With 6060 aluminium tubes featuring an oval section for added strength, this carrier delivers the stability and durability motorhomers need for long-distance touring. The Pro C comes complete with all mounting brackets, Bike-Block Pro S 1 and Pro S 3 locking systems, security strip, and two Rail Plus rails, making it a ready-to-install solution.
The Fiamma Carry-Bike Pro C is a rear-mounted bicycle carrier built for coach-built motorhomes. It's the compact version of the Fiamma Carry-Bike Pro range, designed specifically for installation beneath the rear window of your motorhome without blocking the window from opening. Constructed from 6060 aluminium with oval-section tubing, the Pro C weighs 10.2kg and supports a maximum load of 60kg. It carries two bikes as standard and is e-bike compatible, supporting electric bikes up to 25kg each. The height-adjustable frame spans 40cm to 80cm vertically, with a fixed 60cm horizontal bracket spacing, and the bolt-through-wall installation comes with all required fixings, counter plates, and a lower support bar kit.
How does the Fiamma Carry-Bike Pro C fit motorhomes with a rear window?
The Carry-Bike Pro C mounts below the rear window using bolt-through-wall fixings at 60cm horizontal and 40-80cm vertical spacing. Its compact 128 x 63 x 40cm frame sits low enough to leave the window fully operable, and the adjustable brackets work around obstructions in the motorhome wall. For vertical spacing above 80cm, the larger Carry-Bike Pro is the correct choice.

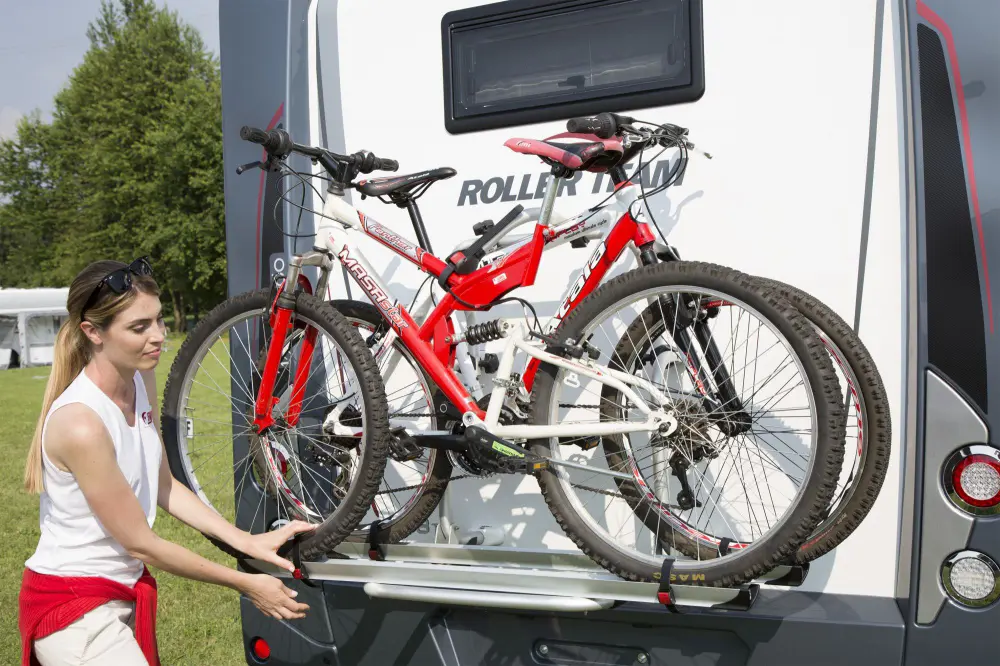

As standard, the Pro C carries two bikes up to a maximum load of 60kg. It's also compatible with two e-bikes thanks to the upgraded Rail Plus system, which offers improved resistance to torsion and bending through better material distribution and geometry. When you need to carry more bikes, the system expands to accommodate up to four standard bikes by adding Bike-Block Pro 2 and Pro 4 units along with two additional Rail Plus rails. The 15cm distance between rails provides sufficient clearance for most bike frame styles, while the bottom support bar included in the kit adds extra security during travel.
The 2023-onwards model introduced Fiamma's Rail Plus system with round tubing, which brought full e-bike compatibility to the standard Pro C without needing an upgrade kit. Two Rail Plus rails slide horizontally on the rack using the Easy Position system, so you can offset your bikes to prevent handlebars and pedals from clashing. Fiamma's Bike-Block Pro S1 and S3 frame holders grip each bike securely with anti-scratch arms, and the Quick Lock system uses Quick Safe straps to fasten wheels to the rails without fiddly buckles. A Bull Shock Absorber is fitted as standard between the rack and the mounting frame, dampening road vibrations and reducing stress on the motorhome's rear wall. When you're not carrying bikes, the integrated Rack Holder keeps the tray folded upright against the vehicle. The Pro C also uses Fiamma's Zoom 4 Bikes system, so you can expand capacity to three or four standard bikes by adding extra Rail Plus rails and Bike-Block Pro S2 and S4 arms. A Security Strip is included in the box for added theft protection.
Fiamma Carry-Bike Pro C Features
- For installation on a motorhome's rear wall
- Supports a maximum load of 60kg
- Supplied as standard for two bikes, expandable to four with additional parts
- 6060 aluminium tubes with oval section
- Height-adjustable frame
- Telescopic rail support base
- Rail support base block
- For transporting up to 4 standard bikes or 2 E-Bikes
- Rail Plus
Specifications
- Vehicle Type : Motorhome
- Vehicle Rear Window : Yes
- Bikes Carried Standard : 2
- Bikes Carried Max : 4
- Weight : 7.9kg
- Max Load : 60kg
- Bike Block Pro 1 : 1
- Bike Block Pro 2 : With 3 & 4 Bike Option
- Bike Block Pro 3 : 1
- Bike Block Pro 4 : With 4 Bike Option
- Security Strip : 1
- Rail Plus : 2 as standard or (3 with 3 Bike Option & 4 with 4 Bike Option)
- Rack Holder : 2
- Brackets : Yes
Associated ProductsQuick View -57603_thumb.jpg)
Fiamma Bike-Block Pro S 4 Aluminium (08831C01-)
Quick View -79751_thumb.jpg)
Fiamma Bike-Block Pro S 4 Deep Black (08831C01A)
Quick View -86275_thumb.jpg)
Fiamma Bike-Block Pro S 2 Deep Black (08831A01A)
Frequently Asked Questions
The Pro C is designed for coach-built motorhomes with vertical mounting space between 40cm and 80cm, and a horizontal distance of 60cm between bracket positions. Measure your rear wall from the bottom edge to below your rear window to confirm vertical clearance. The adjustable frame allows the carrier to fit around vents, access panels, or other obstacles. If your motorhome already has pre-installed mounting points, measure the centre-to-centre distance vertically and horizontally to verify compatibility.
Yes, the Carry-Bike Pro C is rated to carry two e-bikes as standard. The upgraded Rail Plus system provides enhanced resistance to torsion and bending, which is essential for the additional weight of electric bikes. The total maximum load capacity is 60kg, so you need to ensure the combined weight of your two e-bikes stays within this limit. Most e-bikes weigh between 20-30kg each, so check your specific model's weight before loading.
The Pro C comes as a complete kit with everything needed to carry two bikes. You receive one Bike-Block Pro S 1 locking system, one Bike-Block Pro S 3 locking system, a security strip, two Rail Plus rails, mounting brackets, and a bottom support bar for secure fixing. The carrier weighs 9kg and measures 128x63x40cm when installed at minimum vertical wheelbase. All fixings and mounting hardware are included, so no additional parts are needed for a two-bike setup.
To expand from two bikes to four bikes, you need to purchase additional components separately. You'll require a Bike-Block Pro 2, a Bike-Block Pro 4, and two extra Rail Plus rails. These additional parts integrate with your existing Pro C setup to create a four-bike system. The 15cm spacing between rails provides adequate clearance for most standard bike frames. Remember that the total maximum load remains 60kg regardless of how many bikes you carry.
No, the Pro C is specifically designed as the most compact bike carrier on the market to install beneath motorhome rear windows. It mounts low enough on the rear wall that your window remains fully operational and able to open and close normally. This makes it ideal for motorhomes where rear window access is important for ventilation or emergency egress. The compact 128cm width and adjustable height from 40-80cm ensures it fits into the space available below most motorhome rear windows.
Rail Plus is Fiamma's latest bike rail design featuring improved geometry and material distribution compared to older rail systems. The enhanced construction provides higher resistance against torsion and bending forces during travel, which is particularly important when carrying heavier bikes or e-bikes. The round tubing design of Rail Plus rails also makes it easier to load and secure bikes. These rails work with Fiamma's Bike-Block Pro locking systems to hold your bikes securely on motorhome journeys.
The Rail Plus is Fiamma's current-generation bike rail, fitted as standard to the Carry-Bike Pro C from 2023 onwards. It's a 128cm aluminium channel with round tubing and an enlarged cross-section that provides greater resistance to torsion and bending compared to older Fiamma rail designs. This improved geometry and material distribution is what gives the Pro C its standard e-bike compatibility without needing a separate upgrade kit. Each Rail Plus rail sits on the rack's support base and slides horizontally using the Easy Position system, allowing you to offset bikes and avoid handlebar or pedal clashes. The Pro C comes with two Rail Plus rails as standard, and up to two additional Rail Plus rails can be purchased separately to expand the rack to three or four bike capacity.
