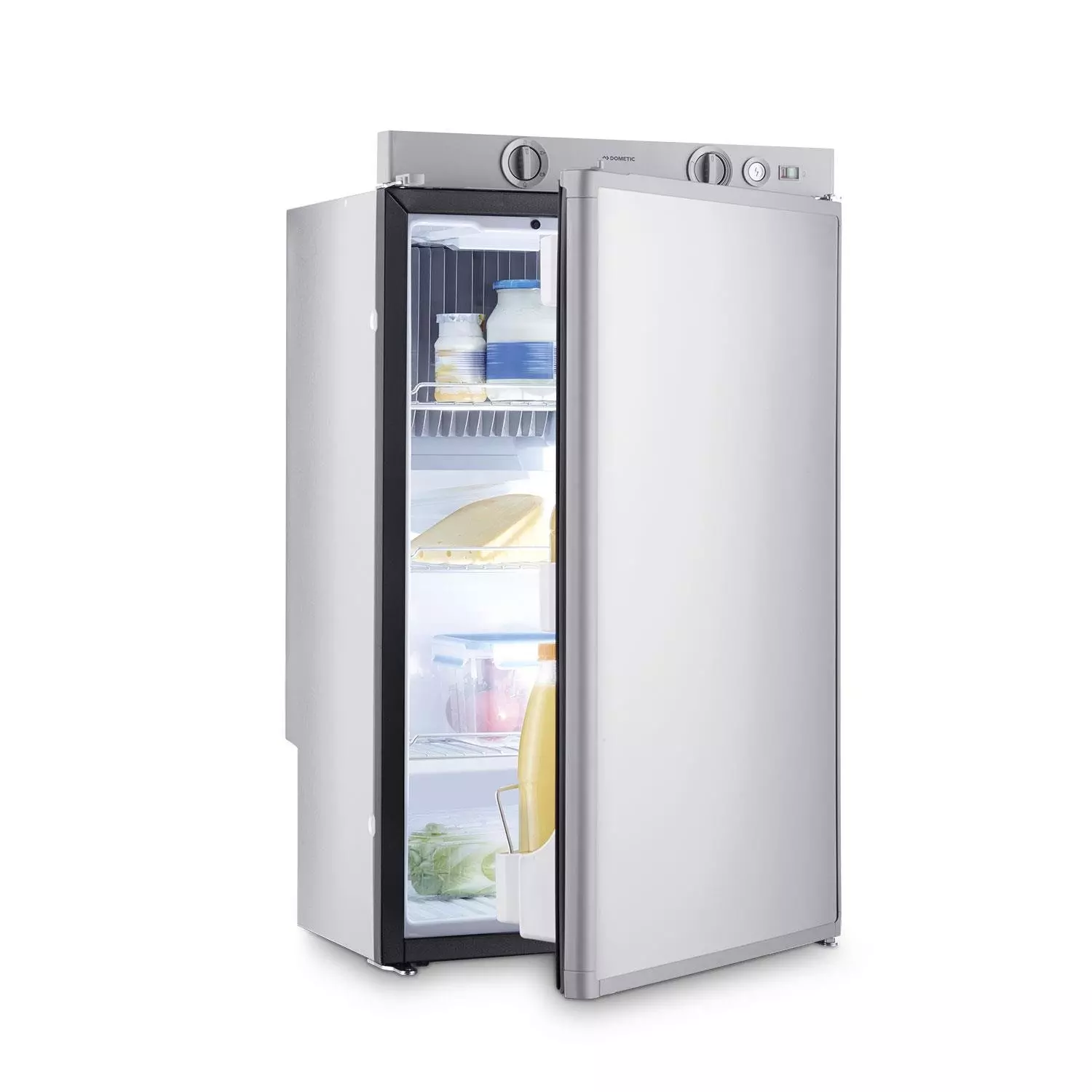

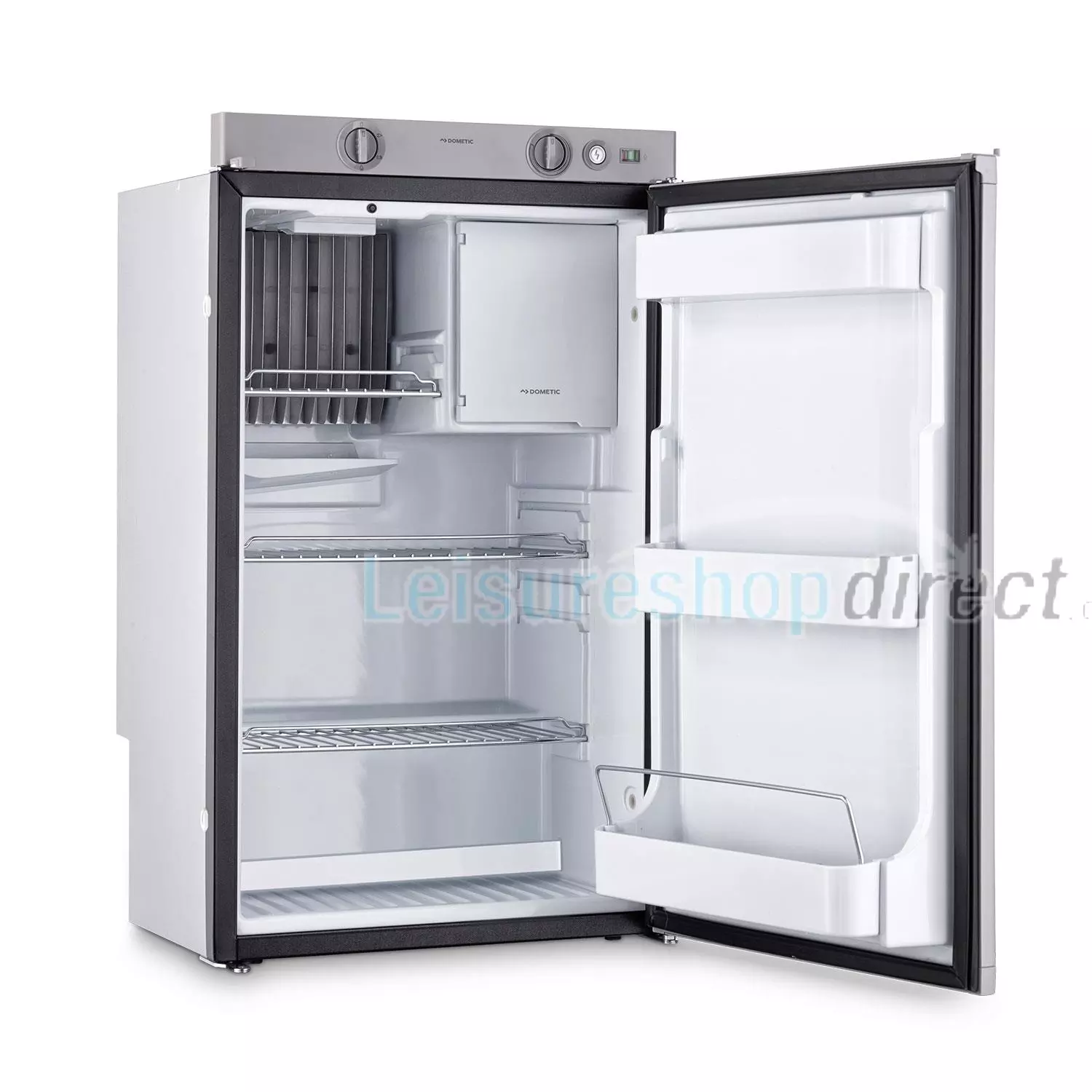

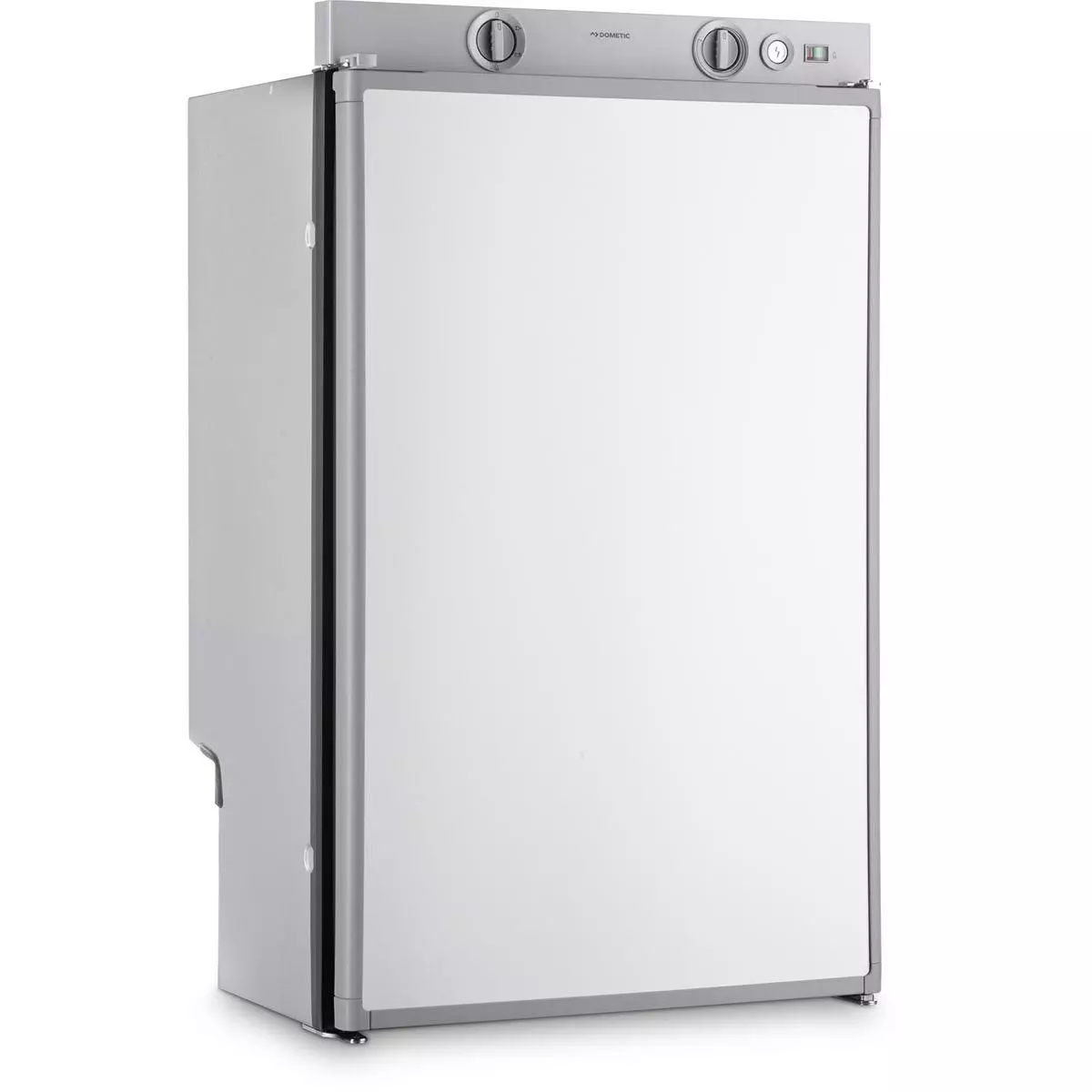

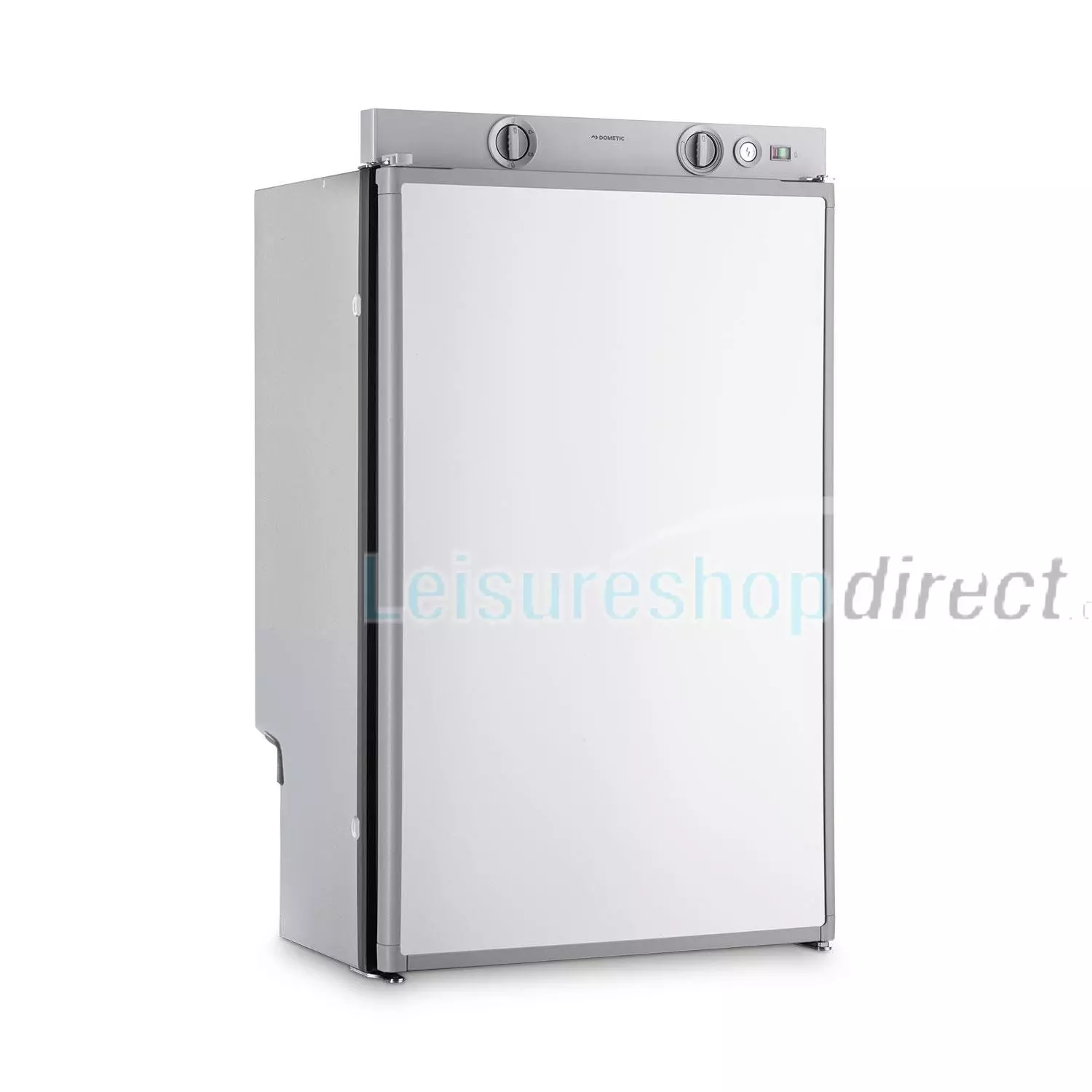

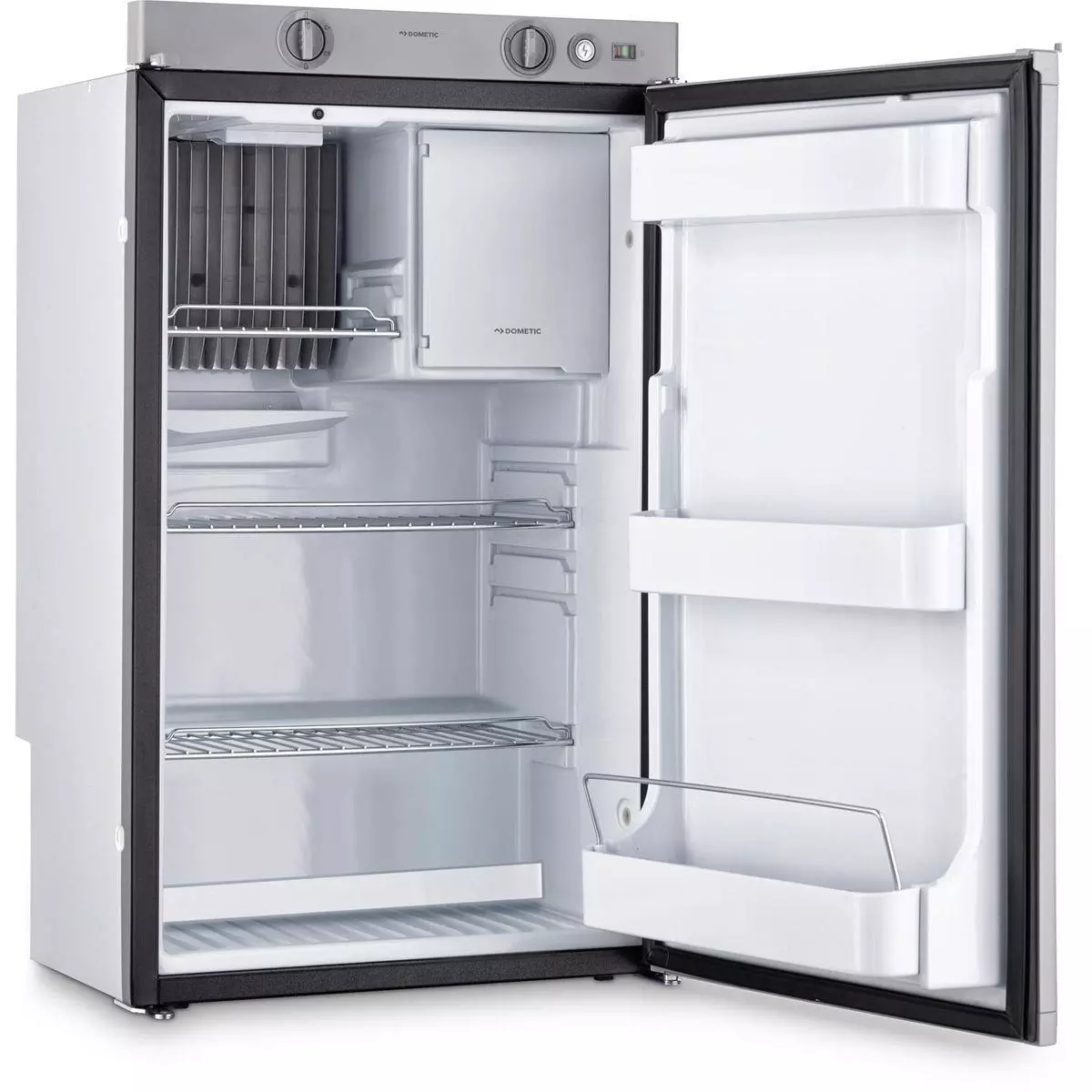

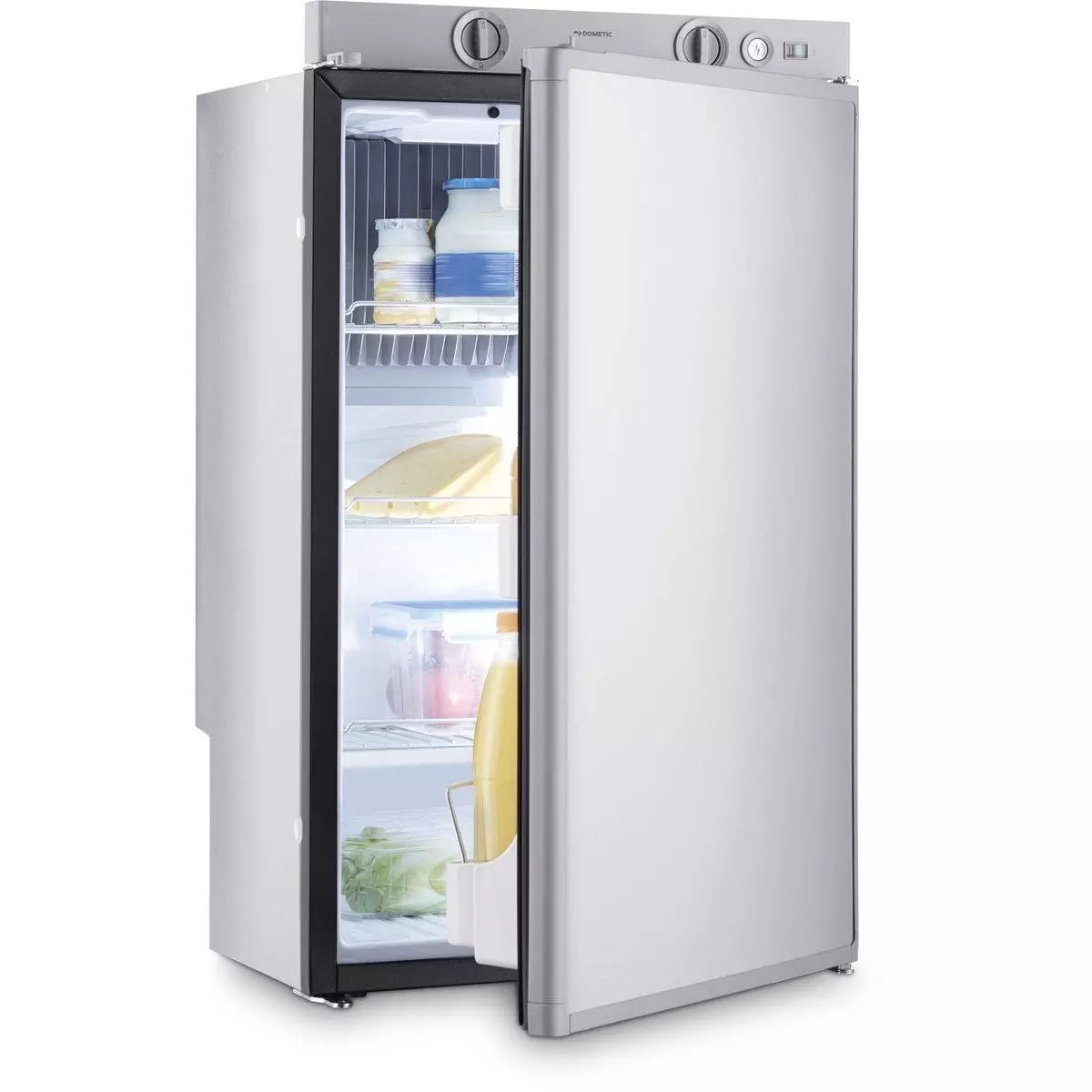

Dometic RM5330 Fridge

£839.00 (inc VAT) £1058.00NewCondition
The Dometic RM5330 is a 70 litre, 3 way (Gas/12v/230V) wheel-arch model absorption cabinet refrigerator. It is a single-door wheel-arch model with battery ignition. The RM...

...read more

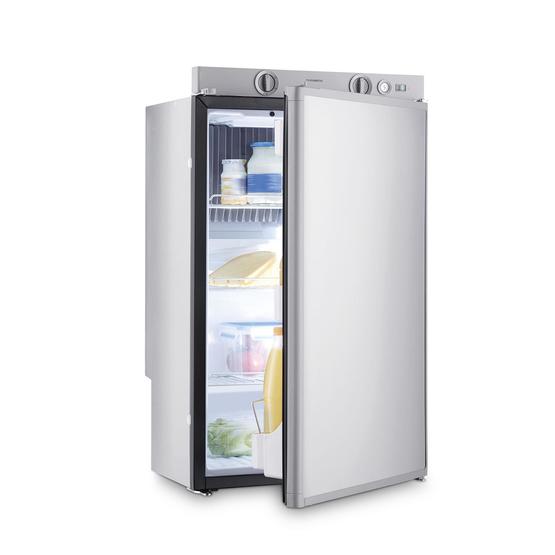

The Dometic RM5330 is a 70 litre, 3 way (Gas/12v/230V) wheel-arch model absorption cabinet refrigerator. It is a single-door wheel-arch model with battery ignition. The RM 5330 featuring contemporary looks and an illuminated interior in ice-blue. Cooling capacity: refrigerator +7°C, freezer compartment down to –12°C at ambient temperatures up to 32°C (corresponds to climate class SN).

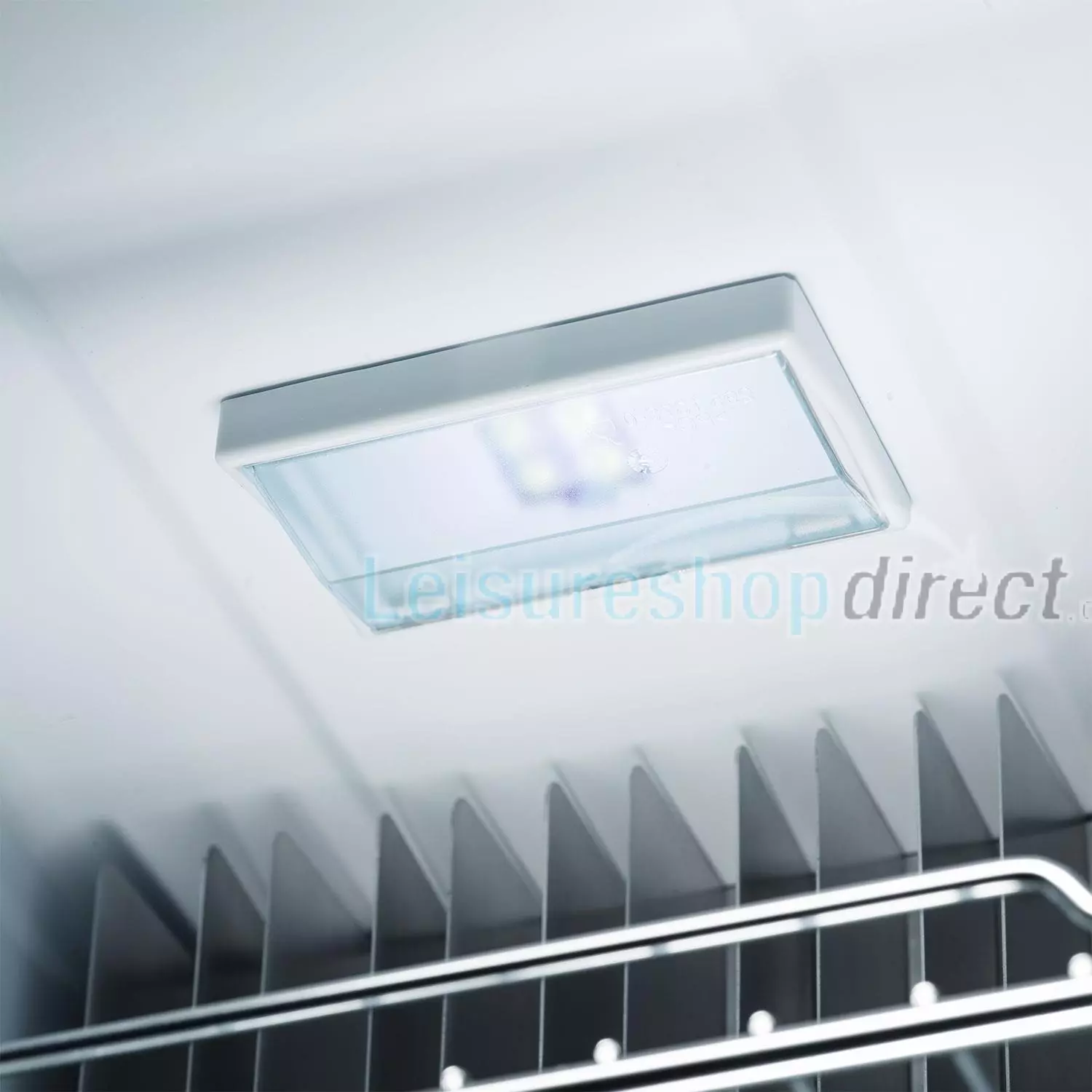

The 5th series of this much loved Dometic classic has an updated contemporary style and technical upgrades. This 70 l refrigerator with 5 l freezer is perfectly tailored for life on the road. The three-way AC, DC and gas power gives you freedom to travel. Now in its 5th series, the Dometic RM 5330 offers more than ever. Its temperature control saves energy, while the interior LED light and door storage for large bottles give added convenience. The remarkably spacious interior of this 70 l fridge, its flexible shelf system and silent operation make it the perfect compact fridge when you’re living mobile.

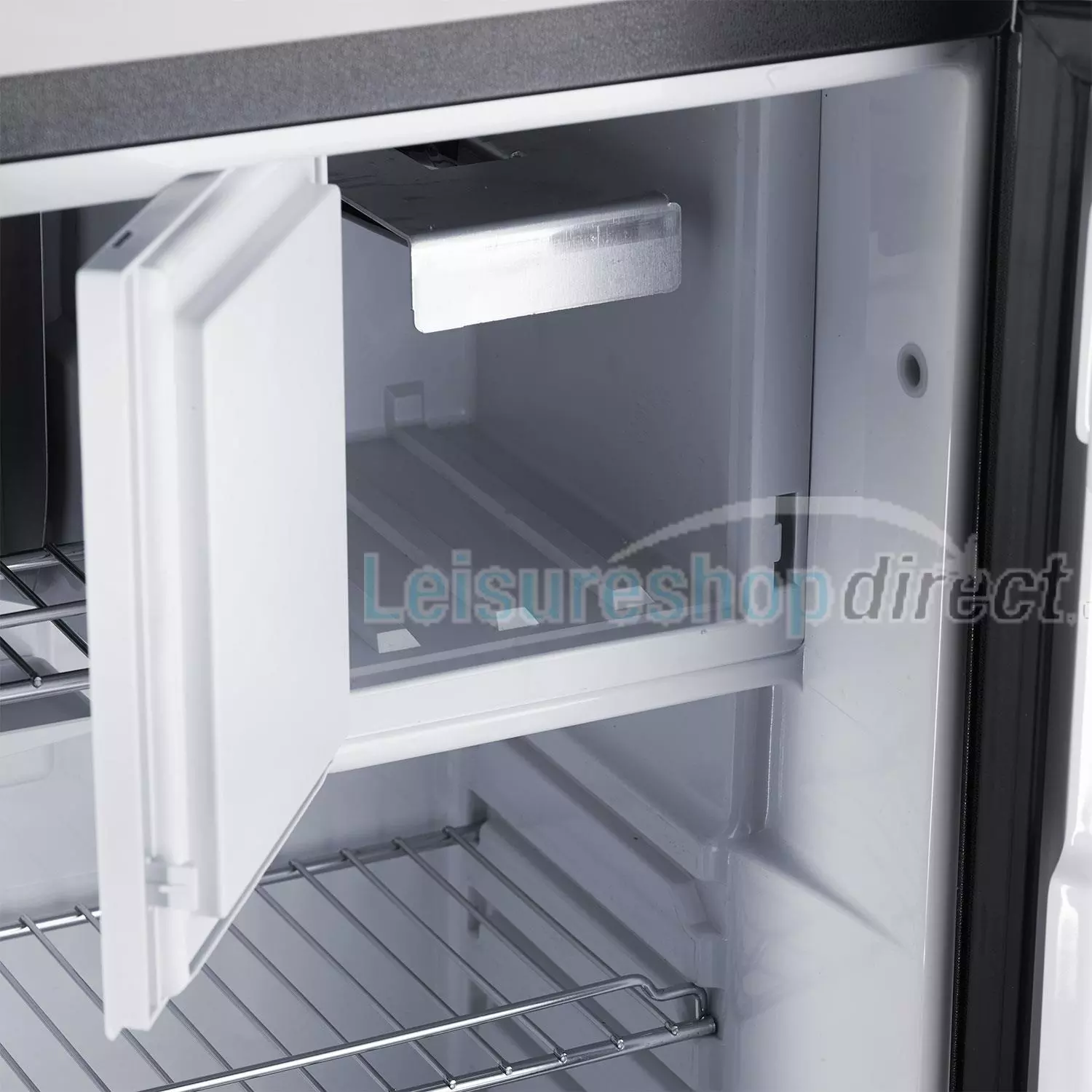

The RM5330 features a flexible shelf system, magnetic and manual mechanical door safety lock & vent. This caravan fridge also has a separate 5 litre freezer compartment capable of chilling down to -12° C. It has a battery-powered ignition system and thermostat regulation in 230-volt and gas mode.

This is exactly the same size as the models it has replaced: RM4230 and RM4233.

Dometic RM5330 - Wheel Arch Model
The wheel-arch models have a section cut out at the bottom-rear of the fridge to allow it to fit over the caravan/motorhome wheel. It could also be used if required to allow cabling or heating ducting pipe.

Optional Accessories
Please note that Dometic Fridges do not comes with Fridge Vents. Here are some options that fit this fridge.
Quick View     Dometic LS100 top fridge vent - white
Quick View     Dometic LS100 Fridge Vent - Dark Grey
Quick View     Dometic bottom vent - white LS200


What does Battery Ignition System Mean?
These types of fridge have a small lithium battery. The fridge does not automatically ignite but will require you to push the ignition button. You must select the power source (12v, Gas, 230V Mains) manually on the control panel.

Specifications


  • Capacity (l) : 70
  • Freezer volume (l) : 5
  • Colour: grey
  • LED interior light
  • User-friendly control panel

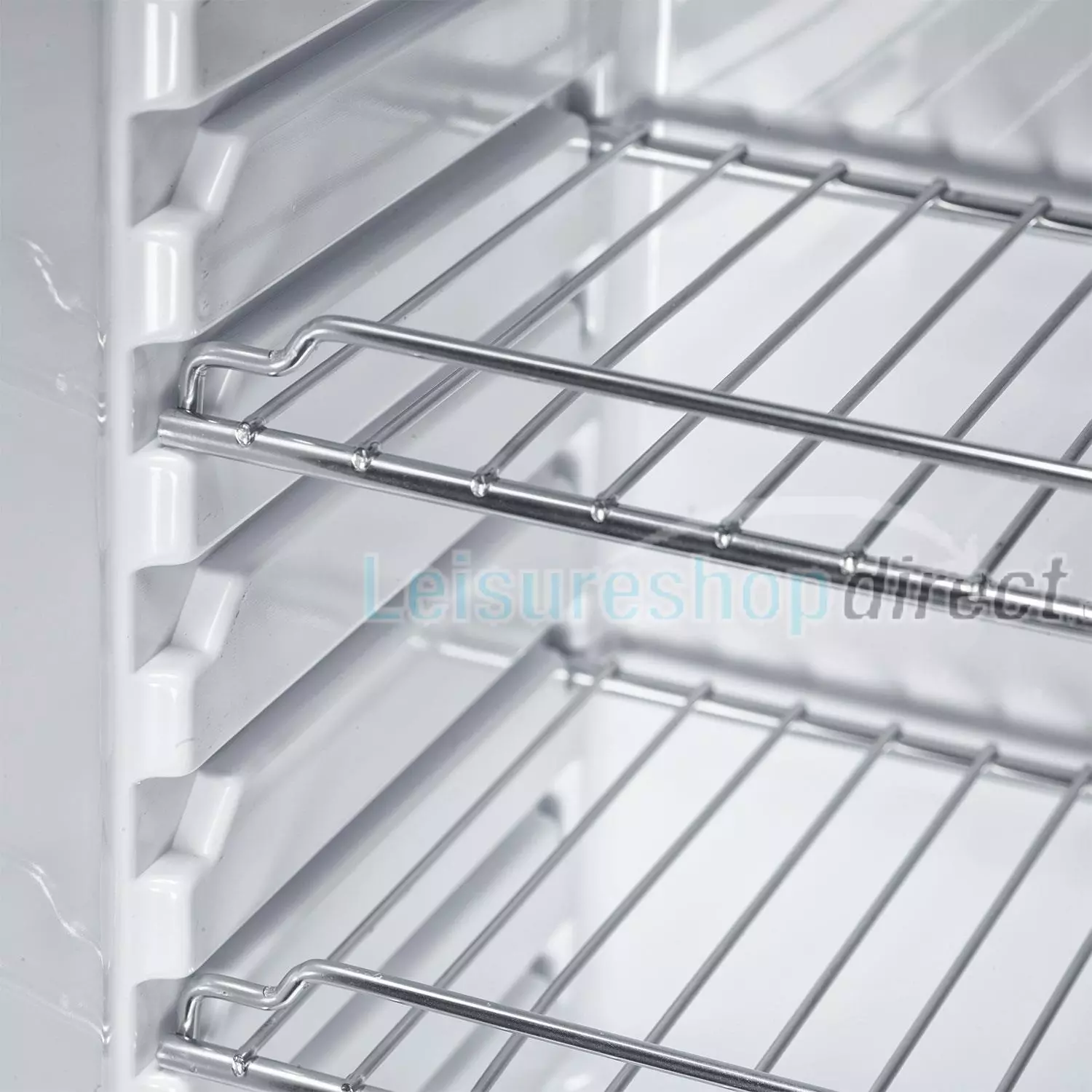

  • Flexible shelf system with practical door trays
  • Door with magnetic seal
  • Reversible door hinges
  • Battery-powered ignition unit
  • Thermostat regulation in 230-volt and gas mode
  • Door lock with vent option
  • Integrated gas galvanometer
  • 220 : Single Door
  • Height (mm) : 821
  • Depth (mm) : 474
  • Weight (kg) : 22
  • Energy consumption 230V @amb temp 25°C (kWh/24h) : 2.5
  • Energy consumption gas (g/24h) : 270
  • Max input 12V (W) : 120
  • Max input 230V (W) : 125
  • Max input Gas (g/h) : 18.3
  • Energy supply : 12volts DC, 230 volts AC, LPG
  • Cooling capacity : Refrigerator +7°C, freezer compartment up to -12°C at ambient temperatures up to +32°C (equivalent to climate class SN)
  • Ignition system : Battery ignition
  • Insulation : PU foam all around
  • Material : Cabinet: coated sheet steel, Door: plastic, Panel: coated aluminium

1 Technical Question on the Dometic RM5330 Fridge

Question

There is a lot of ice formation in the refrigerator. How can this be fixed?
on

Answer

Check that the door closes properly. You can easily test this yourself by placing a torch in the refrigerator. If you see a light slit along the edge of the door opening, then the door must be closed properly or newly hung.

Perhaps the thermostat is set higher than necessary. Or food with a high degree of saturation has been placed in the refrigerator, forming condensation on the evaporator. We recommend thawing the refrigerator and drying it properly. Afterwards, bear in mind these possible causes.
