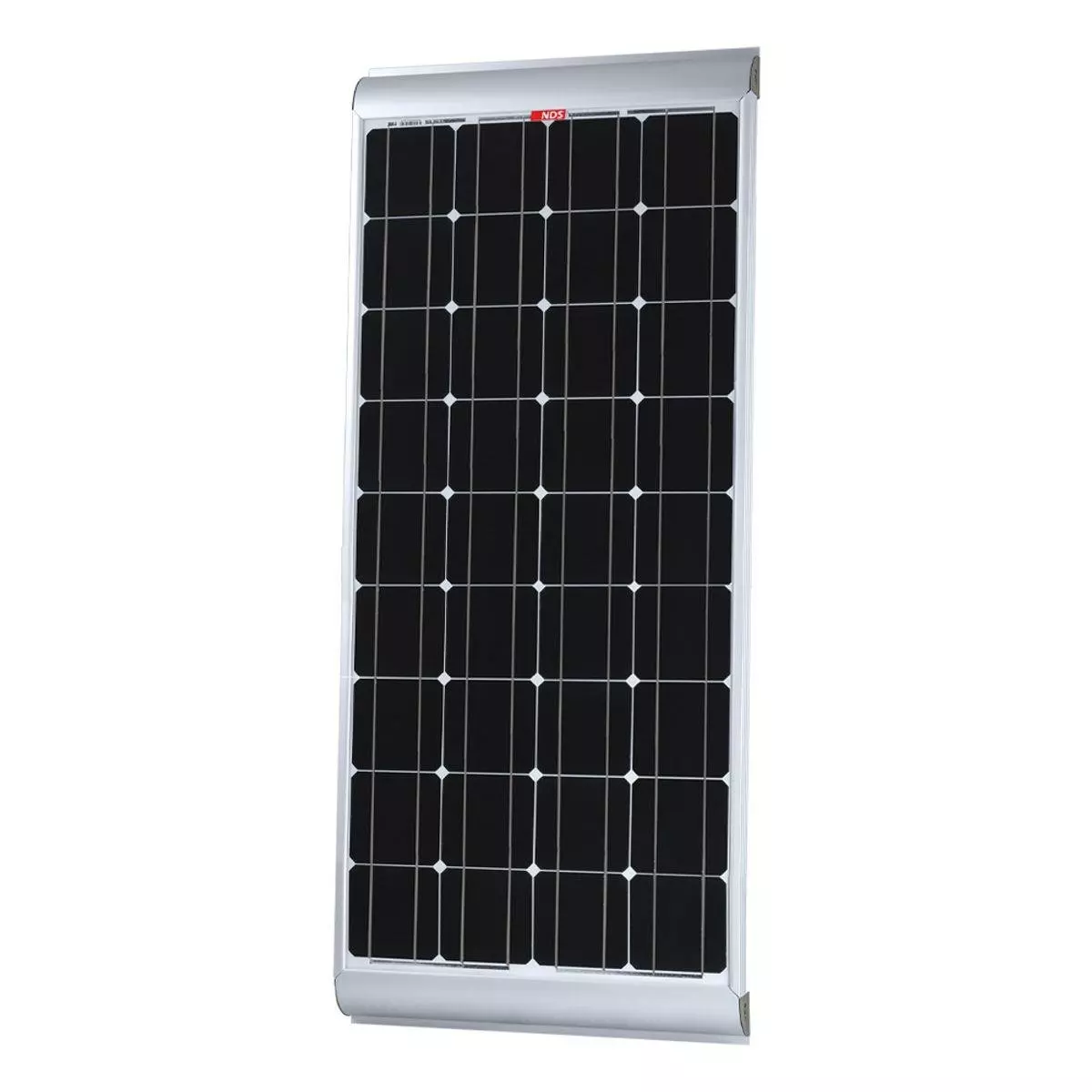

NDS Solenergy Solar Panel 100W (1320mm x 530mm)

£260.06(inc VAT) £311.99
View delivery optionsView product description
A 100W monocrystalline solar panel combining modern photovoltaic construction technology with a simple installation.

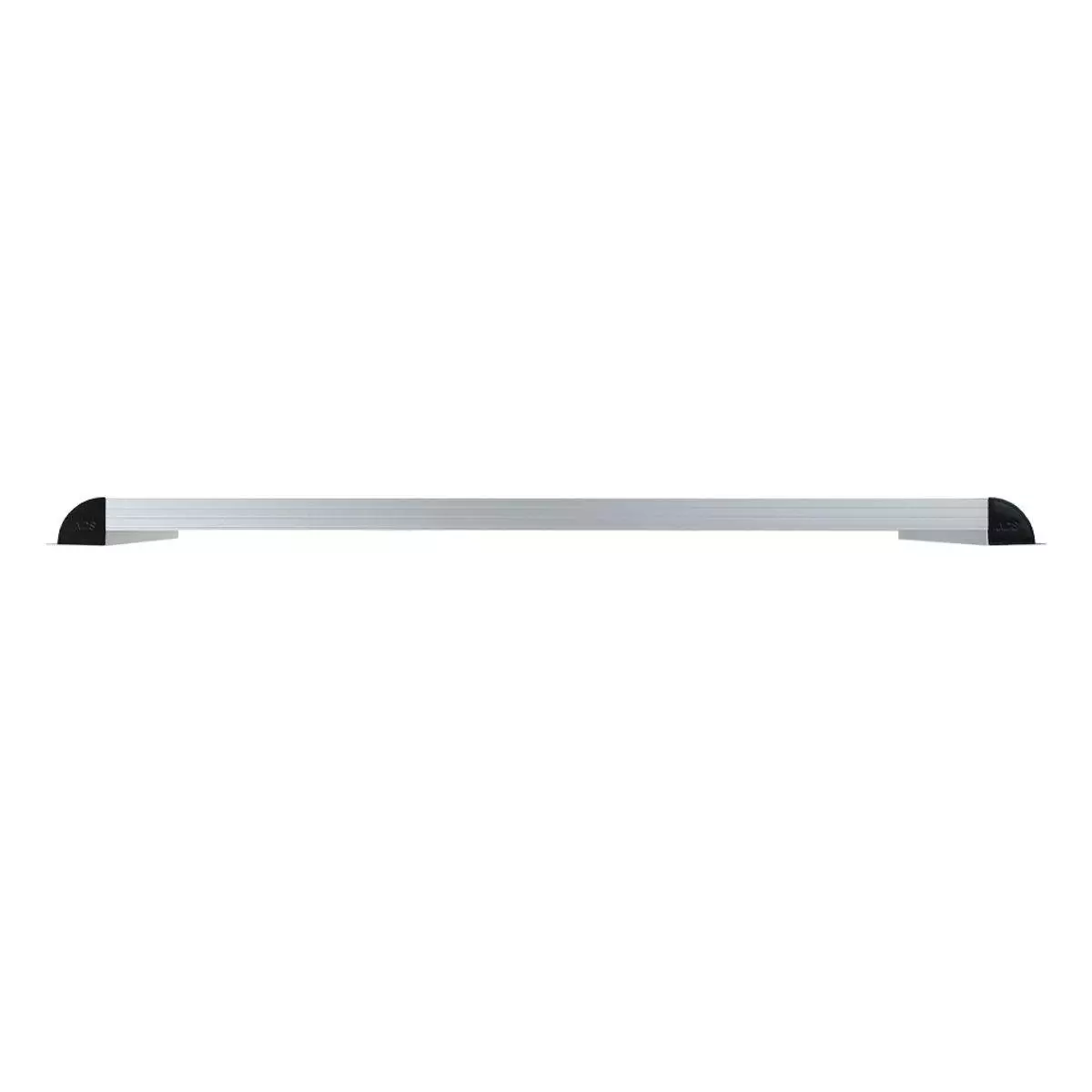

The 1320 x 530mm panel has integrated aluminium brackets with aerodynamic plastic side covers, ideal for safe and simple installation on a motorhome.

The integrated brackets ensure the panel is fixed at an adequate distance from the motorhome (or other mounted surface), which keeps the panel’s cells ventilated to help avoid any loss of performance, even at high operating temperatures.

This monocrystalline solar panel is made up of textured tempered glass and high purity silicon cells coated with a Tedlar foil, all enclosed in two sheets of EVA (Ethylene Vinyl Acetate).

The components used to coat the cells are designed to achieve maximum transmittance and transparency, plus the low iron content and anti-reflective coating increase efficiency to 18.05%.

Special by-pass diodes protect the cells from overvoltages and allow the solar panel to continue working even in the event of shading and accidental breakage of the photovoltaic cells.

From NDS’s SOLENERGY 12V range, this solar panel meets the most stringent quality and safety standards, IEC61215, IEC61730 and ISO9001/ISO14000 certification, and is built to withstand the harshest environmental and pollution conditions.

- Number of cells: 36
- Max power: 100WP±3%
- Open circuit voltage: 23.7V
- Short circuit current: 5.5A
- Max power voltage: 19.57V
- Max power current: 5.11A
- Length 6m cable: 2×2.5mm²

Please Note: NDS Solar Panels come with a 24 month warranty from the date of purchase. Proof of purchase will be required for all warranty claims.

NDS SOLENERGY Solar Panel 100W (1320mm x 530mm) Features

  • Monocrystalline cells
  • Easy installation

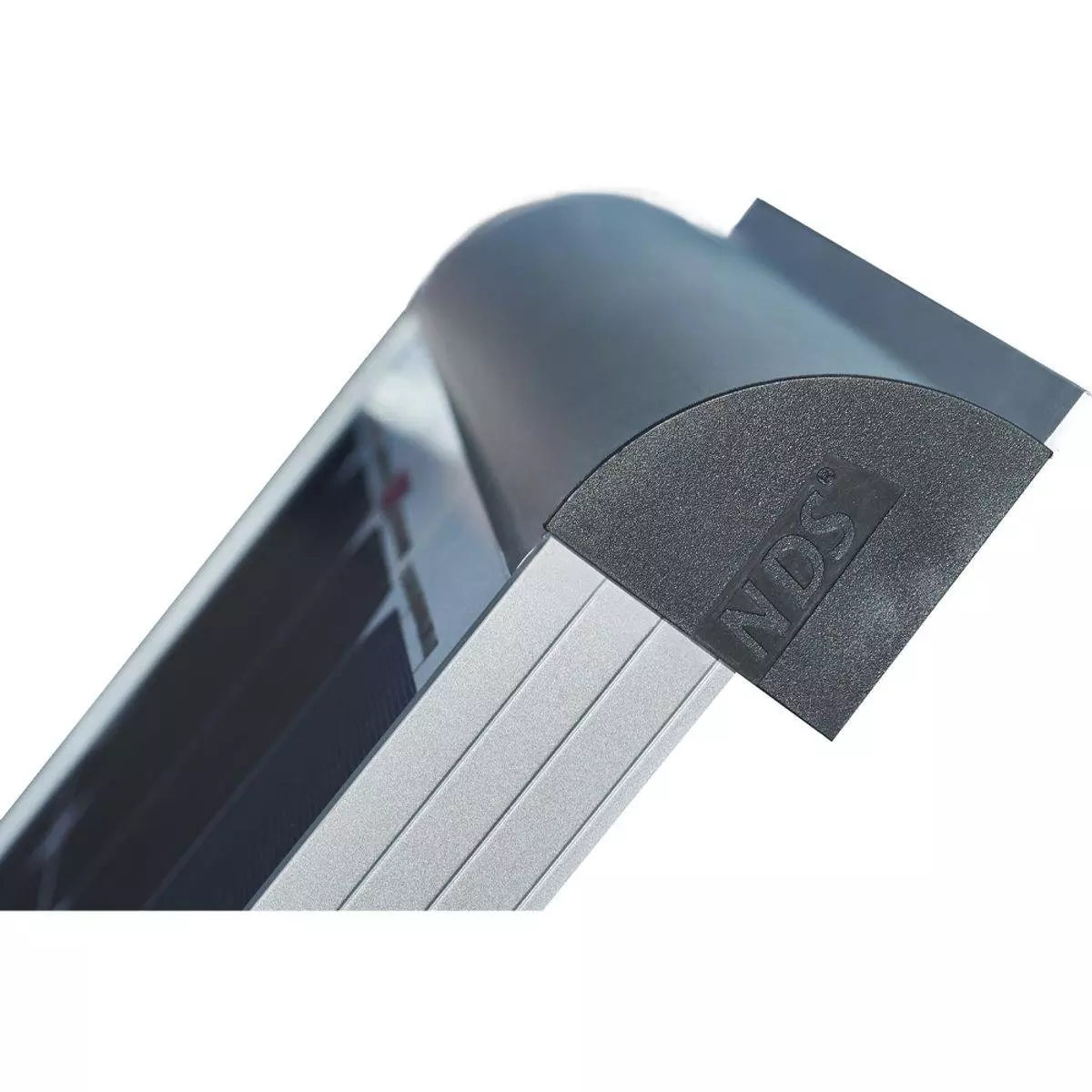

  • Built-in brackets with aerodynamic plastic side covers
  • Aluminium Frame

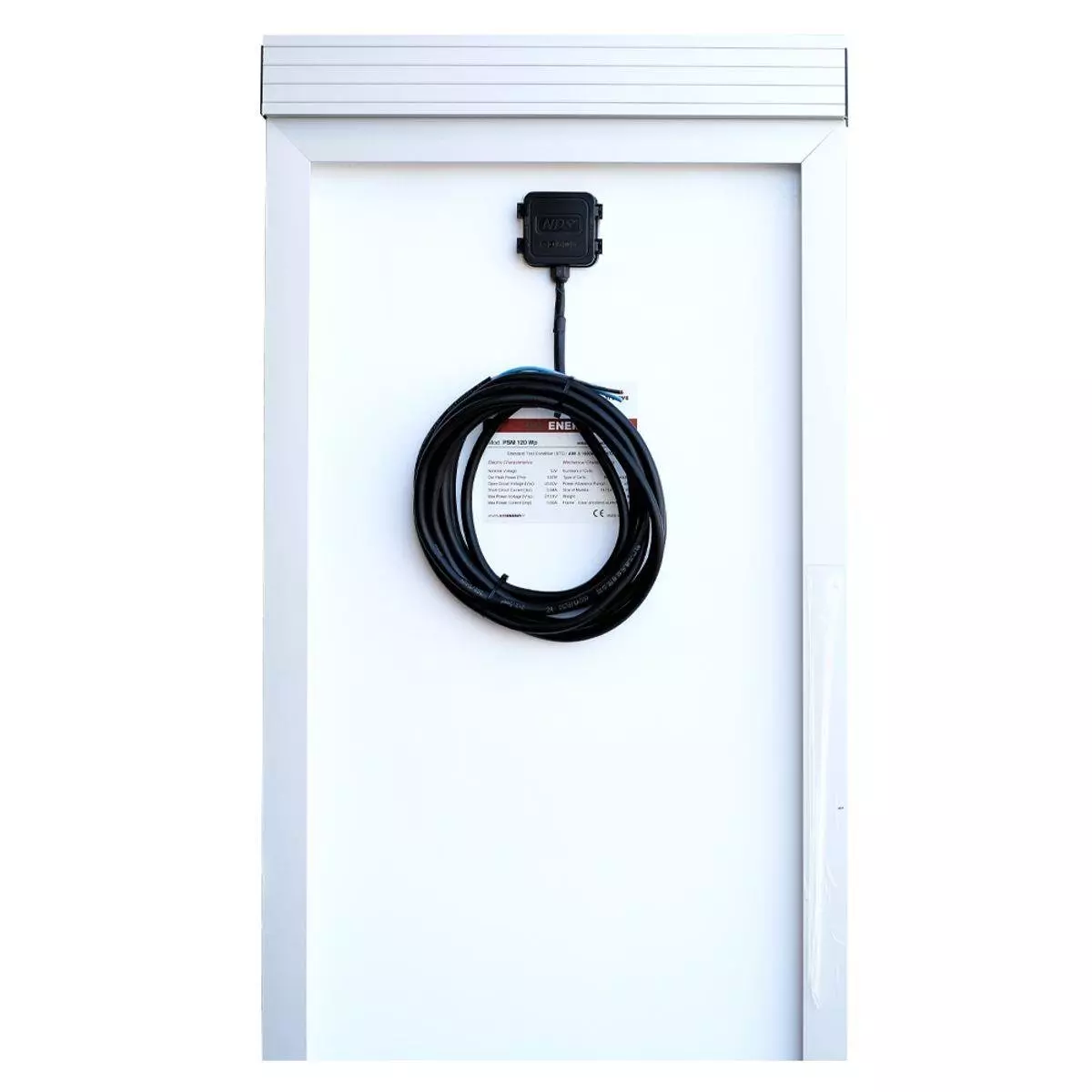

  • 6-meter cable with bipolar connection and all-weather protective outer sheath

  • Brand NDS
  • Voltage 12V DC
  • Height 1320mm
  • Width 530mm
  • Depth 60mm
  • Weight 9.5kg
  • Wattage 100W ±3% maximum
  • Amps Max power current: 5.11A, Short circuit current: 5.5A
