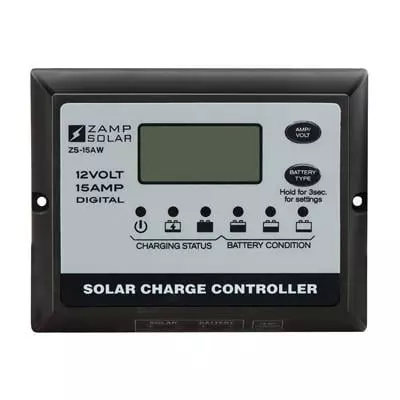

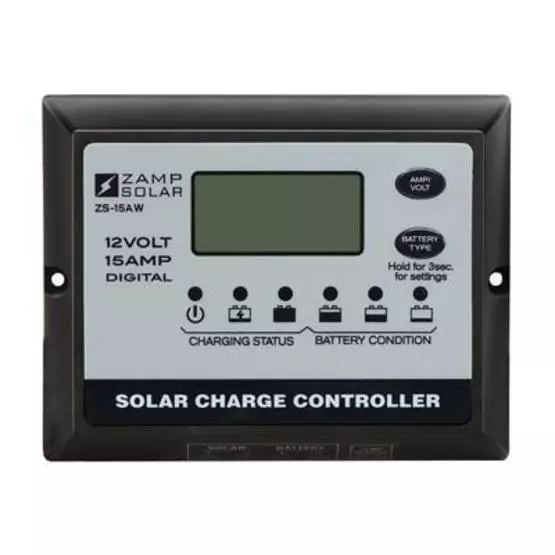

Zamp 15 Amp 5 Stage Digital PWM Controller with Display

£100.01 (inc VAT) £134.99
View delivery optionsView product description
  Product Description
The Zamp Digital Deluxe 5 Stage 15 Amp PWM Solar Charge Controller uses a large digital display showing volts, amps and amp over a period of time while LED lights show charging status and battery condition. Our digital deluxe 15 Amp Solar Charge Controller is designed to do it’s job with out the need for maintenance but it also is feature rich to monitor and indicate system functions. It supports, and is programmable for 4 typical types of deep cycle batteries (WET, GET, AGM and Calcium) as well as lithium batteries (LTO and LifeP04).

Zamp 15 Amp 5 Stage Digital PWM Controller with Display Features


  • 15 amps to continuous charging capacity, enables use of up to 255 watts.
  • Large LCD display - Volts, amps, amp hours and battery pre sets.
  • PWM technology - Charging design for low loss higher efficient charging and longer battery life.
  • 5 Stages of charging for 100% return of capacity and longer battery life. Soft, Bulk, Absorption, Equalization and Float stages.
  • 6 Battery Pre-sets to enable complete and safe charging of a wide range of: Lead Acid (WET)/AGM/Gel Cell/Calcium/LTO and LifePO4 batteries
  • Optional remote battery temperature sensor for temperature compensation to ensure improved charging of batteries that experience wider temperature variations during the year.
  • Mosfet based reverse current blocking for night-time battery discharge prevention.


Specifications
  • System
  • Normal System Voltage: 12 VDC
  • Current Rating: 15 Amp
  • Set Point Accuracy: ±1%
  • Voltage to Operate: 8V
  • Max Self Consumption: 5mA

  • Input
  • Max Open Circuit Voltage of Solar Panel: 25 VDC
  • Max Operating Voltage of Solar Panel: 15-22 VDC
  • Max Short Circuit Current (ISC): 15 Amp

  • Protections
  • High Temp. Shut down: 65 °C
  • Reconnect: 50 °C
  • Over Current Shut Down: 17 Amp

  • Battery Charging
  • Charging Algorithm: PWN
  • Charging Stages: 5
  • Temperature Compensation: -25°C to -50°C

  • Environmental
  • Ambient Temperature: -25°C to -50°C
  • Storage Temperature: -40°C to -85°C
  • Humidity: 100% non-condensing

  • Dimensions (HxWxD) : 4" x 5" x 1"
