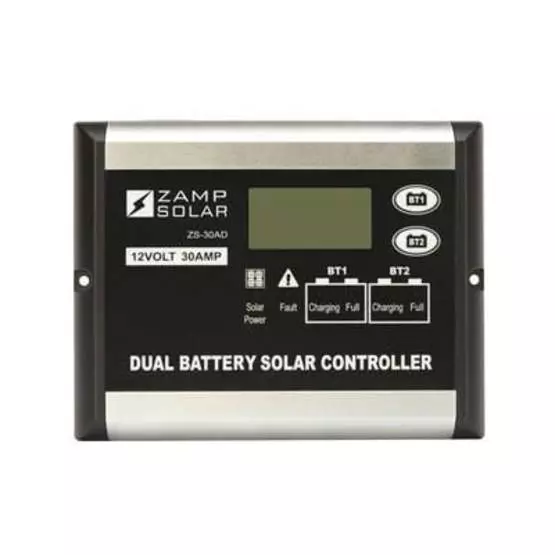

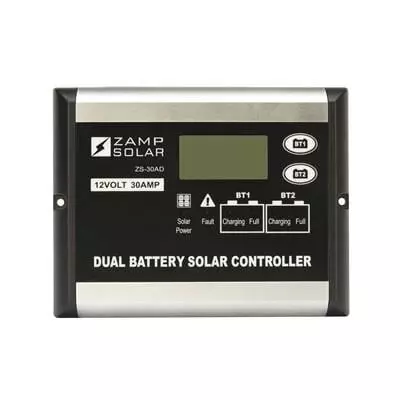

Zamp 30 Amp 5 Stage Dual Digital PWM Controller image 1

Zamp 30 Amp 5 Stage Dual Digital PWM Controller

£148.64 (inc VAT) £198.99
?
View delivery optionsView product description
  Product Description
This versatile Zamp solar charge controller can charge 2 separate battery banks with different charging profiles independently and is programmable to change the charging current to each battery bank. This saves on the cost of two separate controllers or trying to tie two battery banks together over long distances. The 30AD solar charge controller supports, and is programmable for 4 typical types of deep cycle batteries (WET, GET, AGM and Calcium) as well as lithium batteries (LTO and LifeP04).

Zamp 30 Amp 5 Stage Dual Digital PWM Controller Features


  • 30 amps to continuous charging capacity, enables use of up to 500 watts.
  • Works on 12 V systems up to 25 volts.
  • Large LCD backlit display - Volts, amps, amp hours and battery pre sets.
  • PWM technology - Charging design for low loss higher efficient charging and longer battery life.
  • 5 Stages of charging for 100% return of capacity and longer battery life. Soft, Bulk, Absorption, Equalization and Float stages.
  • 6 Battery Pre-sets to enable complete and safe charging of a wide range of: Gel, AGM, Conventional Lead Acid (WET), LifePO4 and LTO (Lithium Titanium oxide ) battery type selection.
  • Optional remote battery temperature sensor for temperature compensation to ensure improved charging of batteries that experience wider temperature variations during the year.
  • Mosfet based reverse current blocking for night-time battery discharge prevention.


Specifications
  • System
  • Normal System Voltage: 12 VDC
  • Current Rating: 30 Amp
  • Set Point Accuracy: ±1%
  • Voltage to Operate: 8V
  • Max Self Consumption: 5mA

  • Input
  • Max Open Circuit Voltage of Solar Panel: 25 VDC
  • Max Operating Voltage of Solar Panel: 15-22 VDC
  • Max Short Circuit Current (ISC): 30 Amp

  • Protections
  • High Temp. Shut down: 65 °C
  • Reconnect: 50 °C
  • Over Current Shut Down: 35 Amp

  • Battery Charging
  • Charging Algorithm: PWN
  • Charging Stages: 5
  • Temperature Compensation: -25°C to -50°C

  • Environmental
  • Ambient Temperature: -25°C to -50°C
  • Storage Temperature: -40°C to -80°C
  • Humidity: 100% non-condensing

  • Dimensions (HxWxD) : 4.75" x 6.25" x 1.5"
