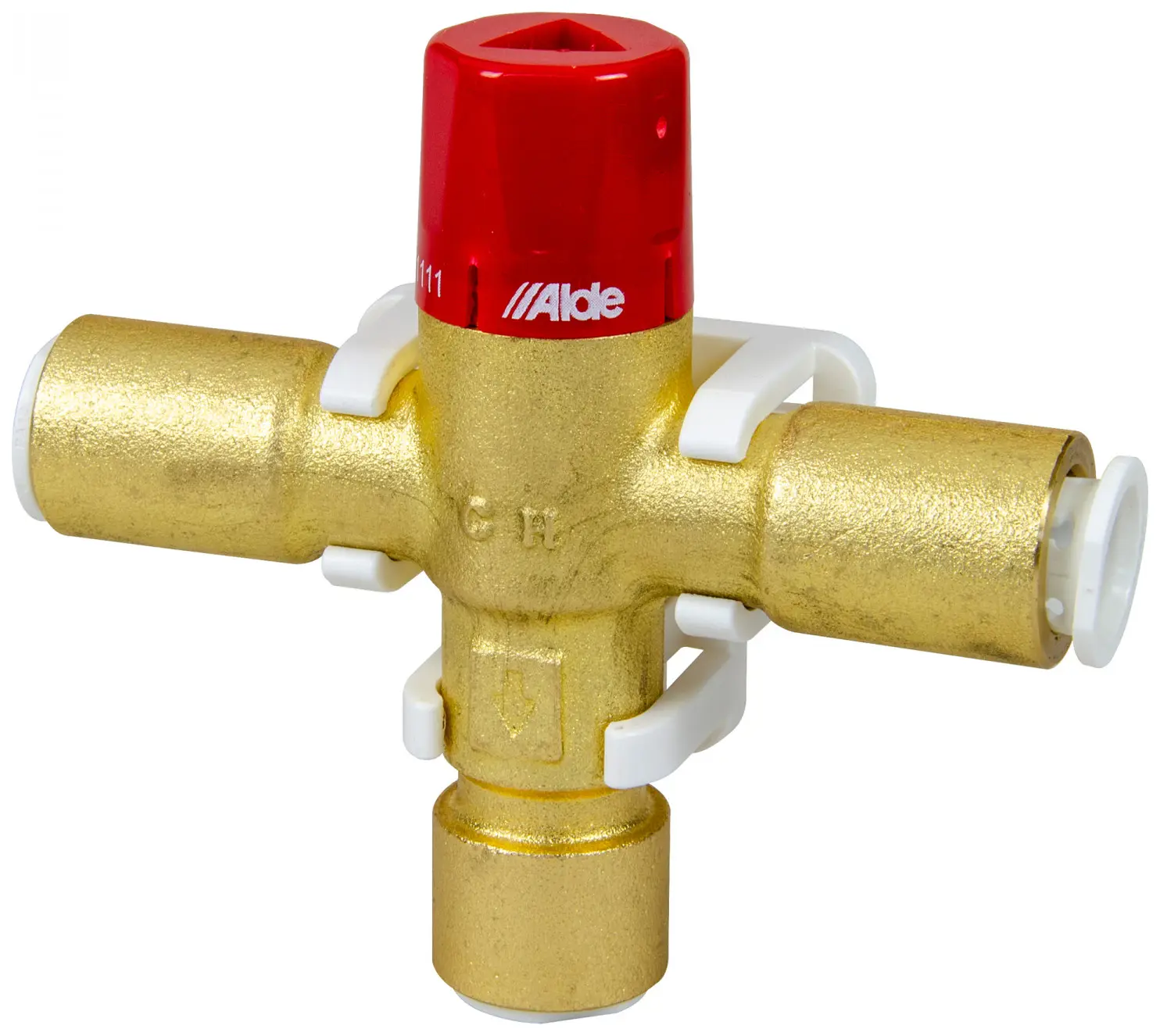

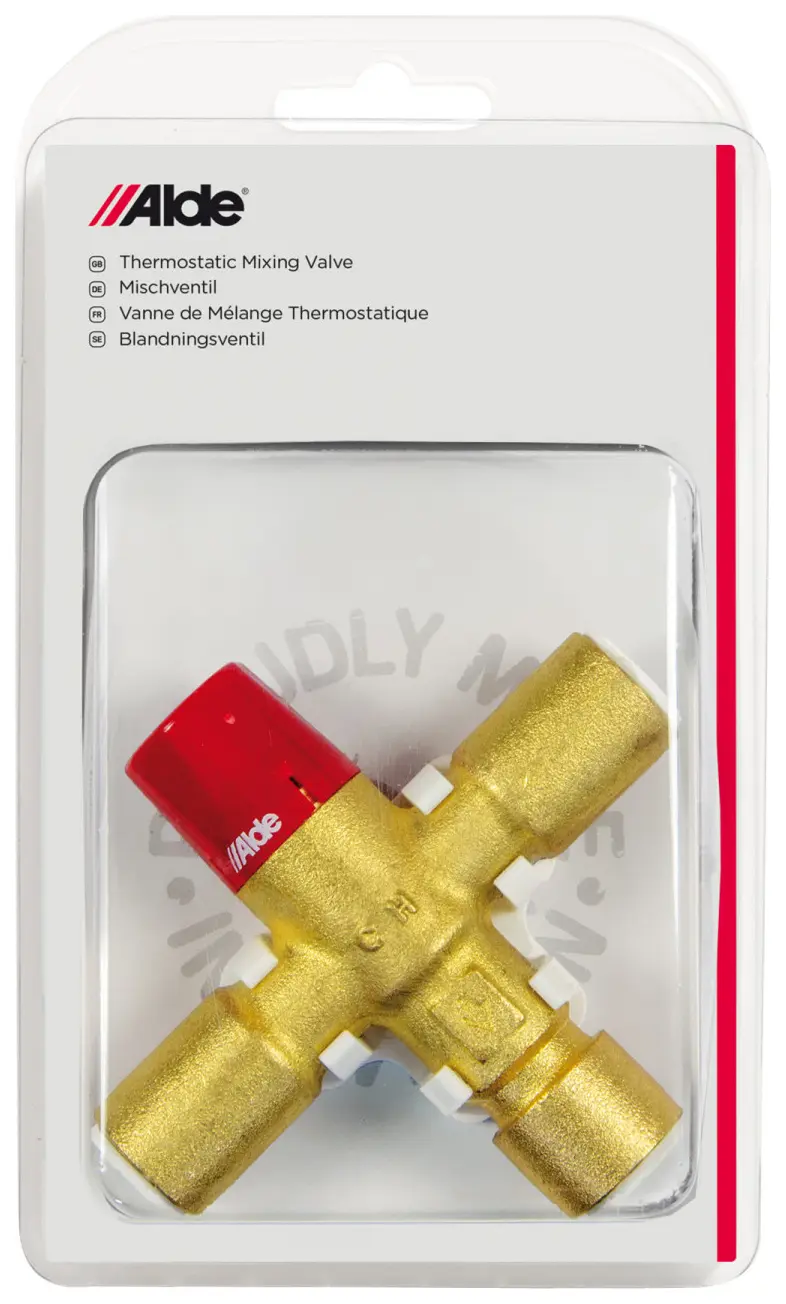

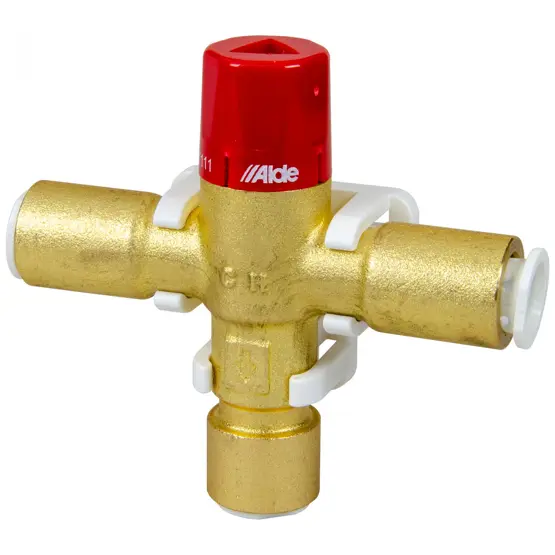

Alde TMV3 Thermostatic Mixer Valve

£109.99 (inc VAT) £148.99
?
View delivery optionsView product description
  Product Description
Thermostatic Mixing Valves blend hot and cold water quickly to ensure comfortable water temperature. This saves hot water and reduces the risk of accidental injuries and burns. The Alde TMV3 features cold water cut off, should the cold supply run out and filters to protect the valve. Using the latest advanced valve design and production techniques, the Alde TMV3 can function at flow rates as low as 1 lpm. Comes with bracket and uses 12mm push fit for simple installation.

The Thermostatic Mixing Valve (TMV) blends hot and cold water to ensure safe and comfortable water temperature, reducing the risk of accidental injuries and burns.

Utilising the market leading Speedfit connections makes the valve fast and easy to install and gives the option of quick demounting for service or replacement.

Ultra-compact and lightweight, it is ideal for use in tight spaces. The valve complies with all applicable UK and European performance standards. The range is WRAS approved and holds TMV2 and TMV3 certificates.

Using the latest advanced valve design and production techniques, the TMV can function at flow rates as low as 1 lpm, the lowest by far in the industry, and is also resistant to the adherence of scale and other system contaminants to provide increased valve longevity.

Alde TMV3 Thermostatic Mixer Valve Features
  • Compliant with BSEN1111, ASSE 1070, TMV2, TMV3
  • Speedfit connections mean fast and easy installation and easy demountability.
  • The 15mm valves work with flows as low as 1 lpm making it ideal for water saving taps.
  • Compact design means the valve is less obtrusive than others in the market when installed on pedestal or wall hung basins
  • 2-in-1 options include check valves as well as strainers that protect both the check valves and the main valve
  • WRAS approved
  • NSF61 Compliant

Specifications
  • Factory temperature setting : 48°C
  • Working temperature range : 38°C-48°C
  • Maximum adjustable temperature range : 30°C-48°C
  • Temperature, hot supply : 52°C-65°C (max 85°C)
  • Temperature, cold supply : 5°C-25°C
  • Minimum hot to mix differential temperature : 10°C
  • Temperature stability : +/- 2°C
  • Maximum static pressure : 10.0 bar
  • Maximum working pressure : 5.0 bar
  • Minimum working pressure : 1 bar
  • Maximum pressure inlet differential : 10:1
  • Minimum flow rate : 15 mm 1 L/min


SAFETY NOTICE:

All products and parts must be installed by engineers who hold a valid certificate of competence. The installation must comply with the manufacturers instructions and local regulations. We cannot be held responsible if these instructions are not followed.

Please note we are a camping, caravan and motorhome company and NO gas product that we sell is suitable for mains (domestic) gas supply.
