Fiamma Extension Vent

Name: Fiamma Extension Vent
Brand: Fiamma
SKU: 292306
Price: 13.99 GBP
Availability: InStock

Product Ref: 292306
Fiamma Code : 98683W116

£13.99(inc VAT) £18.99Product Ref: 292306
Fiamma Code : 98683W116

View delivery optionsView product description

Delivery from £4.99
Loading stock details...

Seen this product cheaper? We will do our best to match it!

Click Here

Product Description

The Fiamma Vent Extension Kit contains two extended control knobs and one metal extension adapter designed to accommodate thicker roof installations for Fiamma roof vents. This white-finished kit bridges the gap when standard Fiamma vents won't reach through roofs measuring between 45mm and 85mm thick. The extension components connect between the internal and external frames of compatible vents, extending the winder mechanism so it reaches through to the interior of your caravan, motorhome, or campervan. Panel van conversions, coachbuilt motorhomes with insulated roofs, and vintage caravans with laminated roof construction commonly require this extension to complete proper vent installation.

Which Fiamma vents are compatible with this extension kit?

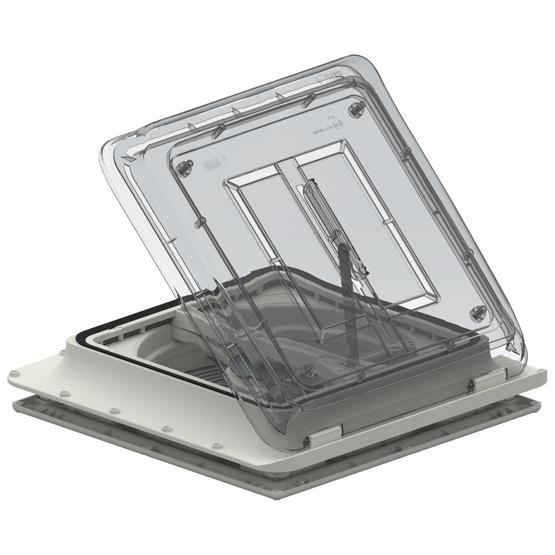

This extension kit fits Fiamma Vent 40 models (400 x 400mm), Turbo Vent 40 models (400 x 400mm), Vent 28 models (280 x 280mm), and Turbo Vent 28 models (280 x 280mm) when roof thickness exceeds the standard 30-50mm range up to a maximum of 85mm. The metal adapter sits between the vent frames while the extended knobs replace standard controls to provide sufficient length through thicker roofs.

Without this extension kit, installers often face incomplete installations where the winder handle doesn't protrude far enough through the interior ceiling to operate the vent properly. Professional converters fitting Fiamma vents into panel vans frequently need this kit because timber framing and insulation layers create roof depths of 50-80mm. The extension allows you to maintain proper vent functionality whilst accommodating modern insulation standards and structural requirements. Self-builders working with VW Crafters, Ford Transits, Mercedes Sprinters, and similar commercial vehicles with thick roof constructions find this kit solves the installation challenges that come with deeper roof assemblies.

Frequently Asked Questions

How do I know if I need the Fiamma Vent Extension Kit?

You need this extension kit if your roof measures between 45mm and 85mm thick. Standard Fiamma vents accommodate roofs between 30mm and 50mm without extensions. Measure your total roof thickness including the exterior skin, any timber framing, insulation layers, and interior ceiling material. Panel van conversions typically require this kit because wooden support frames and insulation create depths of 50-80mm. If you're installing a Fiamma vent and the winder handle doesn't protrude far enough through your interior ceiling to operate properly, this extension kit provides the additional length needed.

Which Fiamma vent models does this extension kit fit?

This extension kit works with Fiamma Vent 40 (400 x 400mm), Fiamma Turbo Vent 40 (400 x 400mm), Fiamma Vent 28 (280 x 280mm), and Fiamma Turbo Vent 28 (280 x 280mm). The kit is not compatible with Fiamma Vent 28F models or the larger Vent 50 models. Check your existing vent's model number before ordering. Compatible models include product codes beginning with 03624F02, 03623F01, 03623G01, 04329B02, and 04328B01.

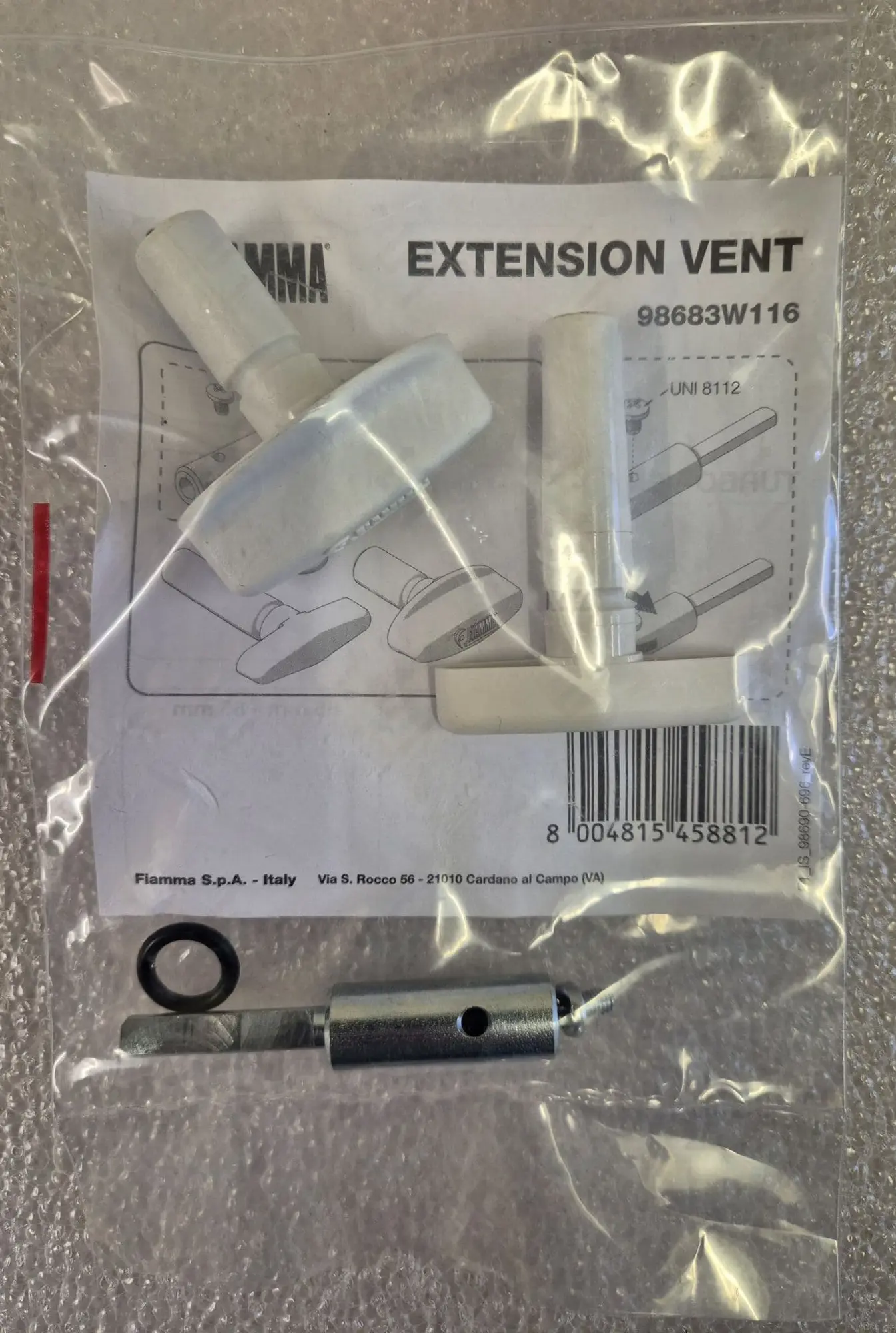

What components are included in the extension kit?

The kit contains two extended white control knobs and one metal extension adapter. The metal adapter sits between the internal and external vent frames, bridging the gap created by thicker roof construction. The extended control knobs replace the standard shorter knobs, providing additional length so the winder mechanism reaches through to your vehicle's interior. All components come in white finish to match standard Fiamma vent colours.

Can I install the extension kit myself or do I need professional fitting?

Competent DIY installers can fit this extension kit following the instructions included with your Fiamma vent. The installation involves placing the metal extension adapter between the vent frames during assembly and replacing the standard control knobs with the extended versions. You'll need basic hand tools. If you're already comfortable cutting a roof aperture and installing a roof vent with proper sealant application, adding the extension components adds minimal complexity. First-time installers might prefer professional fitting to ensure watertight installation, particularly for the critical roof seal.

Will the extension kit affect the operation or warranty of my Fiamma vent?

This is a genuine Fiamma accessory specifically designed for thicker roof installations, so using it won't affect your vent warranty when fitted correctly according to manufacturer instructions. The extension doesn't alter the vent's opening mechanism, ventilation performance, or weatherproofing capabilities. The winder handle operates exactly as it would without the extension, just with additional reach through your thicker roof structure. Fiamma manufactures these extension kits precisely because they recognise many modern vehicle conversions require accommodation for increased roof depths.

What's the maximum roof thickness this extension kit can accommodate?

The Fiamma Vent Extension Kit accommodates roof thicknesses up to 85mm maximum. This measurement represents the total depth from the exterior roof surface to the interior ceiling surface. If your roof exceeds 85mm thick, this extension kit won't provide sufficient reach and you'll need alternative installation methods such as custom-made extensions or reconsidering your roof construction depth. Most panel van conversions with standard insulation and framing fall comfortably within the 45-85mm range this kit covers.

Do I need separate extension kits for multiple vents?

Yes, each Fiamma vent requires its own extension kit. If you're installing two or three roof vents in your conversion, you'll need to purchase a separate extension kit for each vent location. Each kit contains the components needed for one vent installation only. Buying multiple kits upfront saves time during your build, particularly if you're ordering other parts together. Many converters installing front and rear vents purchase two extension kits at once to avoid installation delays.

EAN-13 : 8004815458812
