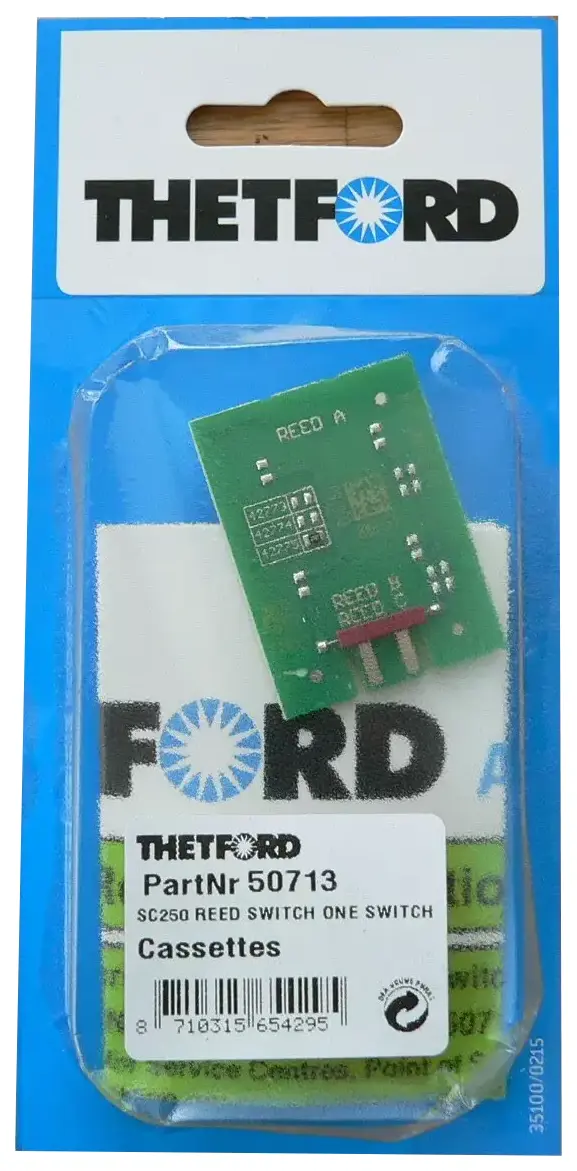

Thetford Reed switch one for the Thetford C 250S/CS/CWE

Name: Thetford Reed switch one for the Thetford C 250S/CS/CWE
Brand: Thetford
SKU: 237061
Price: 13.23 GBP
Availability: InStock
Rating: 4.92 (13 reviews)

Product Ref: 237061
Thetford Code : 50713

£13.23(inc VAT) £15.99Product Ref: 237061
Thetford Code : 50713

(4.92/5) Read Reviews - Click Here (13 reviews)

View delivery optionsView product description

Delivery from £4.99
Loading stock details...

Product Description

Reed switch one switch for the Thetford C 250S/CS/CWE. Thetford part number 50713.

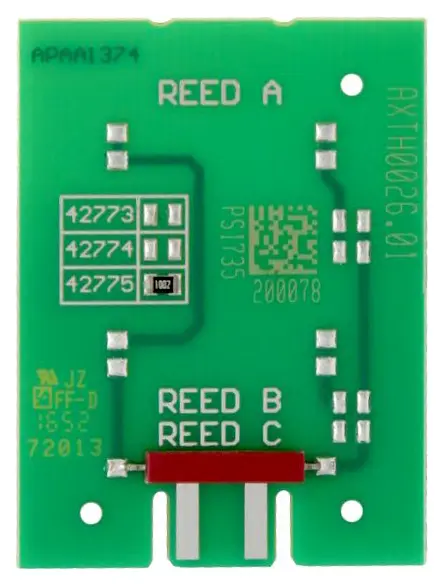

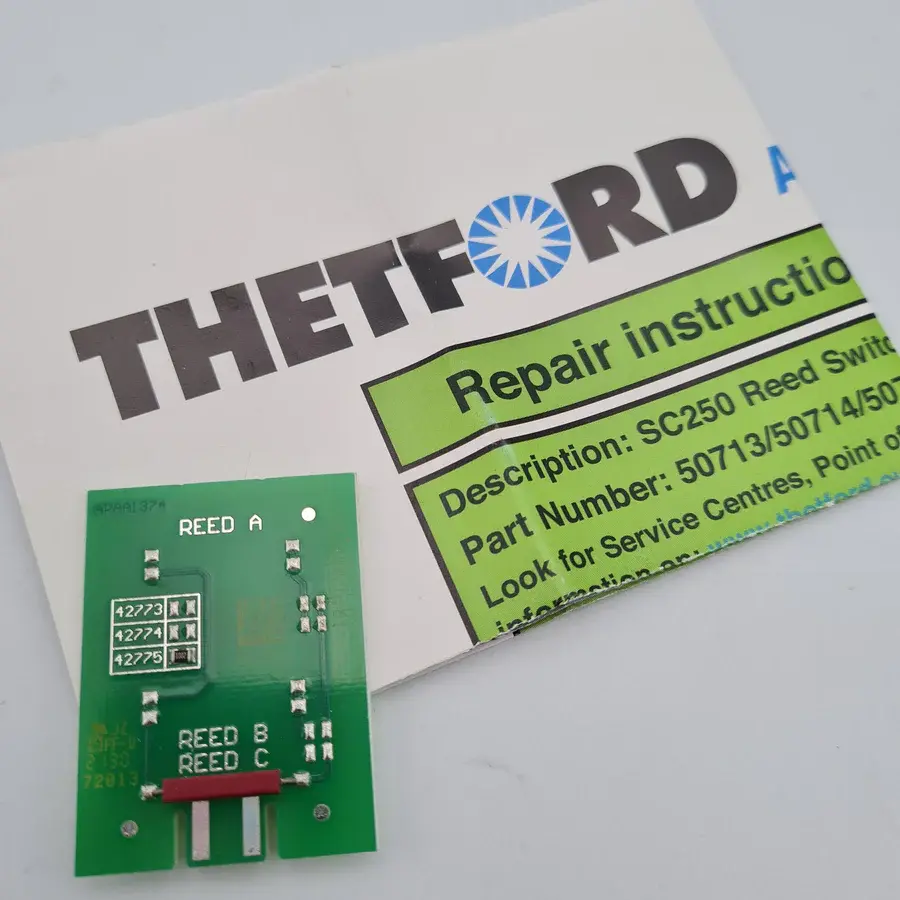

This is a small circuit board incorporating the reed switch that senses the waste tank level. This is the basic version - described as the "one switch" model.

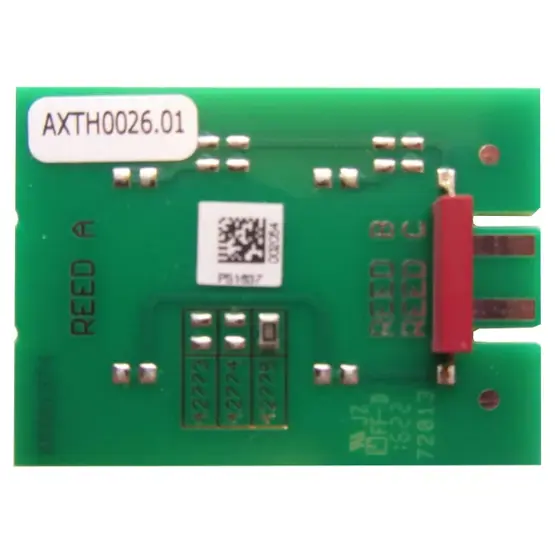

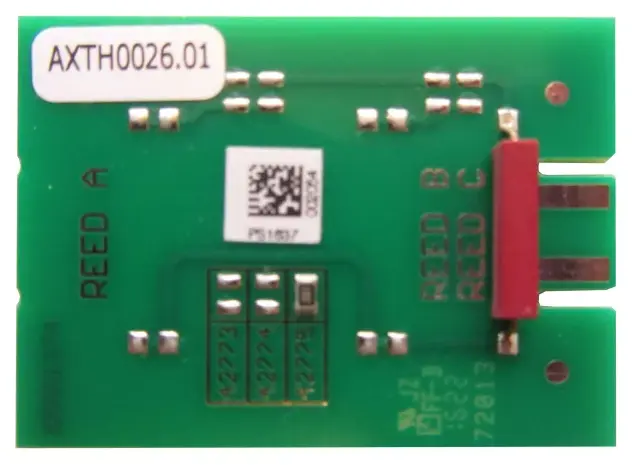

This has one reed switch fitted (the red bar component) and a board part number of 50569. The board style may be one of two types. One type has the number on a small beige square near the contacts and the other style has the number by a small soldered-on component.

Dimensions: 30mm x 40mm

EAN-13 : 8710315654295

3 FAQs on the Thetford Reed switch one for the Thetford C 250S/CS/CWE

My Thetford C250 CWE toilet is not flushing - I have discovered that the reed switch PCB is damaged, could this stop operation ? Also can you supply spare part ? numbers on PCB are 3509 or 50569 or TH171 94V-0 - I can provide photo if required

Yes, this could prevent flushing. The part required is either our ref. 237061 or 237062. Please look at the pictures to decide.

The tank full light on the Thetfrord C-250 Cassette Toilet fitted in my 2009 Lunar Lexon SB now stays on permanently even when the cassette is removed. How do I cure this problem. (When the caravan is not in use I remove the fuse, but once I am using the caravan I have to leave it in and put up with the Red Light.) Incidentally the "Full" indication has never been a reliable indication of a Full cassette. Please advise me how I can cure the problem.

You appear to have a problem with the reed switch that senses fluid level. This is probably our part 137061 and is situated at the rear of the cassette compartment.

my cassette toilet working perfectly, light started to flash as usual when toilet required emptying, emptied & put back in place, light would not go out then electric flush stop working. Model No-C-250 CWE, No 5064462 Code 20080424 can you help, thank you, David

It would appear that you have a problem with the reed switch that senses the fluid level. This is probably our part 137061 and is fitted at the rear of the cassette compartment.

Reviews

13 Customer Reviews on Thetford Reed switch one for the Thetford C 250S/CS/CWE

THETFORD REED SWITCH ONE FOR THE THETFORD C 250S/CS/CWE

by Miss Nolan (31 May 2024)

(5/5)

Exactly what was ordered

What’s Not To Like?

by Mr Breeze (07 Nov 2021)

(5/5)

Easy to find what I needed, good price, quick delivery. Problem solved. I will certainly use Leisure Direct again.

Switch

by Peter Laband (22 Sep 2021)

(5/5)

Replacement for printed circuit board which developed a fault.

Perfect

by Mr García Primo (16 Sep 2020)

(5/5)

it,s not easy find some elements, it´s nice know that is present on leisureshop webshop

Flush Failure

by Steve John (13 Apr 2019)

(5/5)

I changed this switch as a just in case when the main switch failed. Toilet flush up and working now. Just hope it lasts, Flush has been no use for 9 years so cannot complain. Easy to change.

Caravan Toilet Circuit Board.

by Mr Maughan (25 Jul 2017)

(5/5)

Replacement easy to fit instructions supplied. Solved the fault.

Reed Switch

by John McCulloch (23 Mar 2016)

(5/5)

As usual excellent service from Leisureshop Direct.Bought the Reed Switch from them because I have never known them not have a part that I needed.Service is always quick. Why can the caravan manufacturers not be as quick?

Thetford Reed Swt=itch

by bigrog (20 Mar 2015)

(5/5)

excellent product at a good price and excellent service

Reed Switch One Switch For The Thetford C 250S/CS/CWE. Thetford Part Number 50713

by Mr Harris (03 Oct 2013)

(5/5)

Arrived next day, fitted and working within minutes.

Thetford C 250S/CS/CWE REED SWITCH

by Mr FRANCIS (16 Apr 2013)

(5/5)

Very quick delivery, just what was needed. I bought 2 just incase I broke it while fixing it in the holder, but it went in a treat. So I have a spare. Compared to the prices that other sites are charging the pricewas very cheap. Will order from here again.

Thetford Reed Switch

by Mr George (28 Sep 2012)

(5/5)

Replacement part did exactly what it was supposed to do and the toilet is now back in action. Very good value.

Read Card

by Andy (16 Aug 2012)

(5/5)

Great item easy to fit now i can tell when the toilet is full

Thetford Reed Switch

by Mr Woodcock (16 Jul 2012)

(4/5)

Replaced switch as full light remained on permanently, light is no longer on but haven't filled loo up yet so cannot tell if the light comes on when it should.
